Basler DECS-250 - Page 178

21-10 9440300990
BESTlogic™Plus DECS-250

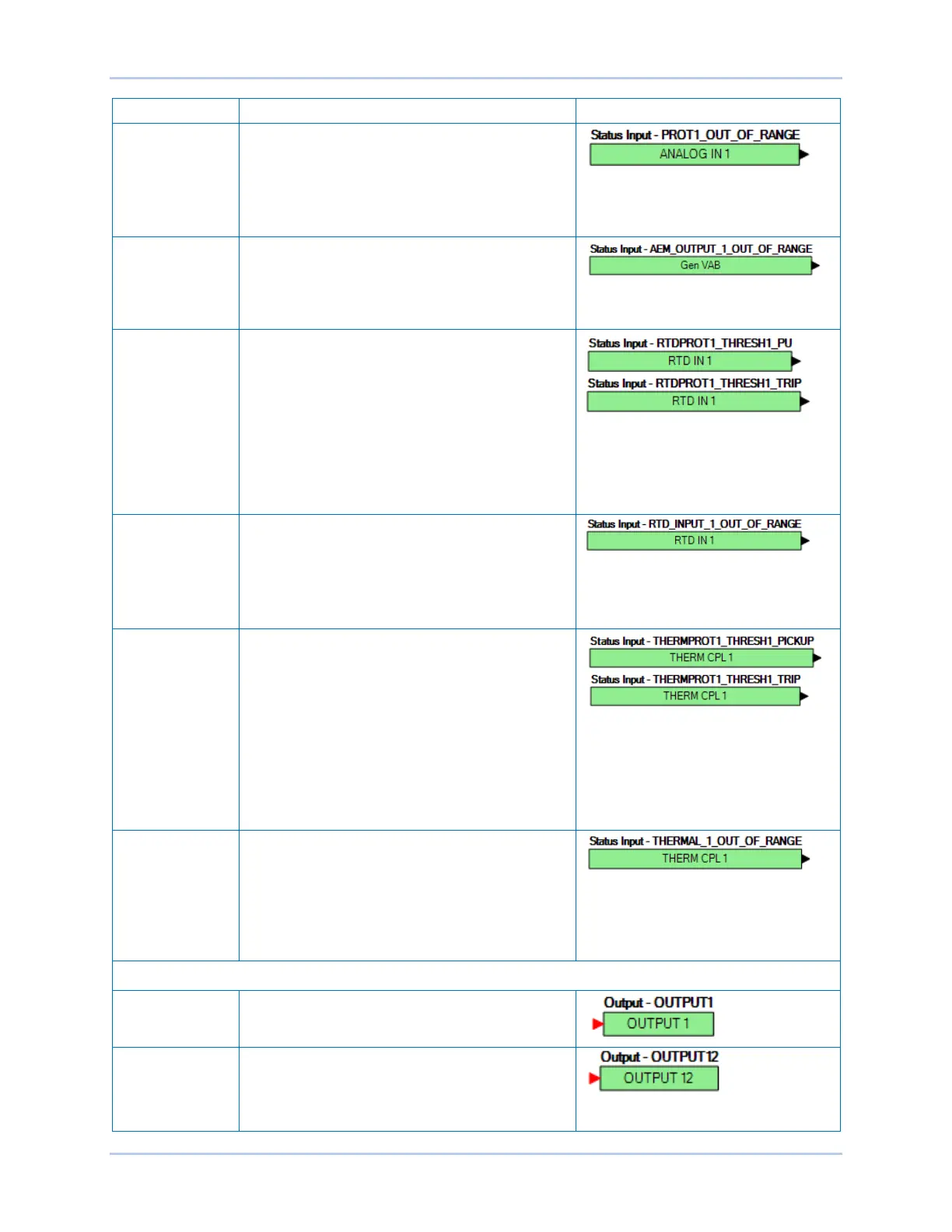

Name Description Symbol
Analog
Expansion
Module
Remote Analog
Inputs, Out of
Range 1-8
Each Remote Analog Input has one Out of Range
Block. True when parameters exceed out of range
threshold. This function alerts the user of an open
or damaged analog input wire.
Analog
Expansion
Module
Remote Analog
Outputs 1-4
True when the analog output connection is open.
Analog
Expansion
Module
Remote RTD
Inputs 1-8
There are four thresholds for each of the eight
Remote RTD Input blocks. Each threshold has a
separate logic block for the pickup and the trip.
Remote RTD Input #1 with its Threshold #1 Pickup
and Trip blocks is shown to the right. For more
details on configuring the Remote RTD Inputs, see
the Analog Expansion Module chapter in this
manual. The pickup block is true when the
threshold is exceeded. The trip block is true when
the corresponding pickup block threshold is
exceeded for the duration of the time delay.
Analog
Expansion
Module
Remote RTD
Inputs, Out of
Range 1-8
Each Remote RTD Input has one Out of Range
Block. True when parameters exceed out of range
threshold. This function alerts the user of an open
or damaged analog input wire.
Analog
Expansion
Module
Remote
Thermocouple
Inputs 1-2
There are four thresholds for both of the Remote
Thermocouple Input blocks. Each threshold has a
separate logic block for the pickup and the trip.
Remote Thermocouple Input #1 with its Threshold
#1 Pickup and Trip blocks is shown to the right. For
more details on configuring the Remote
Thermocouple Inputs, see the Analog Expansion
Module chapter in this manual. The pickup block is
true when the threshold is exceeded. The trip block
is true when the corresponding pickup block
threshold is exceeded for the duration of the time
delay.
Analog
Expansion
Module
Remote
Thermocouple
Inputs, Out of
Range 1-2
Each Remote Thermocouple Input has one Out of
Range Block. True when parameters exceed out of
range threshold. This function alerts the user of an
open or damaged analog input wire.
Output Objects
Physical Outputs
OUT1 - OUT11
Physical Outputs 1 through 11.
Remote Outputs
OUT12 - OUT35
Remote Outputs 12 through 35.
(Available when an optional CEM-2020 is
connected.)
