12-12 9440300990
Grid Code DECS-250

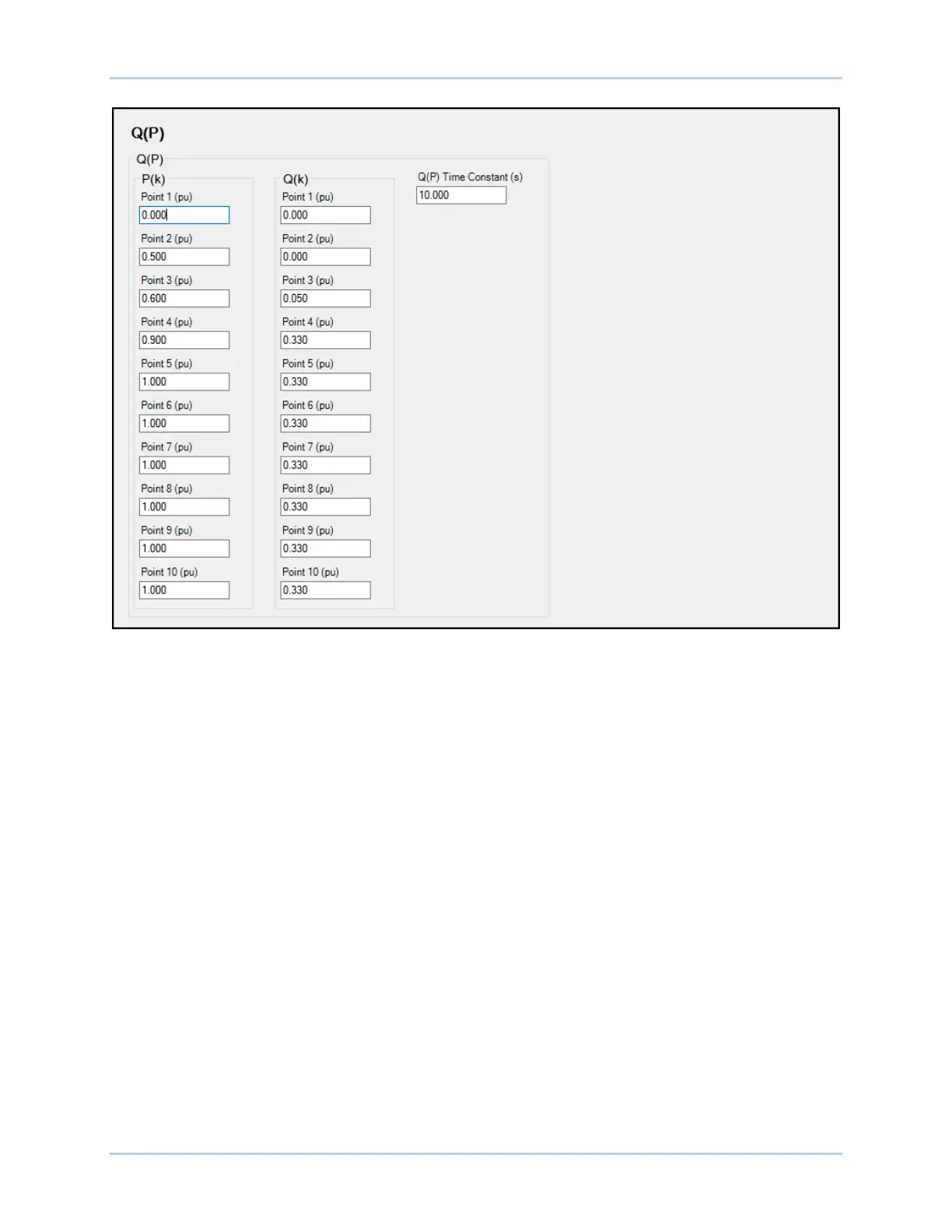

Figure 12-13. Reactive Power Control, Q(P) Screen
Reactive Power Control with Fixed Q and Voltage Limits – Q(Voltage Limit)
BESTCOMSPlus Navigation Path: Settings Explorer, Grid Code Settings, Reactive Power Control,
Q(Voltage Limit)
HMI Navigation Path: Settings, Operating Settings, Grid Code Settings, Reactive Power Control, Q
Limited Settings
In Q(Voltage Limit) mode, the reactive power output of the generating unit is a constant. However, it is
required that the voltage and reactive power stay within the limits of the voltage dependent provision of
reactive power as illustrated in Figure 12-14. This is accomplished by imposing voltage dependent limits
on the reactive power output that can be achieved.
