Bauer 24278E-B - Saw Blade Removal

Page 10 For technical questions, please call 1-888-866-5797. 70813
SAFETY OPERATION MAINTENANCESETUP
Exhaust Port Install
1. Connect a dust collection system to Dust Port
and secure with hose clamp (not included).
Miter Gauge
1. Insert Miter Gauge into desired
guide grooves of Work Table.

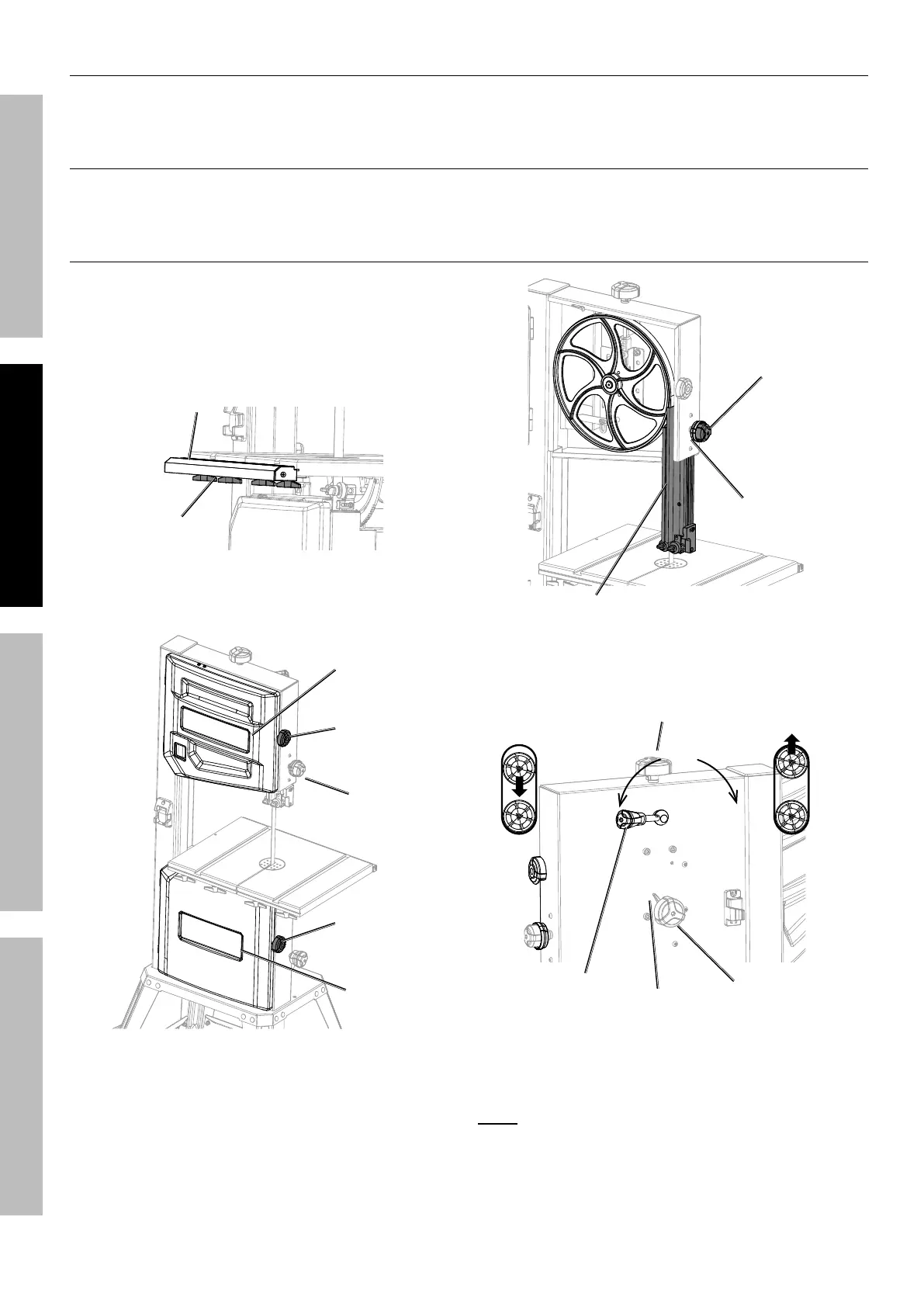

Saw Blade Removal
1. Disconnect Band Saw from power source.
2. Loosen four Lock Handles under Work Table.
3. Remove Guide Rail.
Lock
Handles
Guide
Rail
4. Rotate upper and lower Door Lock Knobs clockwise.
5. Open upper and lower Wheel Covers.
Upper
Wheel Cover
Lower
Wheel
Cover
Upper
Door
Lock
Knob
Blade
Guide
Lock
Handle
Lower
Door Lock
Knob
6. Rotate Blade Guide Lock Handle counterclockwise.
7. Rotate Blade Guide Adjustment Handle
counterclockwise to position Blade
Guide Assembly to lowest position.
8. Rotate Blade Guide Lock Handle
clockwise to tighten.
Blade Guide
Adjustment
Handle
Blade Guide
Lock Handle
Blade Guide
Assembly
9. Rotate Blade Tension Release Lever
counterclockwise to release blade tension.
To release To tighten
Blade Tension
Release Lever
Blade Tracking
Lock Handle
Blade Tracking
Adjustment
Handle
Blade Tensioning Handle
Figure A
10. Carefully remove Saw Blade.
Note: Saw teeth must be oriented downward
and facing toward Guide Rail.
11. Reverse procedure to install new saw blade.
