Stand Assembly
Note: Stand Legs (178) with rubber foot
located on side of the switch on column.
Note: Stand Legs mount on inside of Saw Base.
Note: Do not fully tighten fasteners until
Stand assembly is complete.

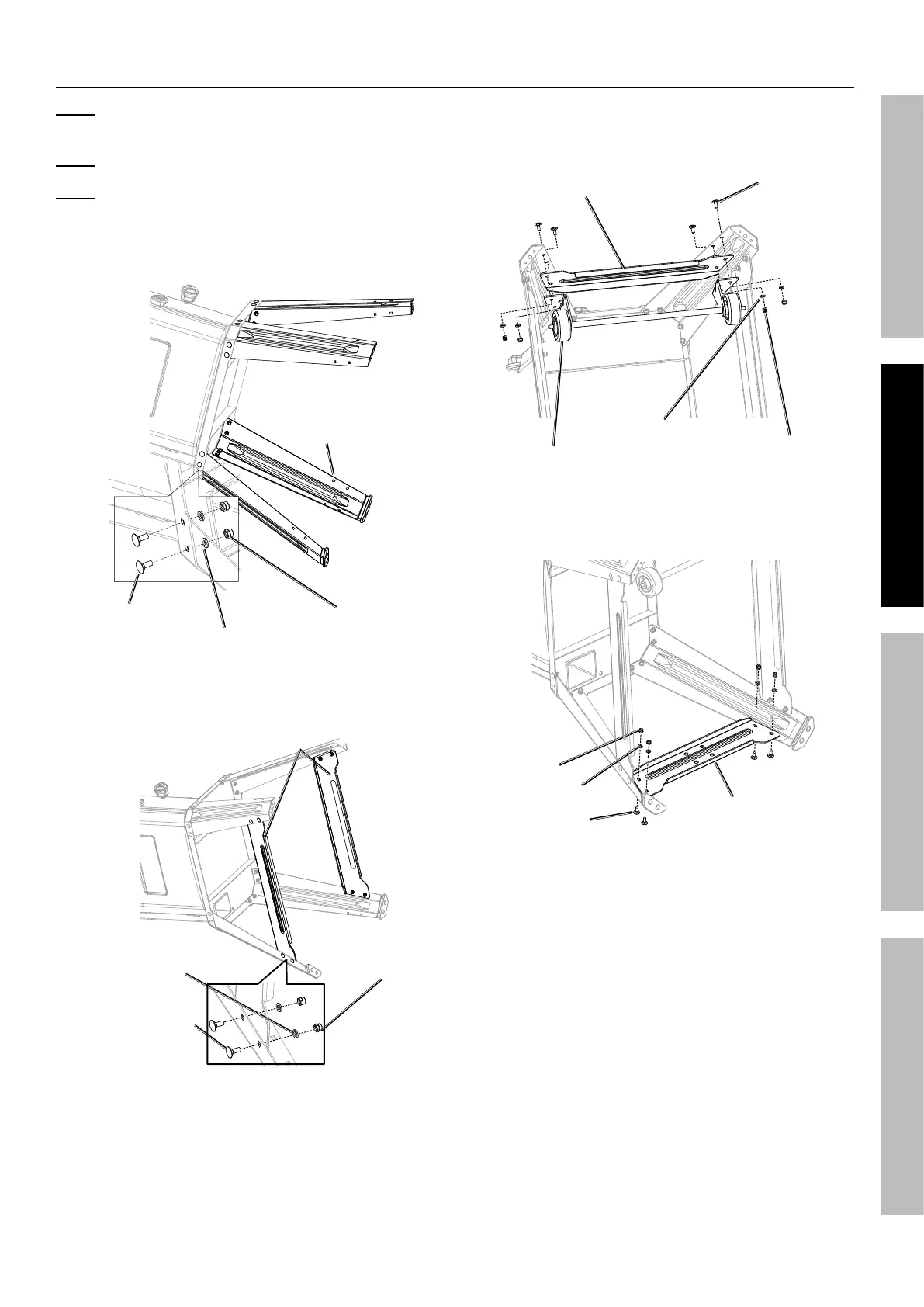

1. Attach Stand Legs (178) to Saw Base, using
Bolts (176), Washers (10) and Nuts (63).
Stand Leg (178)
Bolt (176)
Washer (10)
Nut (63)
2. Attach two Long Braces (177) to inside of Stand
Legs, using Bolts (176), Washers (10) and Nuts (63).
Long Brace (177)
Bolt (176)
Washer (10)
Nut (63)
3. Attach Short Brace (B) (194) and Roller Wheel
Assembly (187) onto right Stand Legs using
Bolts (195), Washers (10), and Nuts (63).
Bolt (195)
Short Brace (B) (194)
Roller Wheel
Assembly (187)
Washer (10)
Nut (63)
4. Attach Short Brace (A) (194) onto left Stand
Legs,using Bolts (179), Washers (10) and Nuts (63).
Short Brace
(A) (194)
Bolt (179)
Washer (10)
Nut (63)
