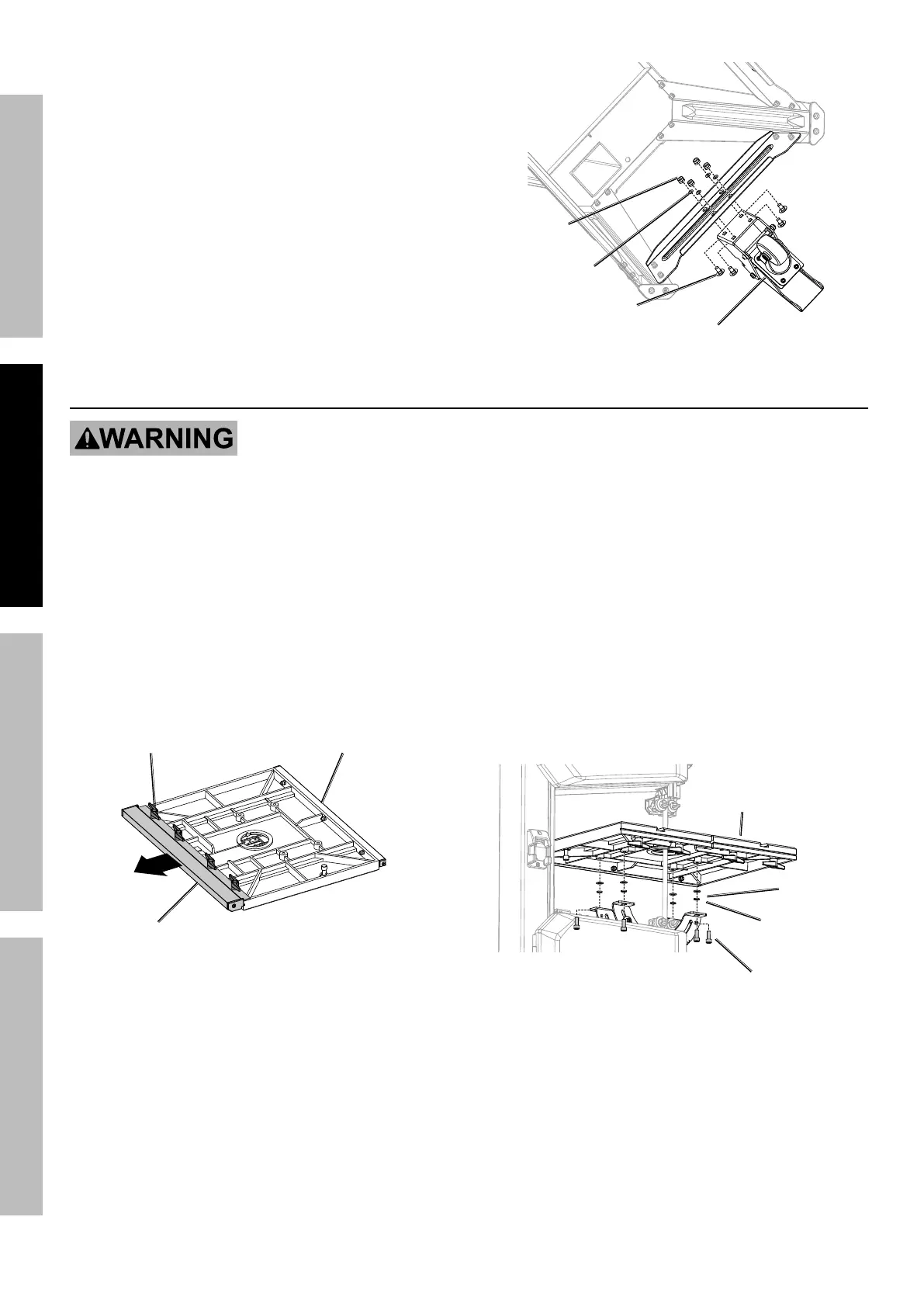

5. Attach Foot Pedal Brake Assembly (192)
onto Short Brace (A), using Bolts (3),
Washers (10) and Nuts (63).
6. Place Band Saw upright.
7. Tighten all Fasteners on Band
Saw stand and assembly.
8. Raise Brake Foot Pedal to stabilize the saw
before proceeding with further assembly.
Bolt (3)
Foot Pedal Brake Assembly (192)
Nut (63)
Washer (10)
Work Table Assembly
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off and unplug the tool from its electrical
outlet before performing any procedure in this section.
TO PREVENT SERIOUS INJURY:
DO NOT OPERATE WITH ANY GUARD DISABLED, DAMAGED, OR REMOVED.
TO PREVENT INJURY:
Wear heavy-duty work gloves and ANSI-approved safety goggles whenever
handling blade. DO NOT WEAR GLOVES WHILE SAWING.
1. Loosen four Lock Handle (116)
under Work Table (68).
2. Remove Guide Rail (71).
Lock Handle (116)
Guide Rail (71)
Work Table (68)
3. Place Work Table onto Band Saw while
carefully guiding blade through slot.
4. Place Screw (110) Through Band Saw.
5. Place Spring Washer (111) and
Washer (112) onto Screw.
6. Insert Screw end into Work Table.
7. Tighten Screw.
Screw (110)
Washer
(112)
Spring
Washer (111)
Work Table (68)
8. Replace Guide Rail onto Work Table
and Tighten Lock Handle.
To Next Page
