8. Rotate Blade Guard Adjustment
Handle to adjust height of blade guide
assembly to 1/8″ from workpiece.
9. Tighten Blade Guard Lock Knob.
Lower Blade Guide

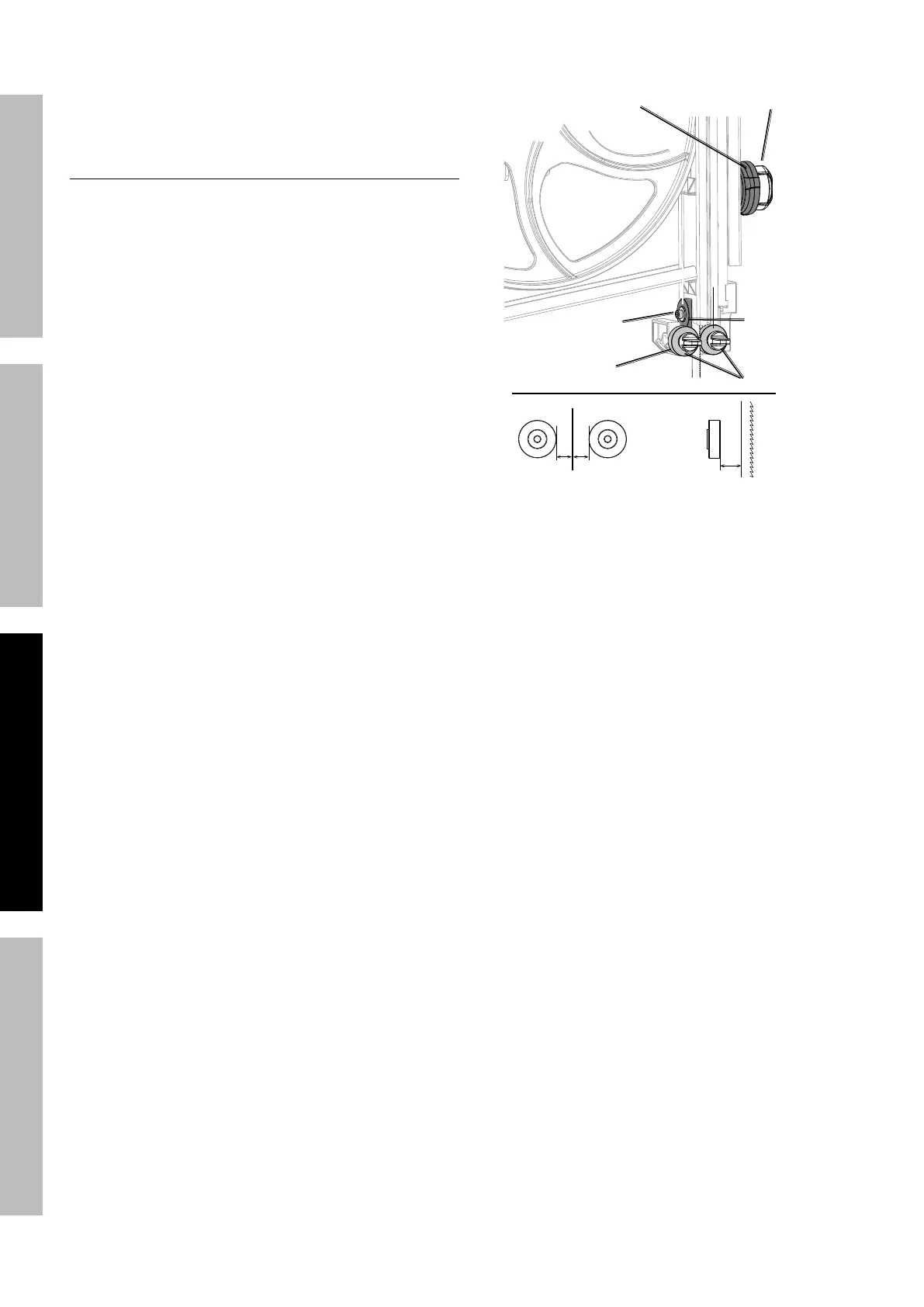

1. Loosen two Lock Handles to adjust Guide Bearings.
2. Adjust Guide Bearings so that they are equal
or less than 0.030 away from the blade.
3. Tighten two Lock Knobs.
4. Loosen Socket Head Bolt and adjust the
Thrust Bearing so that it is equal or less
than 0.040″ away from back of blade.
5. Tighten Socket Head Bolt.
≤0.75mm ≤0.75mm
≤1mm
Lock Handle
Guide Bearings
Socket
Head Bolt
Blade Guard
Lock Handle
Blade Guard
Adjustment
Handle
Thrust
Bearing
