HB EncoderMaster E V1.00.xx rev04.doc 9/15 Baumer Electric AG

09.07.08/wer Frauenfeld, Switzerland

4 Hardware installation

4.1 Connection of BiSS Adaptor

Connect the BiSS Adaptor to the power supply. After that, connect the BiSS Adaptor to the PC by using a

USB-AB cable.

USB

POWER

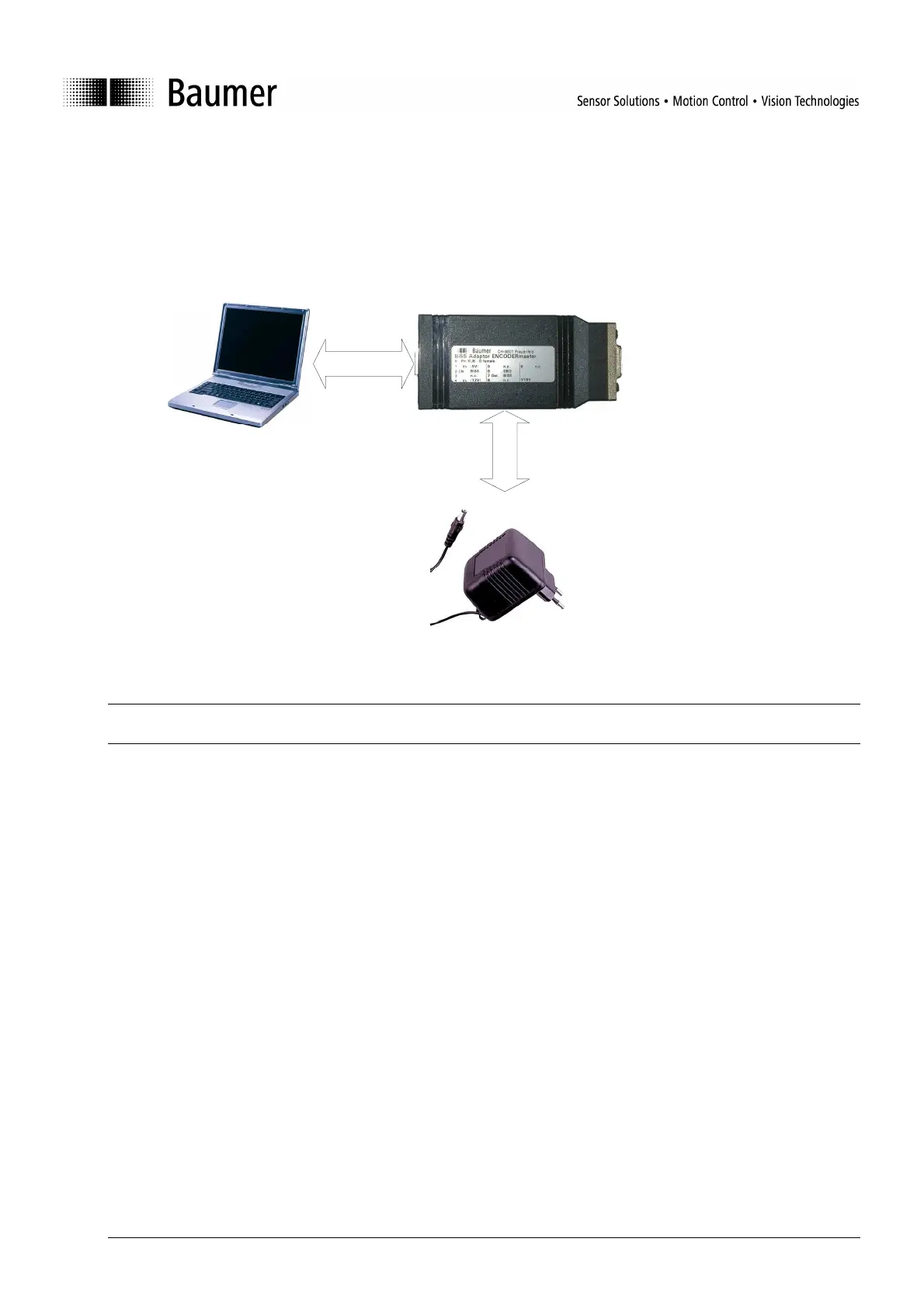

Figure 8: Cabling

ATTENTION: It is recommended to connect the power supply to the BiSS Adaptor all the time during

operation.
