Manual_ProfibusDPV2_BIDE_EN.docx 12/41 Baumer IVO GmbH & Co. KG
22.11.12 Villingen-Schwenningen, Germany
E/A fields require defining partial process images in clock-synchronous operation, in the example it is TPA1.
Take care that the selected partial process image comprises the initial address. If not it will result in an error
signal when interpreting the project.
5.5. Parameterization

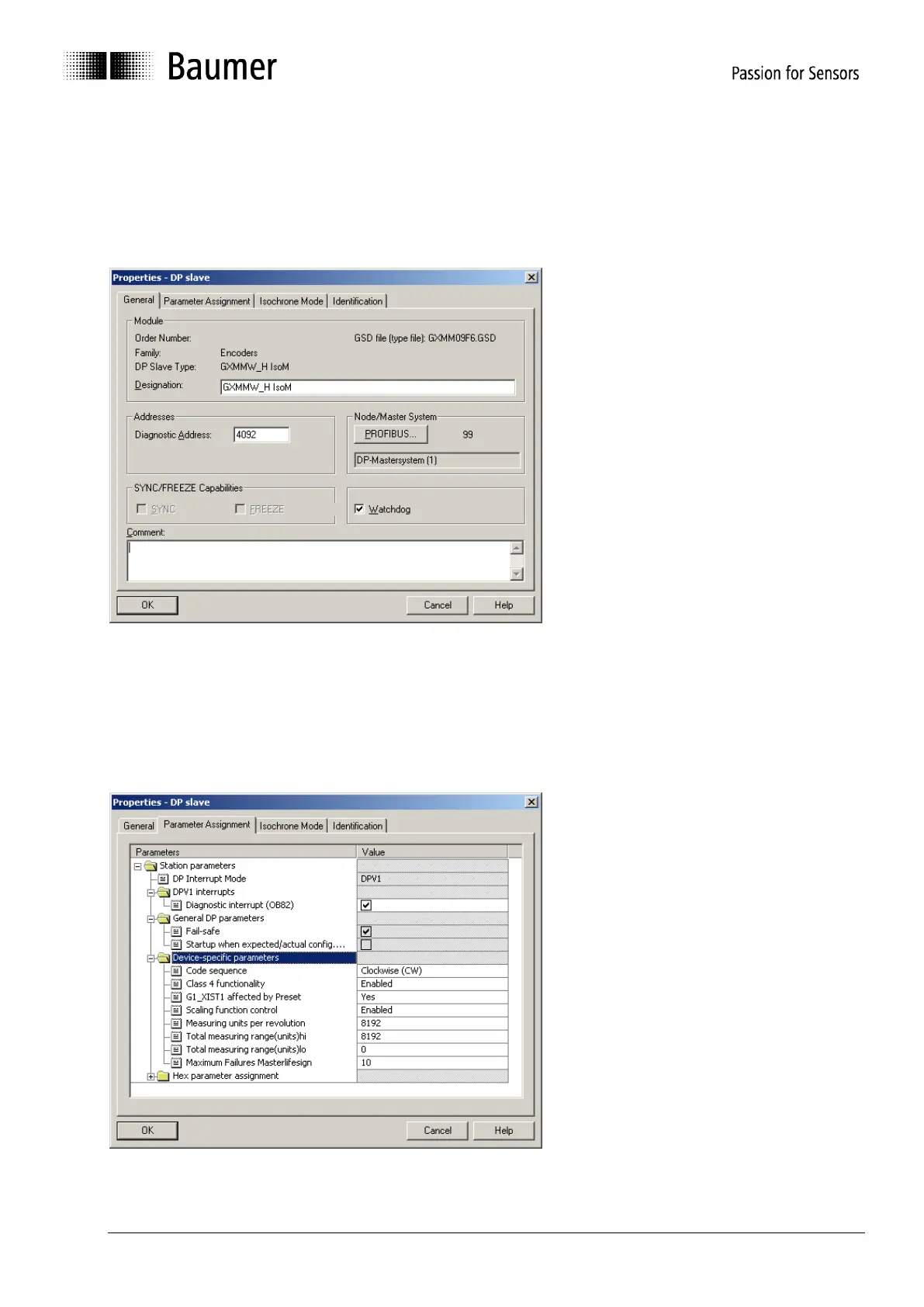

Upon double-click on the encoder icon at the bus bar, the window „Properties-DP-Slave“ pops up, showing
the tabs “General”, “Parameter Assignment” and “Clock synchronisation”.
5.5.1. General
System parameters under tab „General“ may usually be adopted without modifications.
If required, encoder name, diagnosis address and node ID under button „Profibus…” may be altered. Further
here is the option to deactivate the encoder’s response monitoring.
5.5.2. Parameter assignment
