Baumuller SI4000 - SI4000 Pin Assignment

Commissioning
Operation Manual Safety I/O Terminals SI4000 / SO4000
Document no.: 5.08009.05
43
of 82
7
7.1.5 SI4000 pin assignment

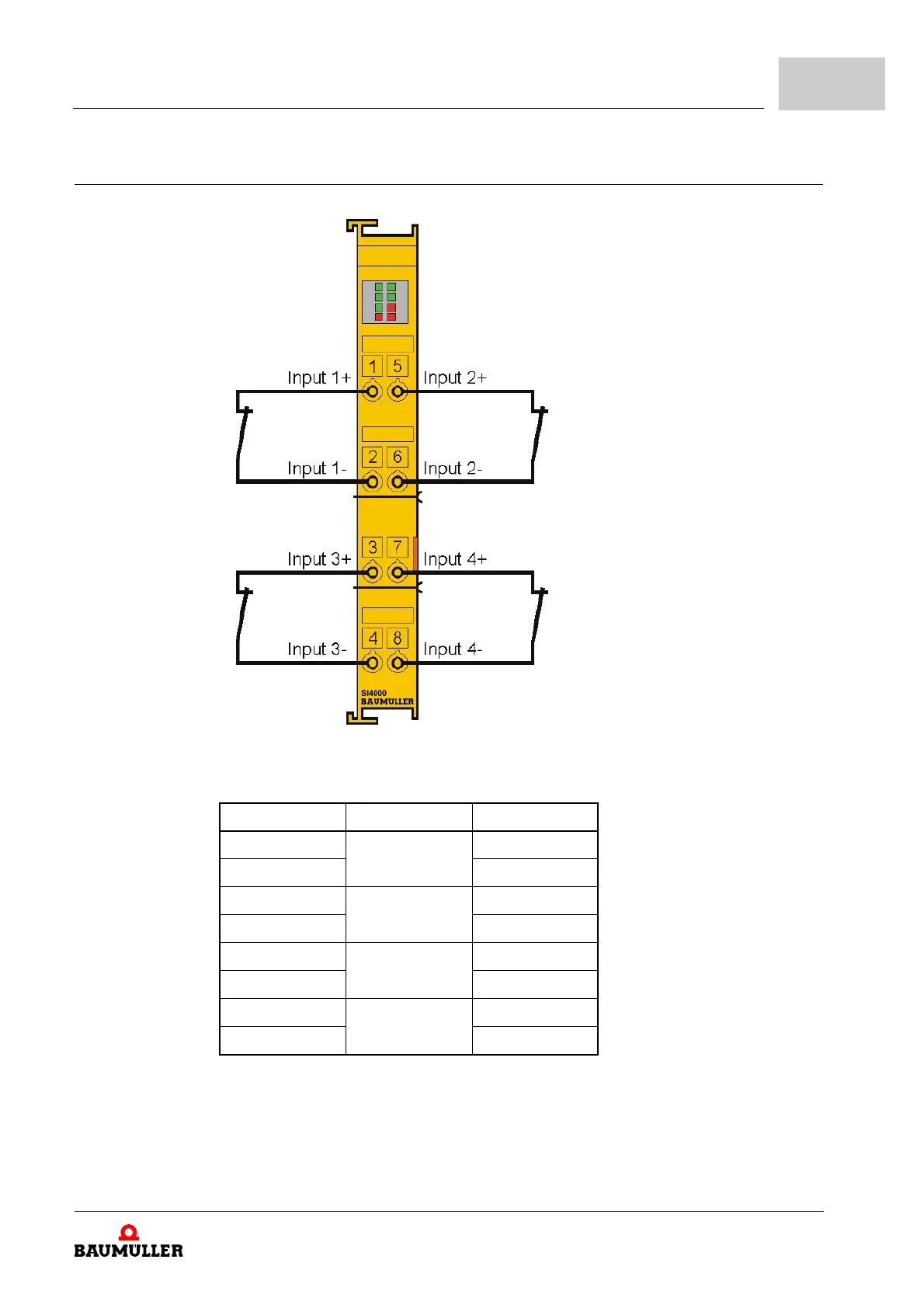

Figure 8: SI4000
Clamping point Input Signal
1 1 Input 1+
2 Input 1-
3 3 Input 3+
4 Input 3-
5 2 Input 2+
6 Input 2-
7 4 Input 4+
8 Input 4-
