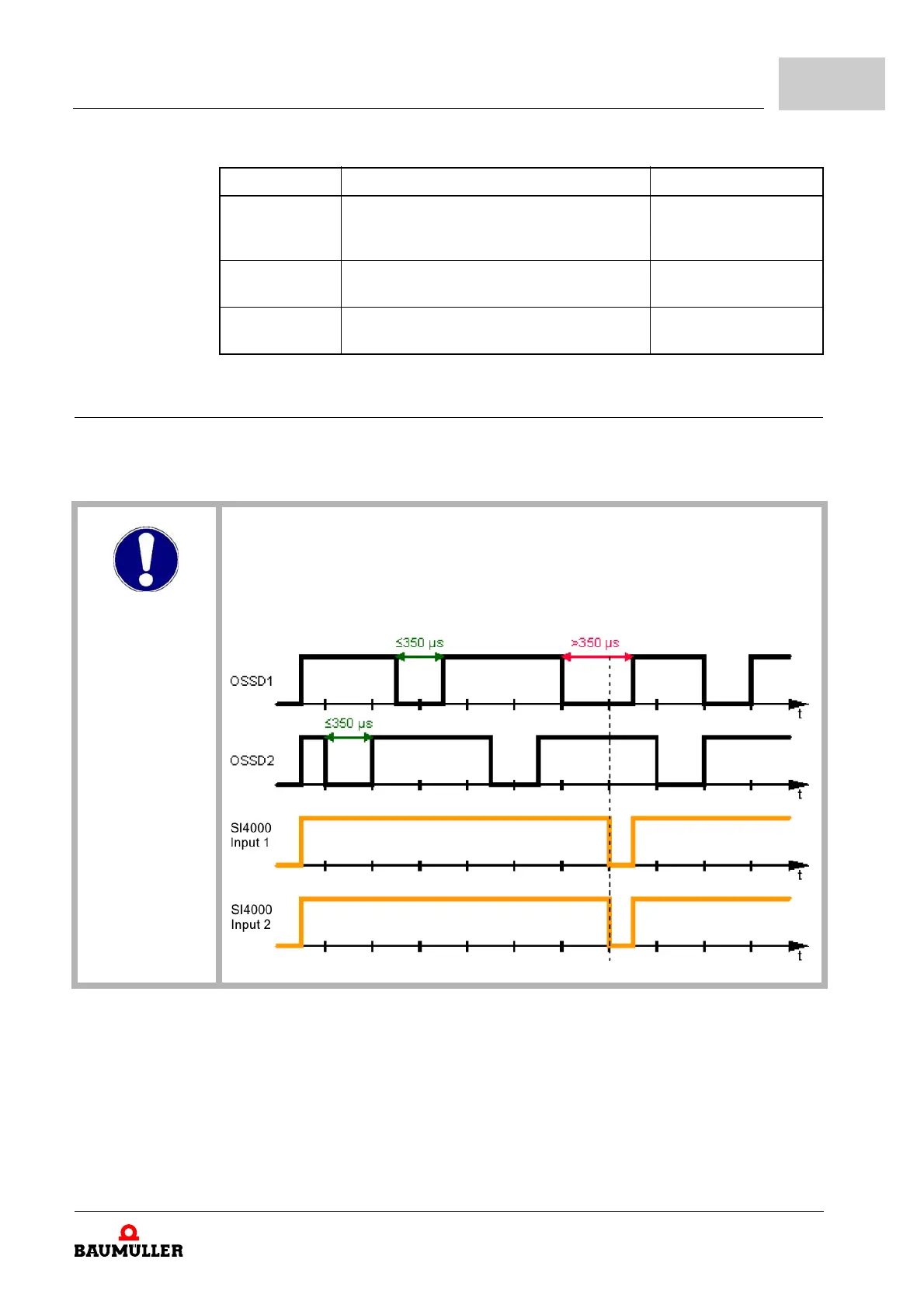

7.1.8.2 SI4000 configuration for light barriers, light grids, light curtains etc.
The SI4000 also supports direct connection of contact-free protective eqipment with two
self-testing outputs such as light barriers, light grids, light curtains, laser scanner etc.
CAUTION!
Sensors with self-testing outputs
Only sensors with self-testing outputs and a
maximum sensor self-test duration of
350 µs may be connected to the SI4000.
Parameter
To connect these sensors please set the follo
wing parameters for the SI4000 in
ProMaster:
m Connect the two sensor signals either to channels 1 and 2 or channels 3 and 4 and
activa
te the two-channel evaluation for the two inputs used.
m Set the SI4000 sensor test for the two inputs used to not
active.
Channel 3 and
4
For two-channel evaluation, inputs 3 and 4
must have the same signal states
single-channel evalua-
tion/two-channel evalu-
ation
Ambivalence
channel 1 and 2
If active, inputs 1 and 2 must have different
signal states
not active/active
Ambivalence
channel 3 and 4
If active, inputs 3 and 4 must have different
signal states
not active/active
PrmName Meaning Values
