CU control unit

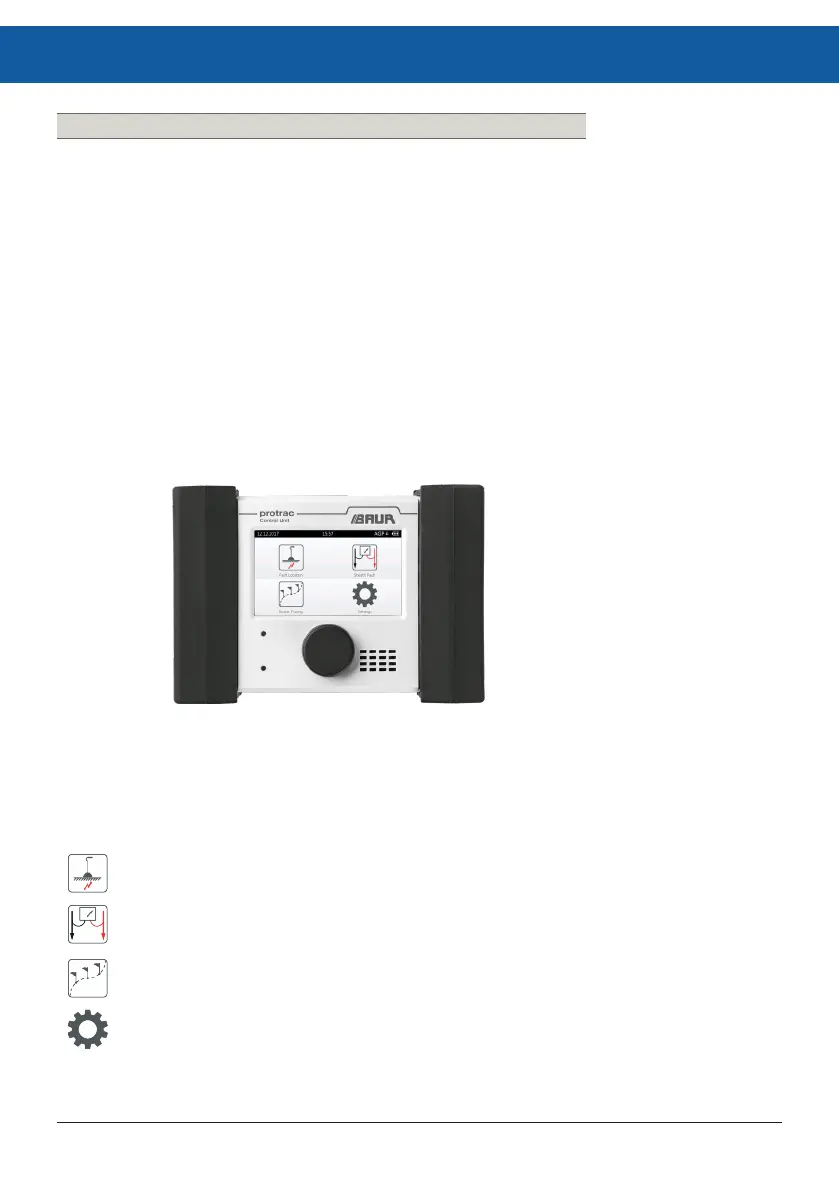

The home screen of the CU gives you access to the following information and func-
tions:
Header Date and time, devices connected and linked via
Bluetooth®, rechargeable and non-rechargeable
battery status of the control unit
Acoustic pin-pointing
Sheath fault location
Tracing
Basic settings
The CU is switched o automatically if there is no connection to an AGP or to the SVPs
for 5 minutes.
AGP acoustic ground probe
9 Height-adjustable handle
10 Charger socket
11 On/O button and LED for the operating state indicator
[Ü “AGP Operating state indicator”]
12 Rechargeable battery compartment
13 Quick-release fastener for simple fitting or removal of the
handle
14 Directional arrow
protrac® pin-pointing system822-186-4
