17

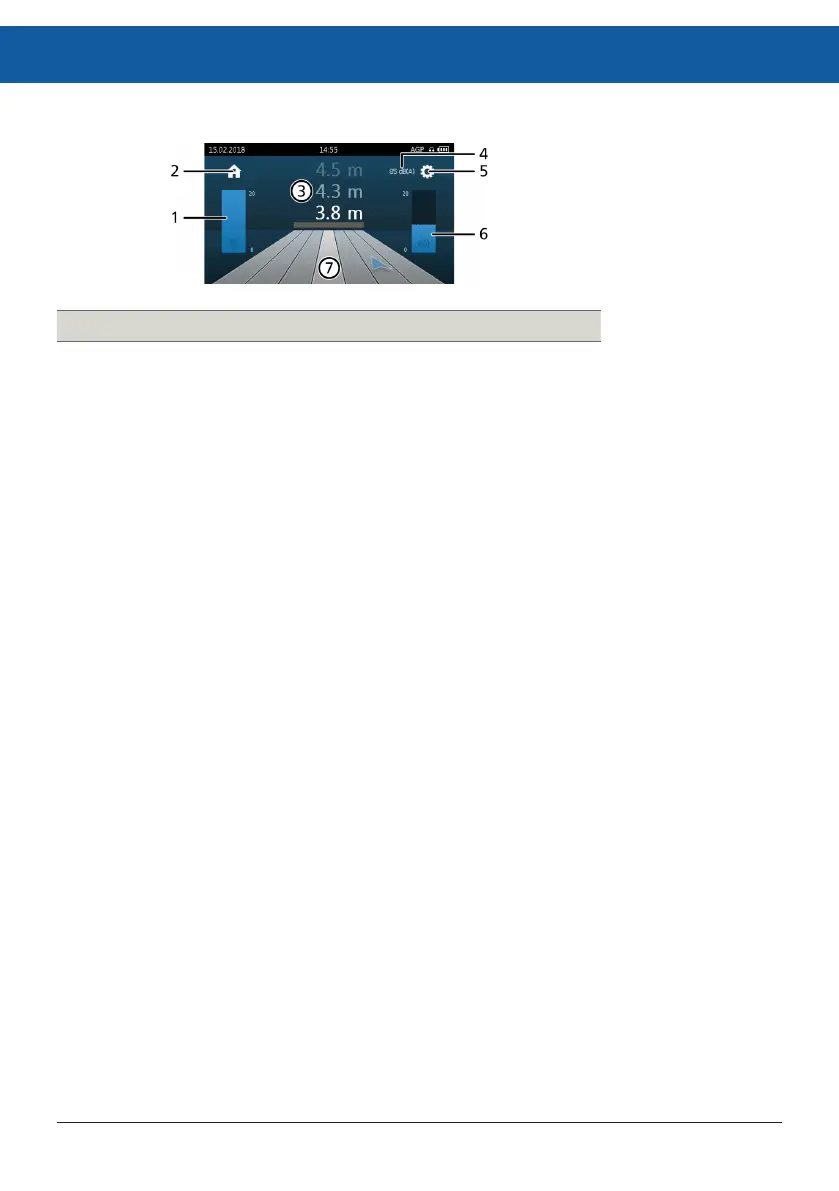

User interface
No� Function
1 Indicates the strength of the magnetic signal (incl. last
measured peak level)
» To change the gain, tap on the bar.
2 Calls up the home screen
3 Shows the last measured distances from the fault (latest
distance: white)
4 Indicates whether limiting to 85 dB(A) is active
5 Calls up the method settings
6 Indicates the strength of the acoustic signal (incl. last
measured peak level)
7 Shows the cable route (light stripe in the middle) and
neighbouring zones, and where you are located in rela-
tion to the cable route (blue directional arrow)
protrac® pin-pointing system822-186-4
Acoustic pin-pointing – general
