28
No� Function
1 Indicates the signal strength and where you are in rela-
tion to the cable route (light stripe in the middle)
2 Indicates the direction you need to go in
3 Calls up the home screen
4 Calls up the method settings
5
Indicates whether the maximum ( ) or the minimum
method ( ) has been selected
» To switch methods, tap the symbol.
6 Shows the cable route and neighbouring zones as well
as the selected frequency
If you are immediately above the cable route, the
neighbouring zones are shown in white.
Performing tracing
Procedure
DANGER
Danger to life due to electric shock!
» Take all necessary safety measures [Ü "Before
commissioning”].
» Discharge and earth the test object before
touching it.
1. Connect the test object properly according to the user manual for the cable fault
location system.

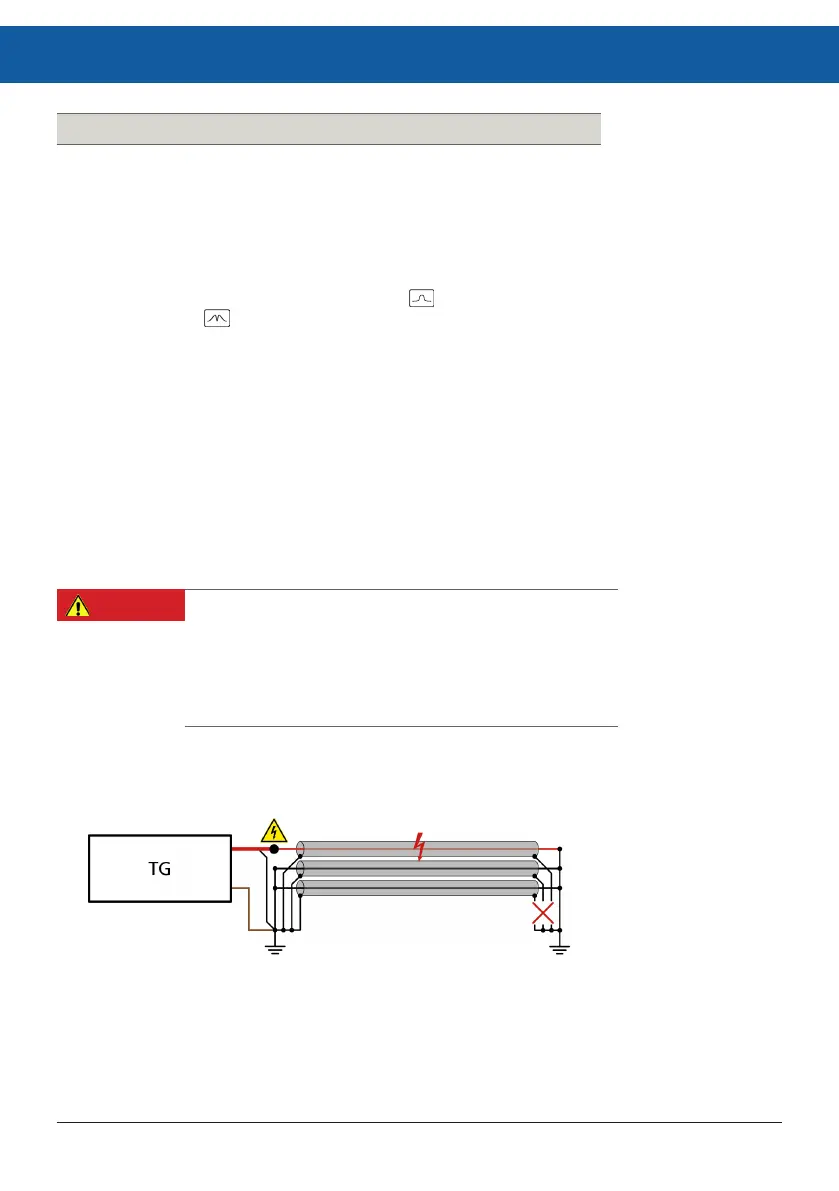

Example: Connect the TG to a 3-phase screened cable
2. Connect the TG and make the desired settings.
3. Position the AGP on the ground with the directional arrow in the direction of the
cable route.
4. Switch on the AGP, the headphones and the CU.
The header of the touchscreen shows that the devices are connected.
protrac® pin-pointing system 822-186-4
