5. To dimension " X" add 40 mm. This dimension to be known as "Y" .
1
2
3
4
TOP label
Sealing tape
Securing screw
Peak to be uppermost
6. Adjust the two telescopic sections to dimension "Y" and seal the joint
with the tape provided. Ensure that the labels marked "TOP" on the
terminal and connection assemblies are uppermost.
7.
8.
Using the clearance holes in the connection assembly secure it to
the terminal assembly using the screws supplied with the telescopic
flue.
Remove the flue elbow and insert the flue through the hole in the
wall. Fit the flue trims if required, and refit the elbow to the boiler
adaptor, ensuring that it is pushed fully in. Secure the elbow with the
screws supplied in the boiler fitting kit.
1
2
3
4
5
A
B
C
Flue elbow
Boiler adaptor
Telescopic flue
Flue trim
Securing screw
Apply the lubricant supplied for ease of assembly (do not use
any other type). Ensure flue is fully engaged into elbow.
Apply the lubricant supplied for ease of assembly (do not use
any other type). Ensure elbow is fully engaged into boiler
adaptor.
Peak to be uppermost
9. Draw the flue back through the wall and engage it in the elbow. It
may be necessary to lubricate to ease assembly of the elbow and
flue.
10. Ensure that the terminal is positioned with the slots to the bottom.
Secure to the elbow with the screws supplied with the telescopic
flue.
Important
It is essential that the flue terminal is fitted as shown to ensure
correct boiler operation and prevent water entering the flue.
11. Make good between the wall and air duct outside the building, ap
propriate to the wall construction and fire rating.
12. If necessary fit a terminal guard.

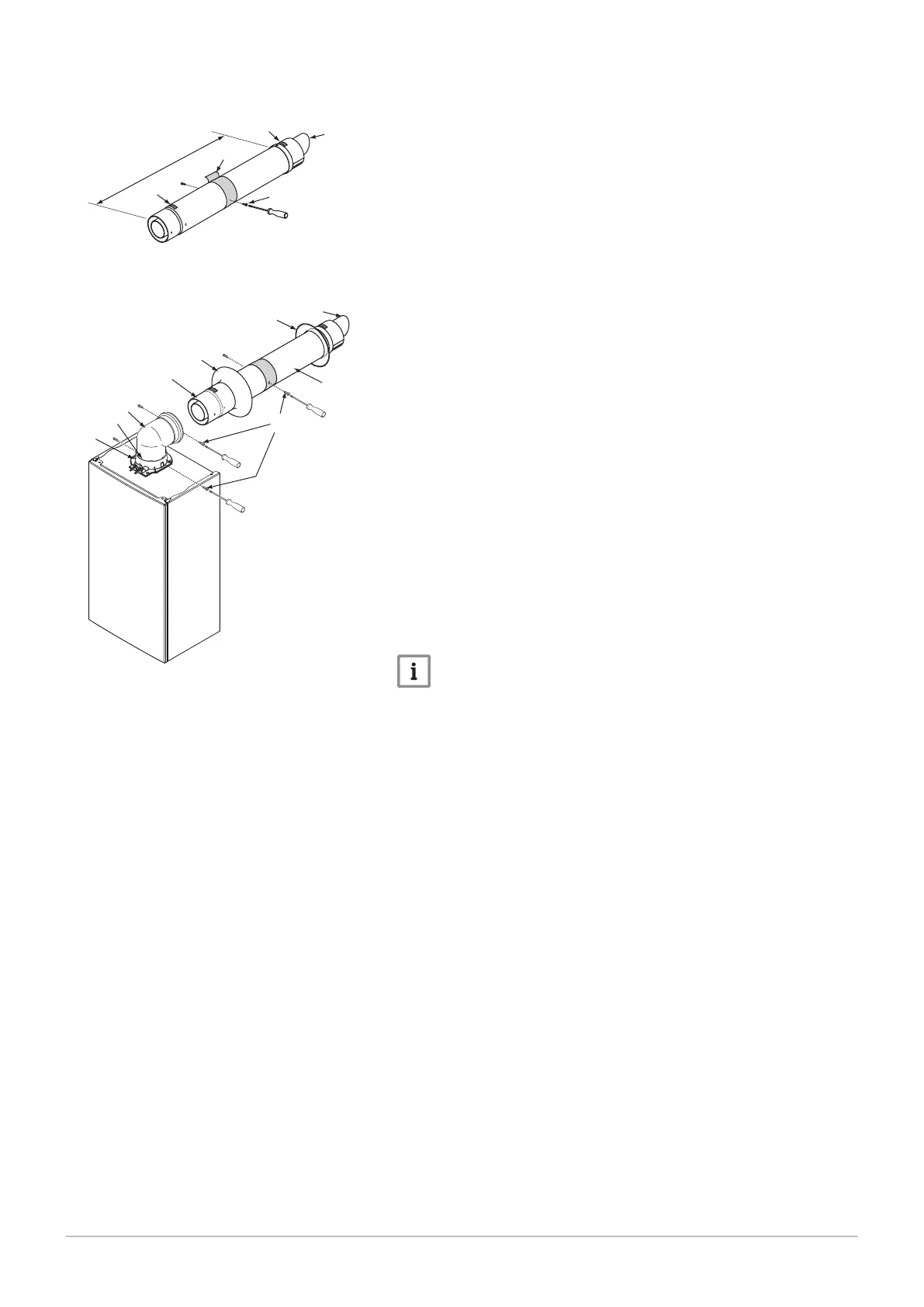

Fig.36 Flue dimension Y
PN-0000464
Y
1
2
1
3
4
Fig.37 Attaching the flue
PN-0000465
1
2
3
4
4
5
A
B
C
6 Installation
600 Combi 2 41
