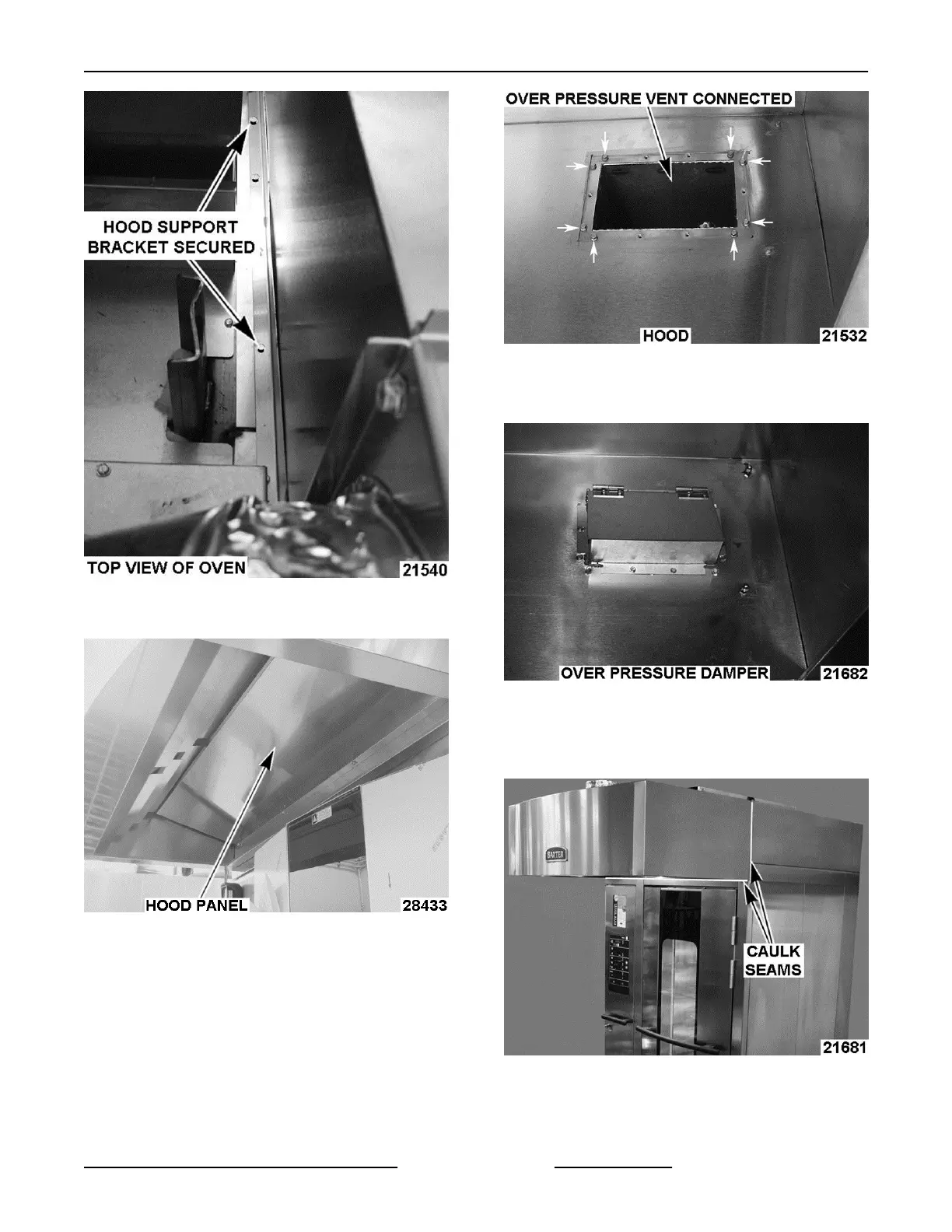

Fig. 109
2. Remove perforated air baffle from hood.
Fig. 110
3.
Connect the over pressure vent (Right side of
hood) using #10 Tek screws 8 places total.
Fig. 111
4. Install over pressure damper to over pressure
vent (right side of hood) using #10 Tek screws.
Fig. 112
5. Caulk
header and seams at hood and side panels
also bottom edge seam of hood along oven front
with gray silicone.
Fig. 113
INSTALLATION INSTRUCTIONS OV500-EE SERIES GAS RACK OVENS AND OV500 SERIES ELECTRIC RACK
OVENS - INSTALLING OVEN
Page 41 of 49 F45469 Rev. D (1019)
