Bay-Tek Pop the Lock - HASP SETUP: CIRCUIT BOARD CONNECTIONS AND POWER-ON; Circuit Board Cable Connections; Final Game Setup and Power On

11
SETUP GUIDE WITH HASP CONT.

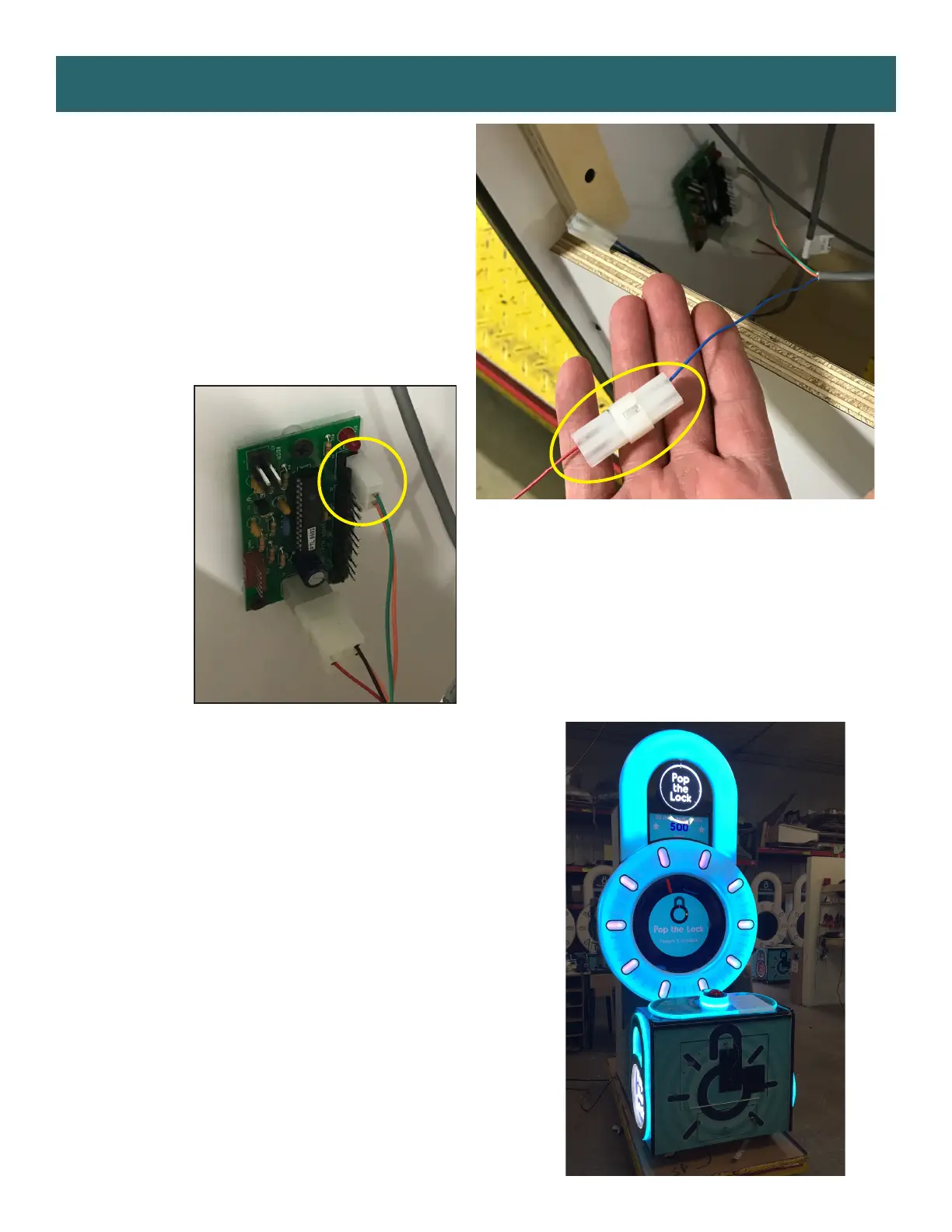

Plug in cable CE5903 to cable
CE5926-1.
Plug in cable CE5930-1 to cable
CE5901.
Plug in cable 5918 to the small circuit
board on the side of the cabinet and
the single red wire from CE5932.
Replace the back door and lock. Place
game in desired location. Plug the
power cord into a standard electrical
outlet and turn the power strip inside
the front door to ON.
