31
WIRING DIAGRAMS
LIGHT BOARD WIRING
5

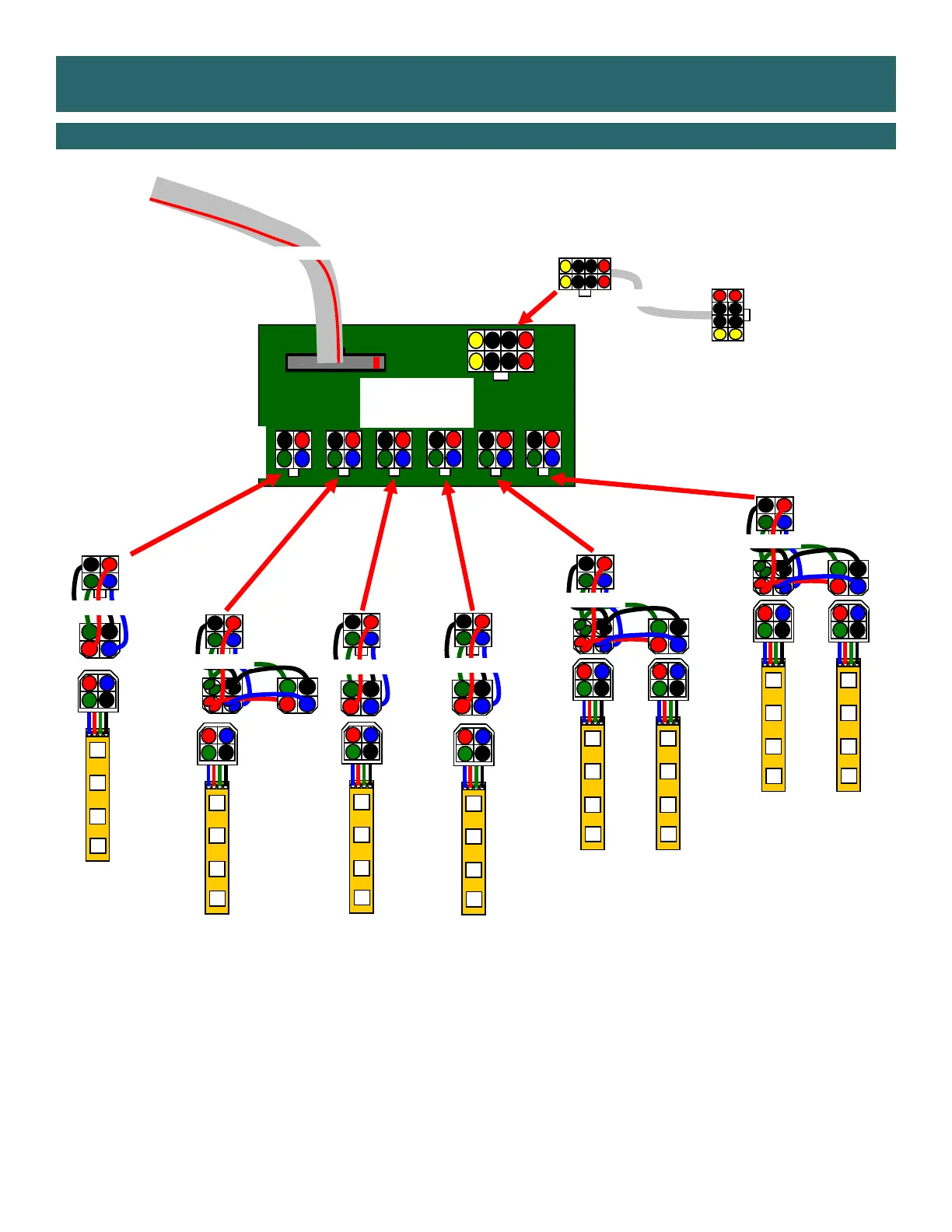

Light Board Wiring Diagram
AACB5900
Light Board
These output
cables are
interchangeable
AACE5915
From Power
Distribution
Board
From Newgen
Board
AACE5933
AACE5902
AACE5900
Not Used
AACE5901
AACE5903
AACE5904
AACE5905
AACE5924
Console
Surround
Led’s
AACE5925
Button
Housing
Led’s
AACE5930
Lock
Surround
Led’s
AACE5926
Lock
Latch
Led’s
AACE5927
Left Side
Lock
Outside
Led’s
AACE5923
Left Side
Lock
Outside
Led’s
AACE5923
Right Side
Lock
Outside
Led’s
AACE5927
Right Side
Lock
Outside
Led’s
