Baylis V4C-O2E - Figure 4-5. Lowering the Compatible Ventilator Onto the V4 C-O2 E Oxygen Mixer

Installation and Assembly
4-6 User Manual
DMR V4C 3.3 (User Manual) V-4 06-May-2022

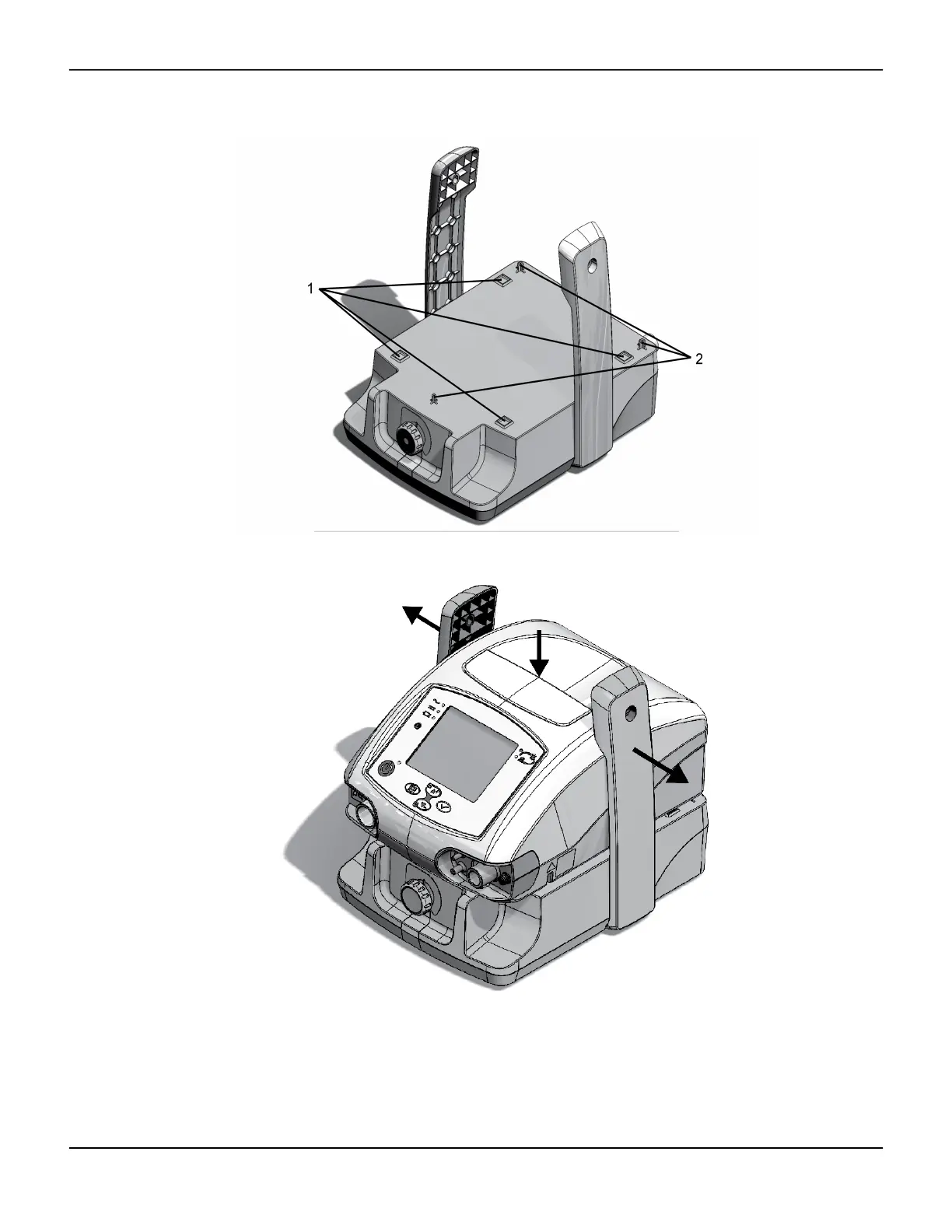

Figure4-4.Location of V4C-O2E Oxygen Mixer recesses (1) and posts (2).
Figure4-5.Lowering the compatible ventilator onto the V4C-O2E Oxygen Mixer
5. Refer to Figure 4-6. Lower the handle on to the side arms with the Baylis Medical logo facing the front
(the straight face of the handle is facing forward). Press down firmly to secure the handle. Install 2 M6
screws and 2 M6 washers as shown. Use the installation tool to tighten both screws approximately
halfway, then complete the tightening until the ventilator is secure in the Oxygen Mixer. The ventilator
should not move in the side arms when carried by the handle. Do not over-tighten screws.
