ENGINE AIR CLEANER

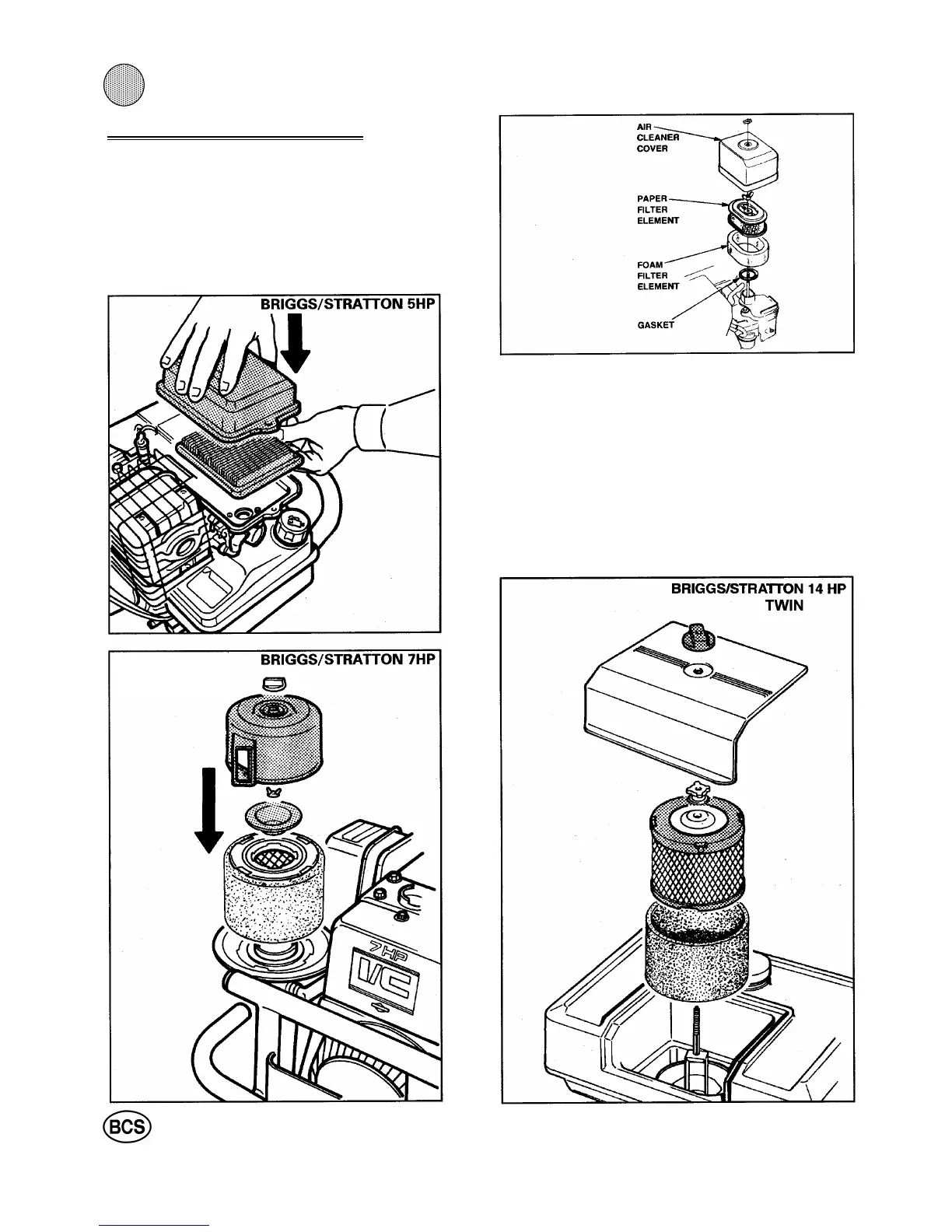

The dry element filters used on B&S, Honda and Kohler
engines are shown in different drawings. Optional
commercial type pre-cleaner elements are available to
fit these air cleaners.
Pre-cleaners are recommended particularly when using
a Power Sweeper, Dozer Blade or Tiller, in dry and du-
sty conditions.
Open the air cleaner and check the air filter at regular
intervals. Under very dusty conditions, check often and
change filters when necessary. A clogged filter raises
the engine temperature.
Dry element filters can be cleaned by tapping gently
against a flat surface but it is far better to replace a dirty
filter than try to clean it. The pre-cleaners, however, can
be cleaned with soap and water or mineral spirits, but
must be dried thoroughly, then oiled before use.
Soak the cleaned and dried pre-cleaner in clean engine
oil. Then squeeze out the oil before installing the pre-
cleaner.
26
2 2
KOHLER CH270
KOHLER CH395
