USE AND CARE OF 2-BLADE
ROTARY MOWER .
THE UNITS CONVERTED FOR
MOWER USE
For conversion and operation of your unit the front-drive
mode see pages 33 and 34.
ASSEMBLY, CONNECTION AND
LEVELING OF THE 2-BLADE
MOWER
The attachment is packaged with the grass catcher in
place on the deck but the following must be done in pre-
paration for use:
1.
Lift the catcher at the rear and tilt it forward.
Note that the catcher assembly is pinned at the front
on both sides and may be removed if not needed to
catch the grass.
2.

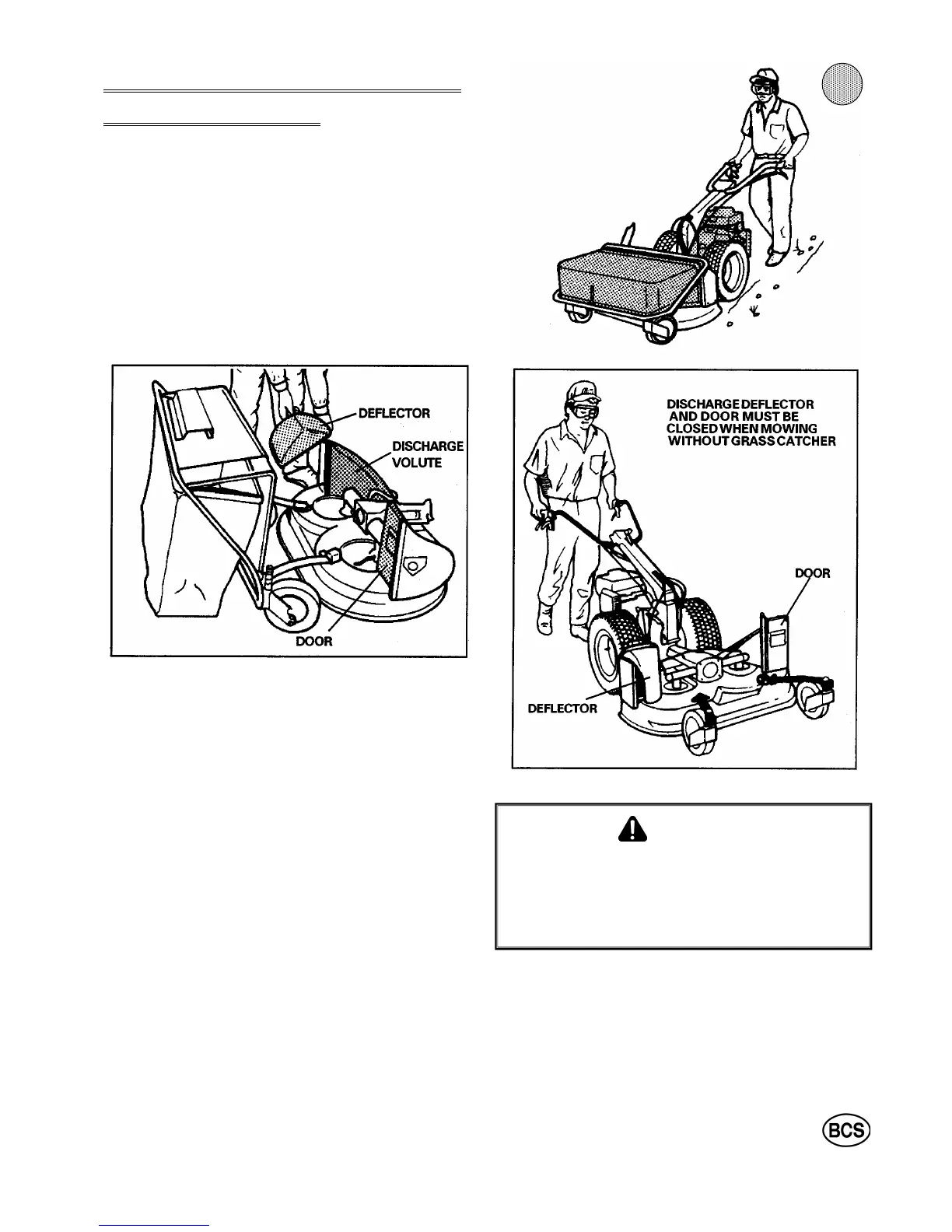

Remove bolts, washers and nuts from the discharge
volute bracket. Use them to attach the curved dis-
charge deflector to the bracket (see drawing).
3. The discharge volute on the opposite side from the
one in step 2 has a flat door hinged down the side.
No assembly is needed.
DANGER
Open discharge from the volutes without the cat-
cher in place can be very dangerous.
Make sure door is closed and deflector is in the
down position when moving without the grass
catcher.
4. POSITIONING OF THE DISCHARGE DEFLECTOR
AND DOOR:
a) For mowing without the grass catcher the dis-
charge deflector MUST be in the down position,
covering the opening so the clippings will not be
thrown out. The door MUST be in closed position
across the other opening for the same reason.
