USE AND CARE OF DOZER BLADE
The Dozer Blade can be used either in front or behind
the unit. It also can be set to doze material straight
ahead or to either side.
The choice of best mounting position and best angle
can be made after experimentation with the dozer blade
and will vary with the condition of the soil, snow or what-
ever material is to be moved or spread.
Consider installation of wheel weights when maximum
traction is needed. Instruction for assembly and use co-
me with the Dozer Blade.
The models have an integral mounting bracket.

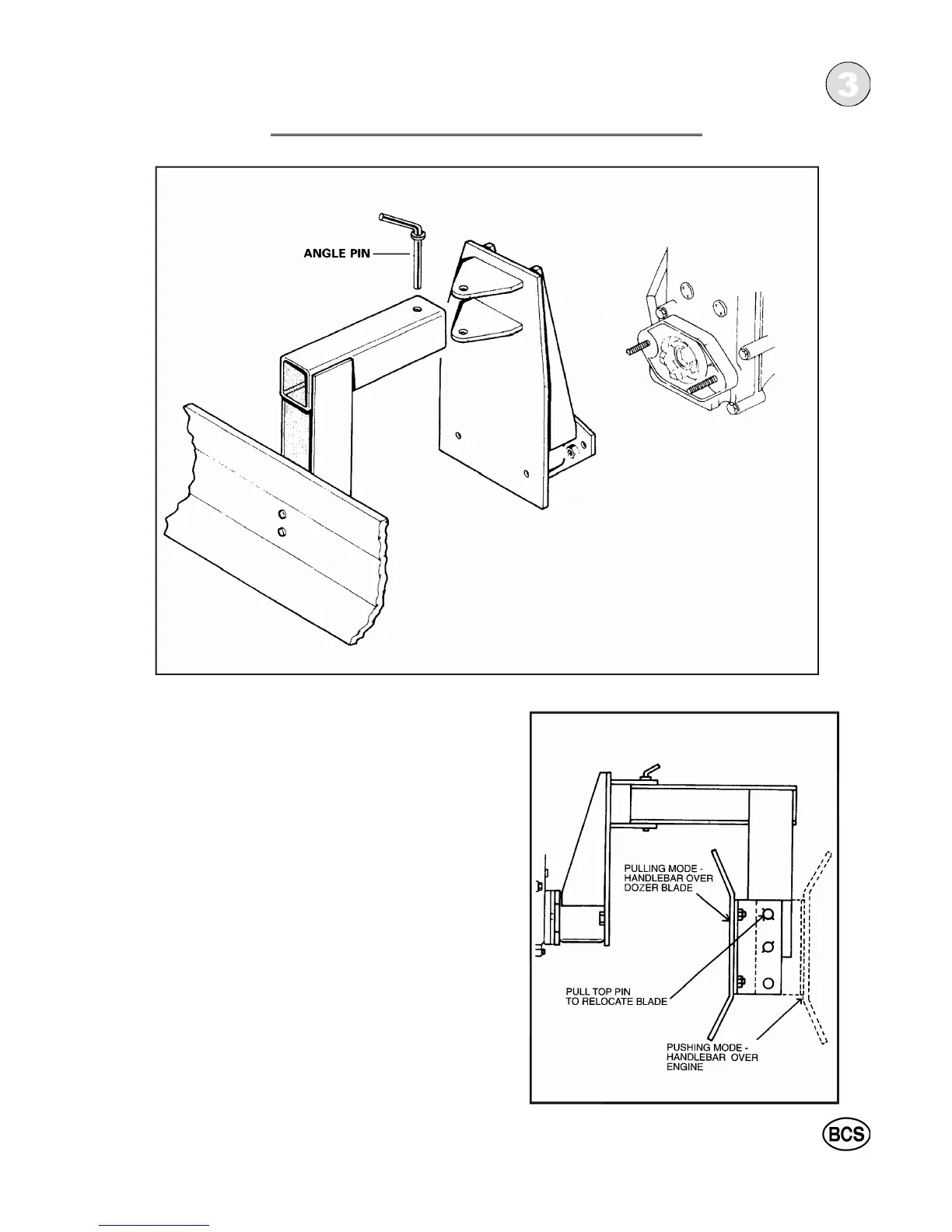

Fit the dozer blade tongue over the hitch (or special
bracket) on the unit, and drop the hitch pin through the
holes.
Drop the angle pin through the tongue hole into one of
the slots in the angle bracket.
Now tighten the PTO stud nuts.
47
