BD Laser MAX - Parts- Machine; Jaws Supplied with the Machine

ENGLISH
Class C Solutions Group BD LASER MAX Man. cod. B409652FG 5
MACHINE DESCRIPTION

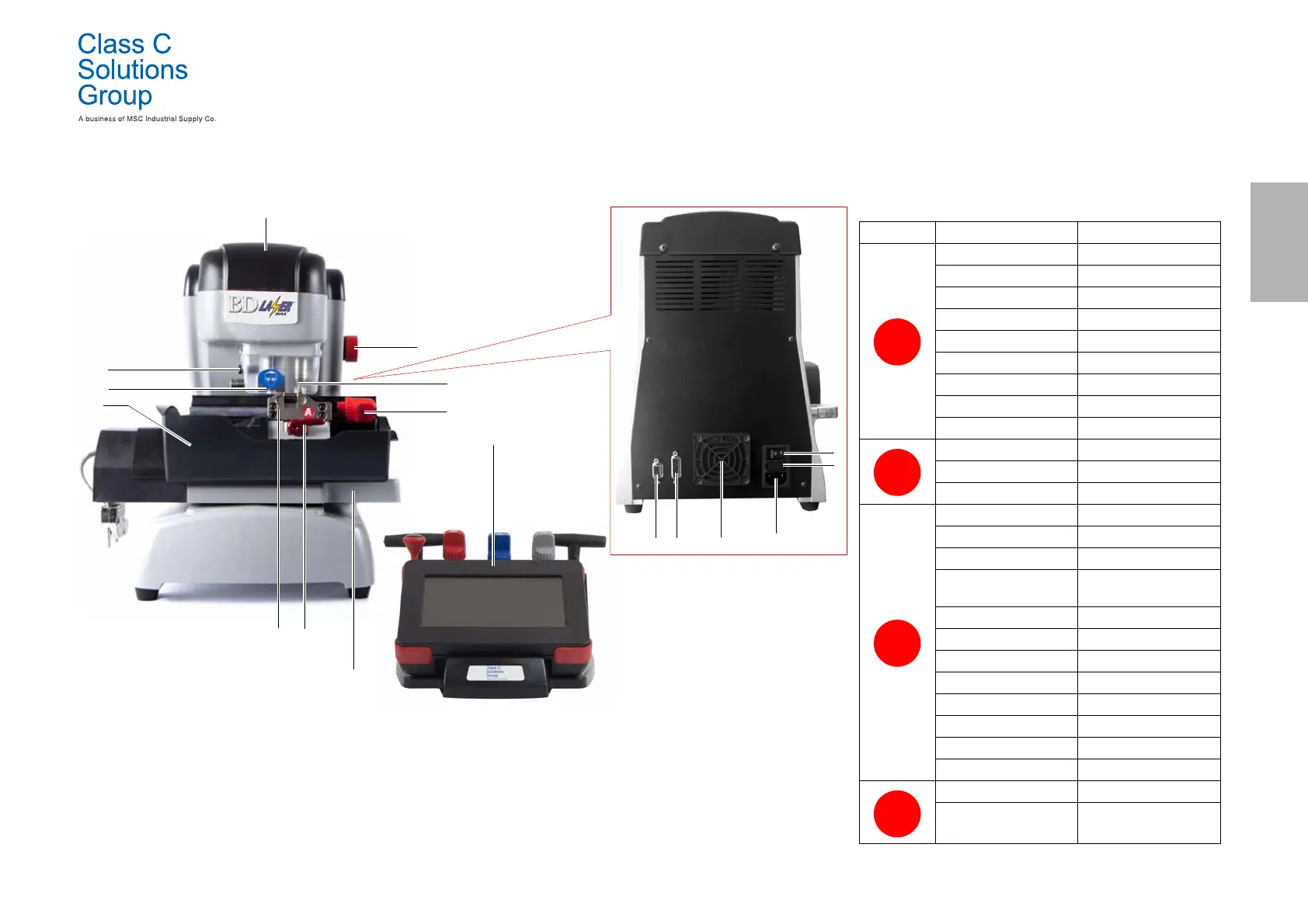

2.2.2 Parts- Machine 2.3.0 Jaws supplied with the machine
12
8
4
16
11
5
10
9
76
17
1314
15
2
1
3
1. Main switch
2. Power connection
3. Fuses holder
4. Tracer holder
5. Cutter
6. Jaw
7. Le v e r s t o l o c k j a w
8. Levers to clamp jaw
9. Jaw support carriage
10. Container to collect waste
11. Protective eye guard
12. Emergency button
13. Serial port (RS232)
14. Input / Output
15. Fan filter
16. Patent pending
17. Console
Jaw Car brands Key-system
Honda 4 External Track
Gm - Pontiac - GTO 2 External Track
Mercedes 4 External Track
Volvo 4 External Track
Volvo (V50 2004) 2 External Track
Saab 2 External Track
Vauxhall (U.K.) 2 External Track
Ford (U.K.) 2 External Track
Subaru - Outback 4 External Track
BMW 4 External Track
Volvo 2 External Track
Peugeot 4 External Track
Volkswagen 2 Inside Track
Audi 2 Inside Track
Lexus 4 Inside Track
Kia (Amanti: US +
Oprius: UK)
4 Inside Track
BMW 2 Inside Track
Saab 4 Inside Track
Porsche 2 Inside Track
Scoda (U.K.) 2 Inside Track
Seat (U.K.) 2 Inside Track
Vauxhall (U.K.) 2 Inside Track
Ford (U.K.) 2 Inside Track
Mazda - Millennia 4 Inside Track
Chrysler - Crossfire External Track
Mercedes External Track
