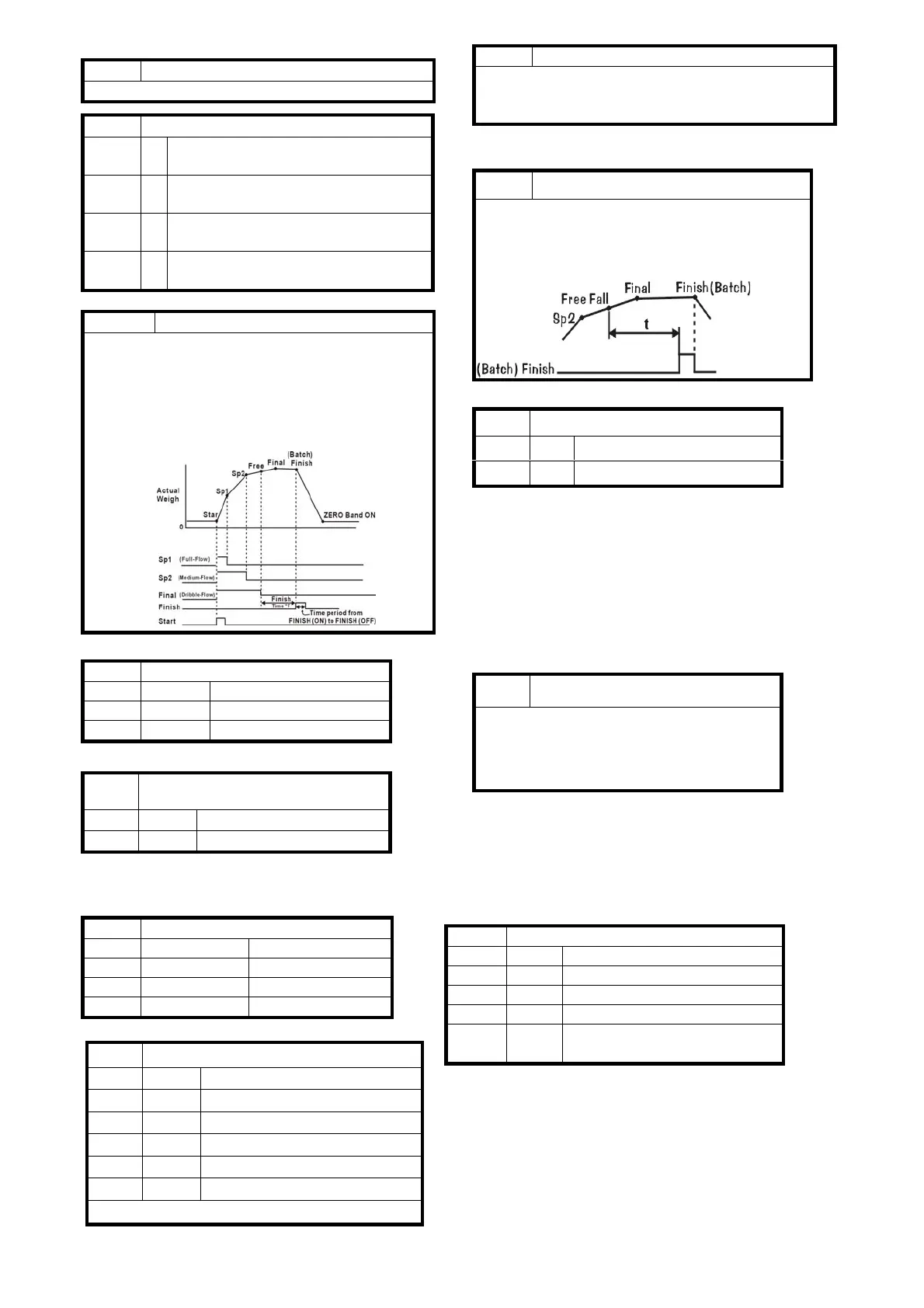

7
◎ Control
◎SERIAL (RS-232 two way/ RS-485 Modbus)
F201
Set data length, Parity, Stop bit
0 D8,N,1
1 D7,E,1
2 D7,O,1
3 D8,N,2
4 D8,E,1
5 D8,O,1
Only 3,4,5 applicable MODBUS (RTU)
F100 Set ZERO Band
6 digit Zero band value (● Initial ”000.000”)
F102 Timer-Comparator Inhibitor
Set between 0.0 to 2.0 Sec
(● Initial 0.0 Sec)
(Only apply to batching mode 3 and 4).
F101
Batching Mode
● 1
Customer Programmed Control
Mode: Normal Batching
2
Customer Programmed Control
Mode: Loss-in-Weight Batching
3
Built-in Automatic Program Mode:
Normal Batching
4
Built-in Automatic Program Mode:
Loss-in weight Batching
F104
Pulse Width of Finish Signal
Set between 0.0 Sec to 2.0 Sec
※ ● Initial 0.5 Sec
※ Stable at 0.0 Sec. Which is apply
to F101 setting at 3 or 4.
F103
Timer-Finish Signal
The finish signal timer can be Set between
0.0 to 9.9 Sec
※● Initial 0.0 Sec
※ Finish Signal sent ON at 0.0 Sec.
And stays ON until the next START Signal.
※ (Only apply to batching mode 3 and 4).
F105
Out
ut 8
0 Unstable
1 Erro
F106 Input by (Batch start/ stop)
1 Panel key
2 BCD Input
3 Serial Input/ Modbus
F107
Automatic Free Fall
Compensation
Please enter 6 digit free fall
Compensation value within effective
range
●initial “000.000”--- Free Fall OFF
F108
Memory Automatic Free Fall
Compensation
0 Yes
1 Not Memory
F200 Band Rate
24 2400BPS
48 4800BPS
96 9600BPS
19 19200Bps
F202 Output data
1 Same as display
2 GROSS Weight
3 NET Weight
4 TARE Weight
5
GROSS Weight, NET
Weight, TARE Weight
To Next Page
