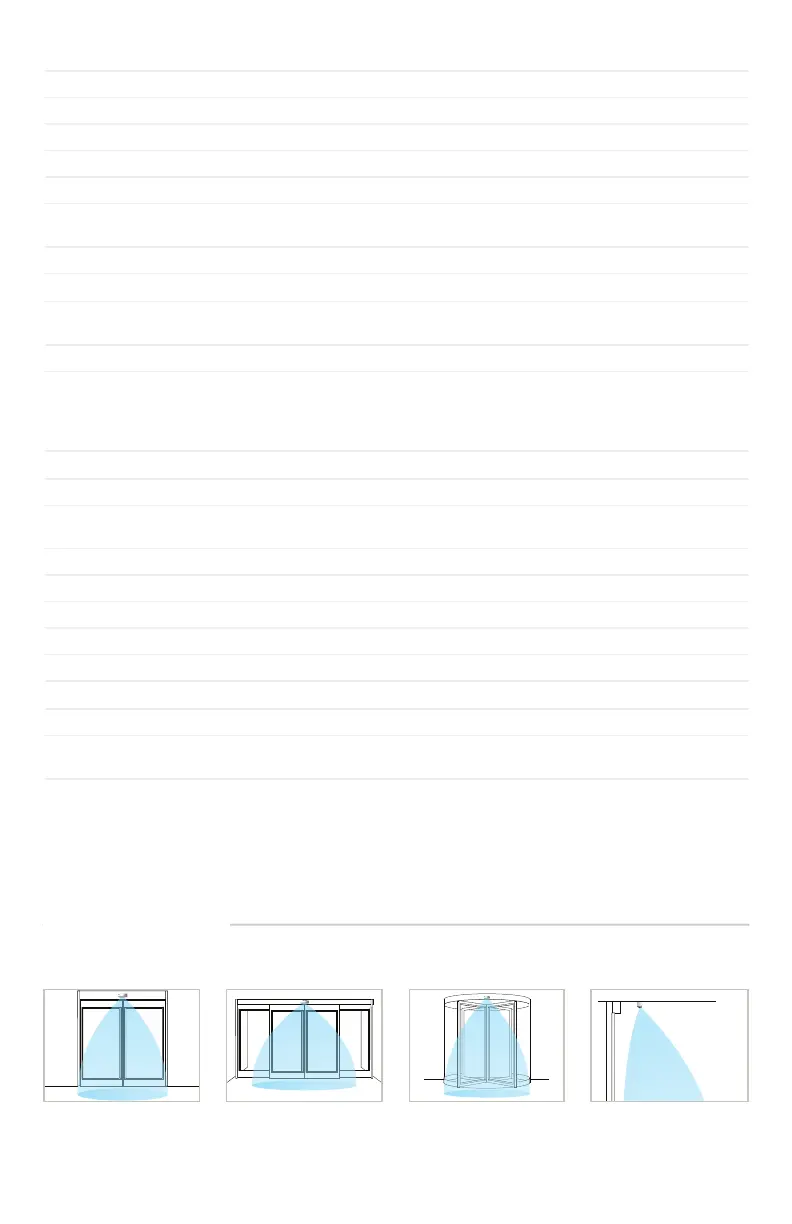

MOUNTING OPTIONS
HEADER MOUNT
swing / folding
HEADER MOUNT
sliding
HEADER (FASCIA) MOUNT
revolving
CEILING MOUNT
swing / sliding / revolving
Specifications are subject to change without prior notice.
All values measured in specific conditions.
TECHNOLOGY / PERFORMANCE
Technology microwave
Detection mode motion
Transmitter frequency: 24.15 GHz
Transmitter radiated power: < 20 dBm EIRP
Transmitter power density: < 5 mW/cm²
Max. detection range: wide: 13’ × 6.5’
narrow : 6.5’ × 7’(@ 7’ high)
Min. detection speed: 2 in/s
ELECTRICAL
Supply voltage*: 12 – 24 VAC ±10% (50 – 60 Hz)
12 – 24 VDC +30% / -10%
Max. power consumption: < 1 W
Output*: solid-state relay (free of polarity)
Max. switching voltage: 30 VAC / 42 VDC
Max. switching current: 100mA (resistive)
PHYSICAL
Mounting height: 6 – 13’
Tilt angles: 0 – 90° vertical
-30 – 30° lateral
Temperature range: -4 – 131 °F (-20 – 55 °C)
Dimensions: 4.72” (L) × 1.96” (H) × 1.96” (W)
Material: ABS
Weight: 120 g
Cable length: 8’
COMPLIANCE
Degree of protection: IP54 (IEC 60529)
FCC certification: FCC: G9B-100606
IC: 4680A-100606
* External electrical sources must be within specified voltages, max 100 W, and ensure double insulation from primary voltages
