BEA Superscan - MODULE POSITIONING AND ANGULATION; Module Positioning; Module Angling

75.0084.05 20110720 Page 9 of 17
MECHANICAL
ADJUSTMENTS –
POSITIONING AND
ANGLING THE
MODULES

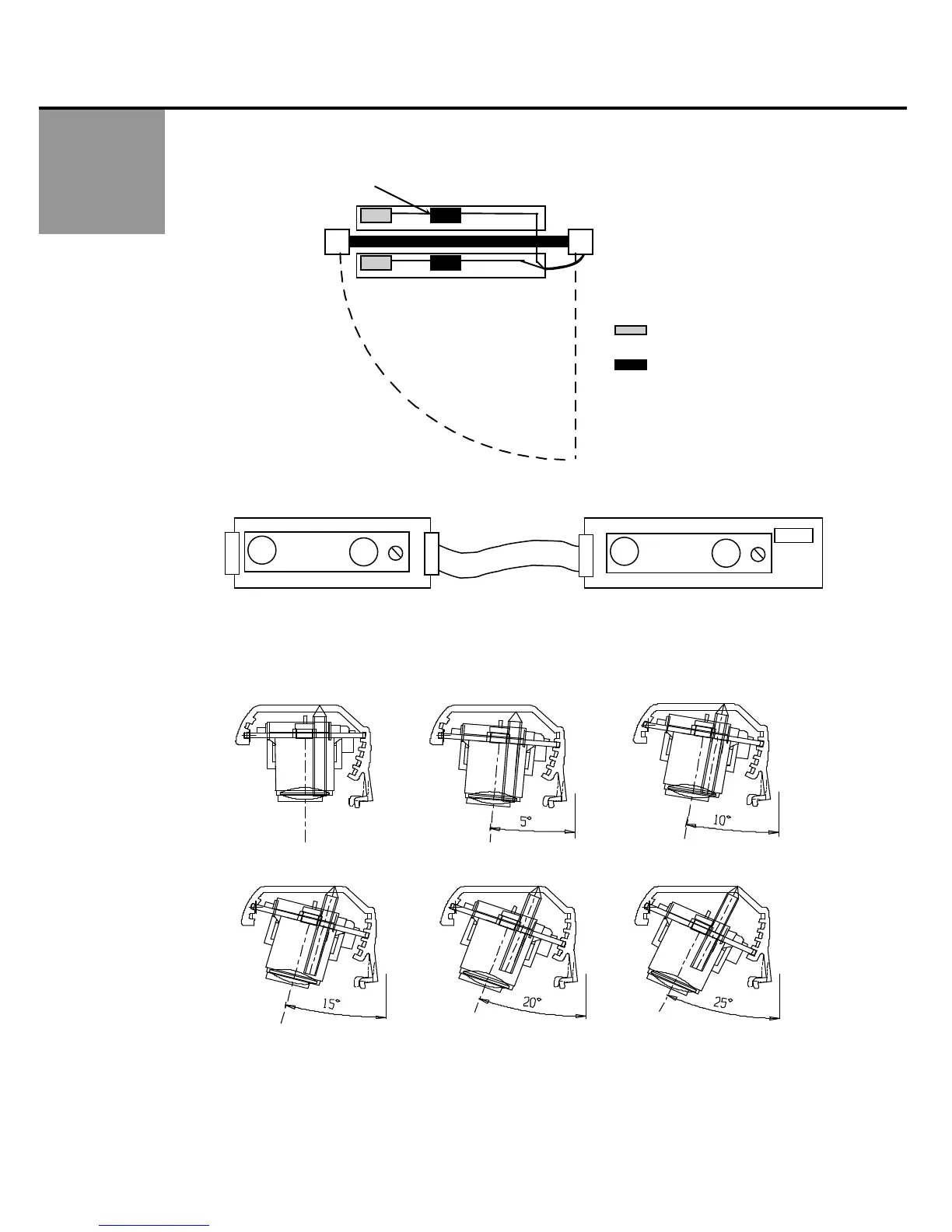

1. The positioning of the modules within the aluminum extrusion will be as shown below. The modules will always be
positioned so that the transmitter (TX) is at the leading edge of the door. Modules may be flipped around to
accommodate handing of doors.
Approach Side
Safety Side
Hinge Side
Leading Edge
Side
Slave module
Master module
Door Cord
(must be placed on interior of door
)
TX
RX
TX
RX
Master Module Slave Module
O
U
T
P
U
T
I
N
P
U
Ribbon Cable
Ribbon Cable
T
2. The angle of each module may be set independently. Use the charts below to help determine the angling. The angles
may have to be altered once the units have been powered up and walk-tested.
