BEA Superscan - MASTER; SLAVE CONFIGURATION AND COMPATIBILITY LIST; Module Compatibility Table; Master Module Configurations; Slave Module Configurations

75.0084.05 20110720 Page 8 of 17
MASTER / SLAVE
CONFIGURATION
AND
COMPATIBILITY
LIST
MASTER AND SLAVE MODULE COMPATIBILITY TABLE
Compatible: √
Not Compatible: X
MASTER
Config.1 SMR Config.2 SMR Config.3 Non SMR
SLAVE
Config.1 SMR √ √ X
Config.2 SMR √ √ X
Config.3 Non SMR √ √ √

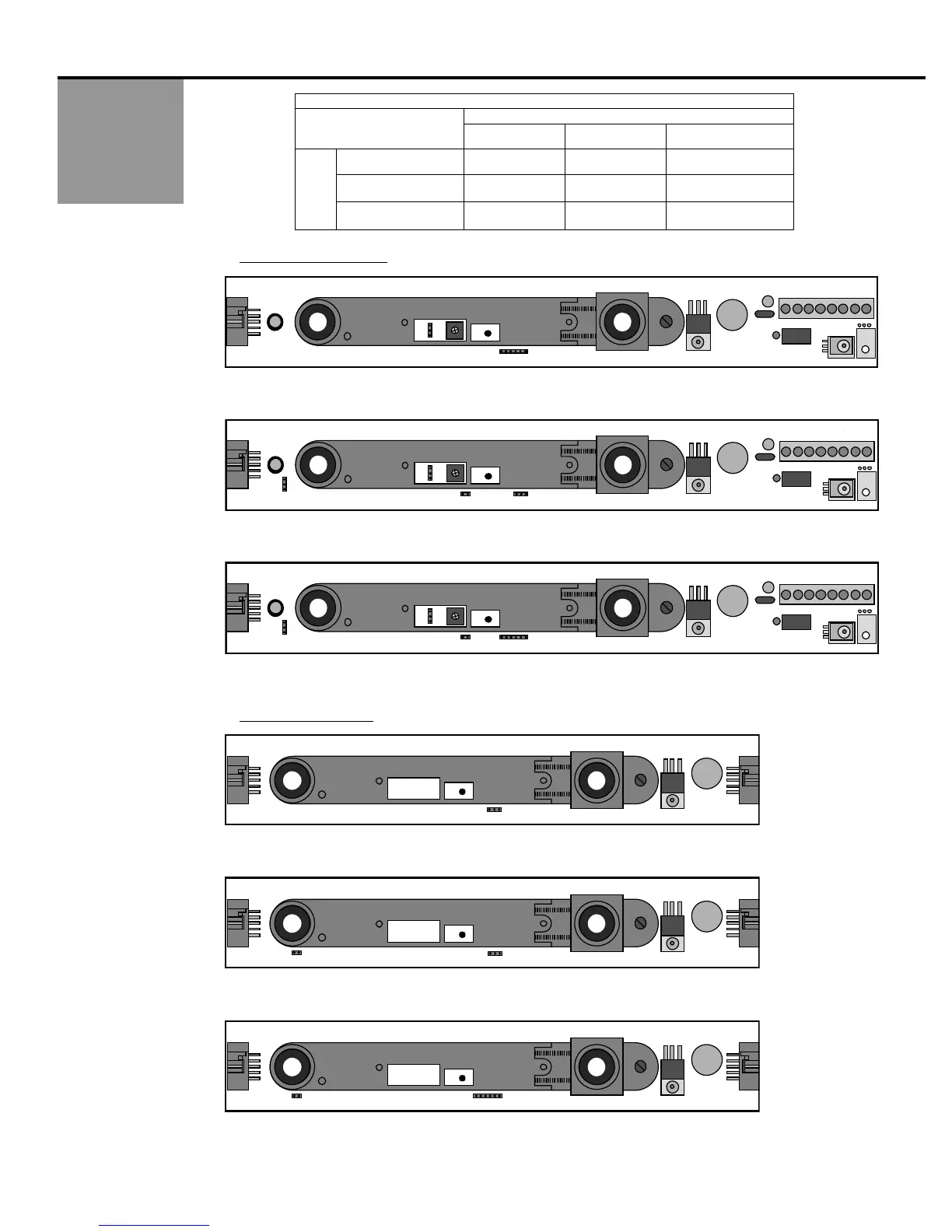

MASTER MODULES
J2
J1
P1
1
Configuration 3 – Non SMR: Jumpers: J1 ‘6 Pin’ and J2 (Latest Master Module)
J2
J1
J4
J3
P1
1
SLAVE MODULES
Configuration 2 - SMR: Jumpers: J1 ‘3 Pin’, J2, J3 and J4 (Subsequent Master Module)
Configuration 1 - SMR: Jumpers: J1 ‘6 Pin’, J2, J3 and J4 (Earliest Master Module)
Configuration 3 – Non SMR: Jumper: J1 (Latest Slave Module)
J1
J2
J1
J4
J3
P1
1
J1
J4
Configuration 2 - SMR: Jumper: J1 ‘3 Pin’ and J4 (Subsequent Slave Module)
Configuration 1 - SMR: Jumper: J1 ‘6 Pin’ and J4 (Earliest Slave Module)
J1
J4
