- User guide
37
13

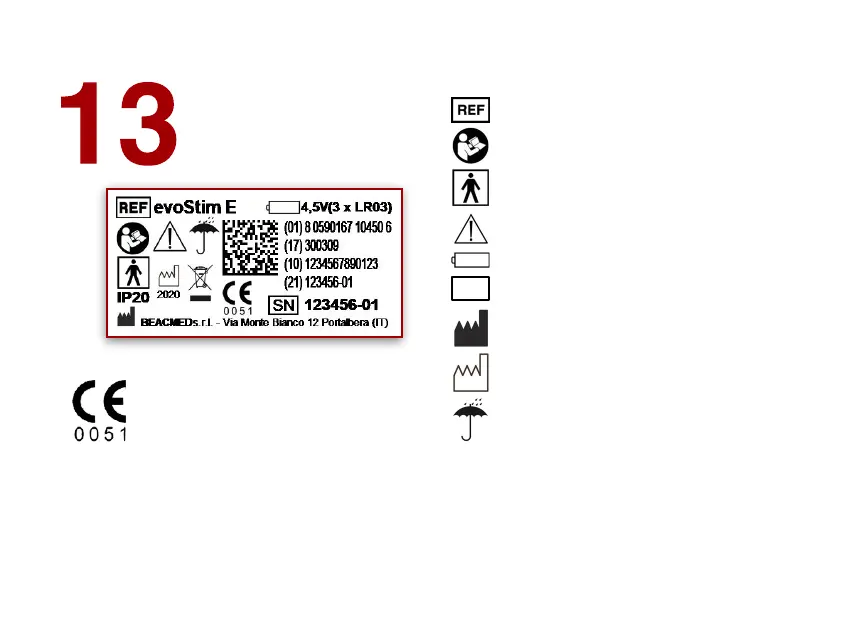

Labelling
!
and symbols
This
product
is
CE
marked
in
accordance
with
Annex
II
of
Directive
93/42
/
EEC
/
MDD,
under
Rule
9
of
Annex
IX.
E
'classified
as
type
IIa
Medical
Device.
No.
0051
indicates
the
Notified
Body
that
issued
the
authorisation
to
the
CE
marking.
CE Marking authorised by the Notified Body IMQ
(0051)
Reference to the catalogue
Follow the user guide.
Applied parts type BF
The appliance emits energy in the form of
electrical impulses.
Battery powered
Serial number
Manufactured by:
Manufactured on:
Keep dry
IP20
Degree of protection against the penetration
of solids and liquids.
SN
36
38
