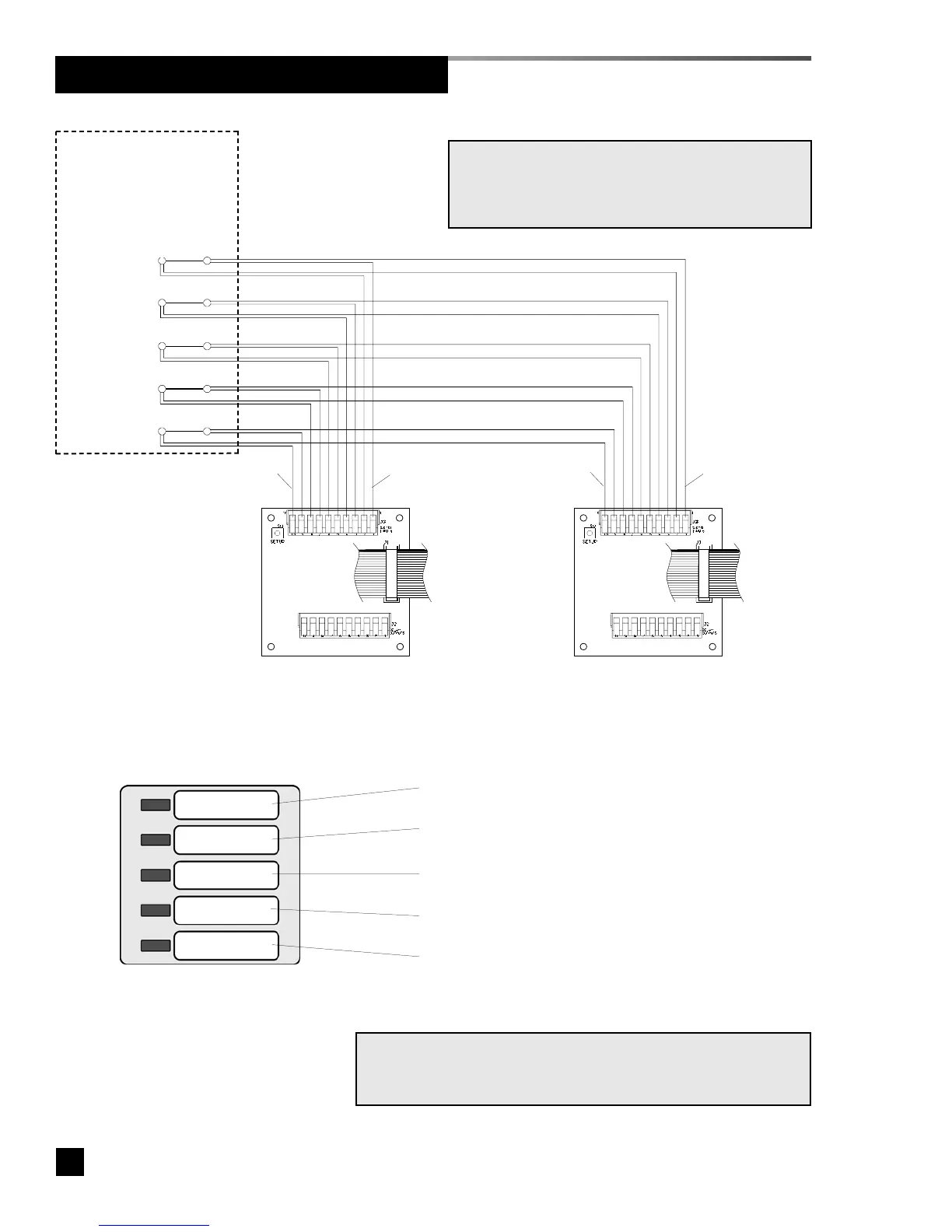

Wiring Schematic 3: Multi-Signal Module
SIGNAL 1
SIGNAL 2
SIGNAL 3
SIGNAL 4
SIGNAL 5
Dry normally-closed
contacts at source
equipment or line
pressure switches
COM
+
COM
+
COM
+
COM
+
COM
+
ribbon to
adjacent
module
ribbon to
adjacent
module
Pin 1
Pin 10
Pin 1
Pin 10
Multi-Signal Module
at FIRST master alarm
panel
Multi-Signal Module
at SECOND master alarm panel
SIGNAL 1 - pin 1 (+), pin 2 (COM)
SIGNAL 2 - pin 3 (+), pin 4 (COM)
SIGNAL 3 - pin 5 (+), pin 6 (COM)
SIGNAL 4 - pin 7 (+), pin 8 (COM)
SIGNAL 5 - pin 9 (+), pin 10 (COM)
NOTE:
Installer assigns source signals to desired front panel locations
and installs provided labels (Refer to Figure 23, page 31).
Multi-Signal Module front panel
NOTE:
Field wiring cable shields must be grounded at
only one end, inside alarm panel back box. Refer
to page 31 for details.
