BeaconMedaes MEGA 2 - Sensor Components

52
Part No. 6-847684-00 Rev. D01
Replacement Parts

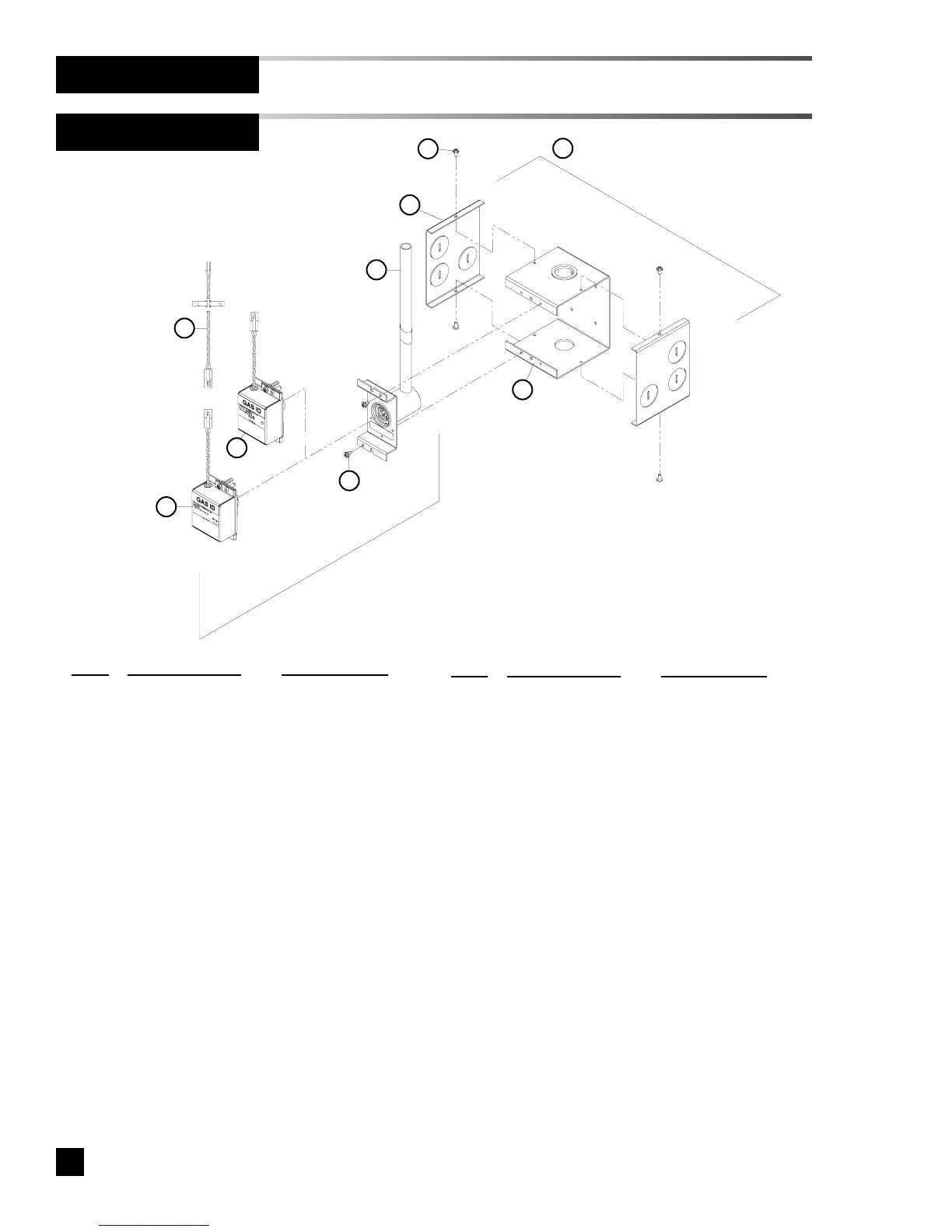

Sensor Components
Applicable to both local and
remote sensor mounting
Remote sensor mounting only
1
2
9
6
7
4
5
ITEM PART NUMBER DESCRIPTION
1 6-814669-00 Screw - #6-20 x 1/4”,
Pan Head, Self-Tap
2 6-425428-00 End Cap
3 Sensor Mounting Assy.
(incl. items 1,2,6,7& 9)
- 6-129340-10 Oxygen
- 6-129340-11 Nitrous Oxide
- 6-129340-12 Medical Air
- 6-129340-13 Vacuum
- 6-129340-14 Nitrogen
- 6-129340-16 Air (ISO)
- 6-129340-17 Vacuum (ISO)
- 6-129340-18 Instrument Air
- 6-129340-19 WAGD
- 6-129340-20 Carbon Dioxide
- 6-129340-21 CO2/O2
- 6-129340-22 O2/CO2
- 6-129340-23 He/O2
- 6-129340-24 O2/He
- 6-129340-25 Helium
- 6-129340-26 Lab Air
- 6-129340-27 Lab Vacuum
- 6-129340-28 O2 (100 PSI)
- 6-129340-29 Air (100 PSI)
- 6-129340-30 CO2 (100 PSI)
ITEM
PART NUMBER
DESCRIPTION
4 6-231935-00 Sensor Pigtail
5 Analog Sensor
- 6-231760-00 Oxygen
- 6-231761-00 Nitrous Oxide
- 6-231762-00 Medical Air
- 6-231763-00 Vacuum
- 6-231764-00 Nitrogen
- 6-231765-00 Helium
- 6-231766-00 Lab Air
- 6-231767-00 Lab Vacuum
- 6-231768-00 Instrument Air
- 6-231769-00 WAGD
- 6-231770-00 Carbon Dioxide
- 6-231771-00 CO2/O2
- 6-231772-00 O2/CO2
- 6-231773-00 He/O2
- 6-231774-00 O2/He
- 6-231776-00 Air (ISO)
- 6-231777-00 Vacuum (ISO)
- 6-231778-00 Oxygen (100PSI)
- 6-231779-00 Air (100 PSI)
- 6-231780-00 CO2 (100 PSI)
6 6-814669-00 Screw - #6-20 x 1/4”,
Pan Head, Self-Tap
7 6-425555-00 Mounting Box
3
8
