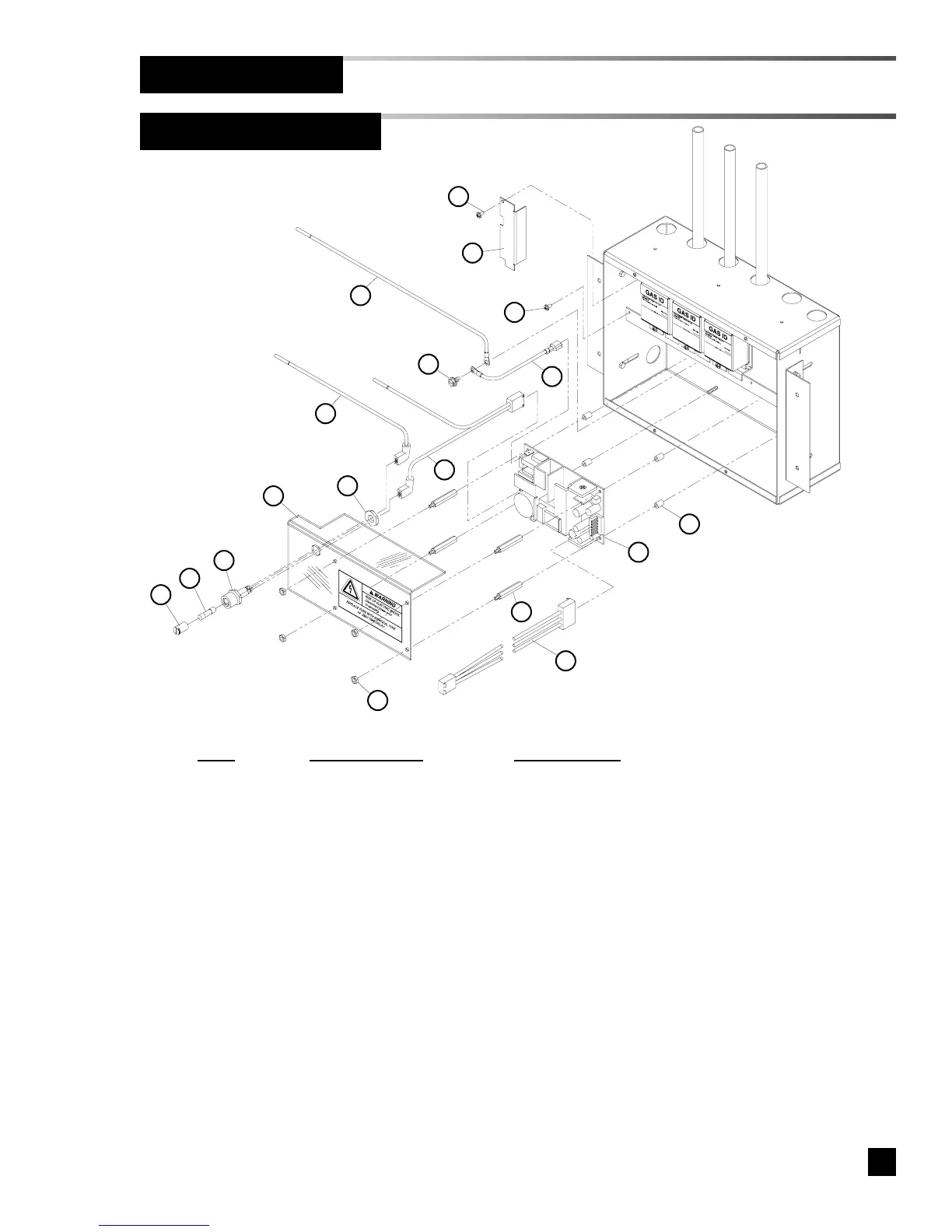

Replacement Parts
Back Box Components
4
5
6
7
8
9
10
11
12
13
14
15
16
18
17
1
ITEM PART NUMBER DESCRIPTION
1 6-814669-00 Screw - #6-20 x 1/4”, Pan Head, Self-Tapping
2 6-425458-00 Shield
3 6-814669-00 Screw - #6-20 x 1/4”, Pan Head, Self-Tapping
4 6-231938-00 Wire Harness - Power Supply Ground
5 6-231941-00 Wire Harness - Ground
6 6-814008-00 Screw - Grounding
7 6-231937-00 Wire Harness - AC Input
8 6-231939-00 Wire Harness - Fuse
9 Included In Item 11 Nut - Fuse Holder
10 6-616506-00 Shield - Power Supply
11 6-865500-00 Fuse Holder
12 6-865546-00 Fuse - 1.0 Amp, 250VAC, Time Delay
13 Included In Item 11 Fuse Holder Cap
14 6-827530-00 Nut - #6-32, Keps
15 6-231936-00 Wire Harness - Power Supply DC Output
16 6-829628-00 Standoff
17 6-867540-00 Power Supply Assembly
18 6-831904-00 Spacer
3
2
To Next Page
