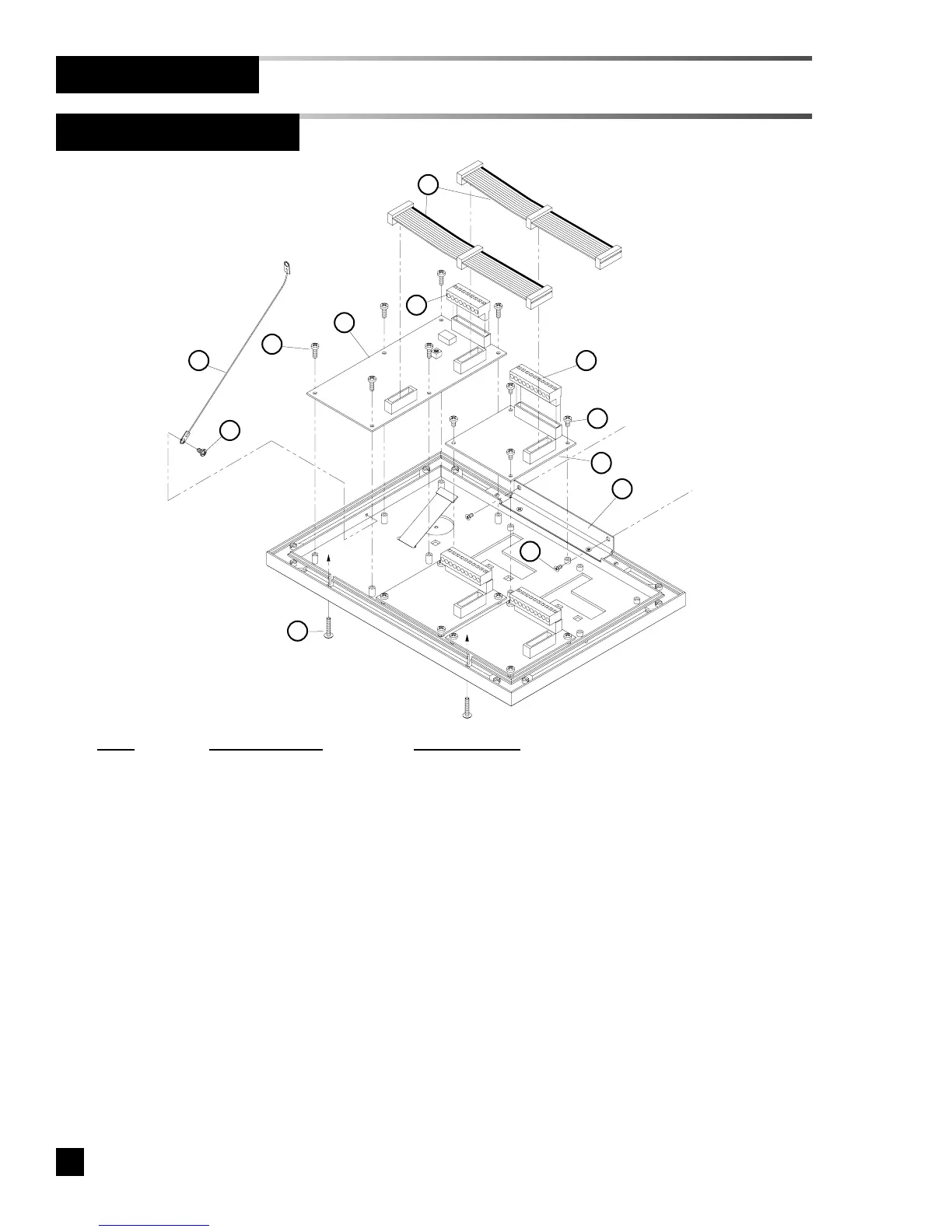

BeaconMedaes MEGA 2 - Replacement Parts; Front Panel Components

50
Part No. 6-847684-00 Rev. D01
1
2
3
12
11
9
10
8
7
Replacement Parts
ITEM
PART
NUMBER DESCRIPTION
1 6-868163-00 20-wire Ribbon Cable (4-module alarm box)
- 6-868164-00 20-wire Ribbon Cable (8-module alarm box)
2 6-865315-00 Field Wiring Connector - Annunciator Module
3 6-231982-00 Circuit Board - Annunciator Module (includes item 2)
- 6-231982-RL Circuit Board - Annunciator Module with Auxiliary Relay
(includes item 2)
4 6-811611-00 Screw - #6-32 x 7/16”, Pan Head
5 6-838104-00 Lanyard
6 6-814669-00 Screw - #6-20 x 1/4”, Pan Head, Self-Tapping
7 6-811752-00 Screw - #6-32 x 1-1/4”, Pan Head
8 6-811058-00 Screw - #4-40 x 1/4”, Flat Head
9 6-838982-00 Hinge
10 6-231980-00 Circuit Board - Digital Display Module (includes item 12)
- 6-231981-00 Circuit Board - Multi-Signal Module (includes item 12)
- 6-231981-RL Circuit Board - Multi-Signal Module with Relays (includes item 12)
11 6-811608-00 Screw - #6-32 x 1/4”, Pan Head
12 6-865316-00 Field Wiring Connector - Digital Display/Multi-Signal Module
4
6
5
Front Panel Components
