4
Part No. 6-847684-00 Rev. D01

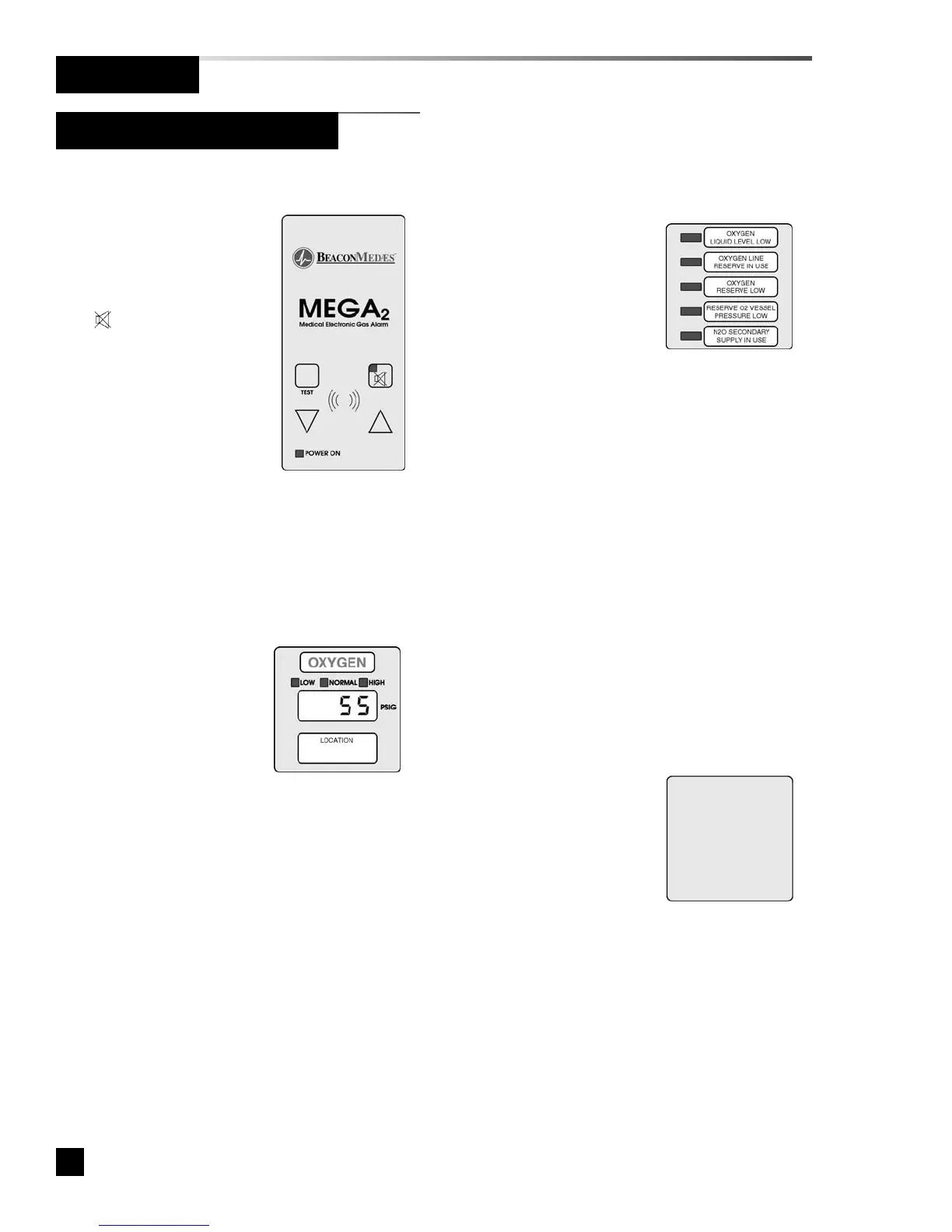

Annunciator Module
Features:
• User interface
pushbuttons for alarm
panel TEST function,
audible alarm MUTE
and set-up increase
! and decrease ".
• Green alarm panel
POWER ON and red
audible alarm mute
indicators.
• Audible alarm with
volume control.
• Network wiring terminals and test
connector.
• General fault relay that activates on any
alarm panel fault condition.
Alarm Modular Components
Introduction
Digital Display Module
Features:
• Digital LED readout
of system pressure
signal transmitted
from sensor module.
• Adjustable
brightness of digital
LED readout.
• Individual LED’s indicate when system
pressure/vacuum is HIGH (red), LOW
(red), or NORMAL (green).
• Programmable high and low alarm
thresholds.
• Adjustable audible alarm mute duration.
• Individual high and low alarm dry-contact
relay outputs.
• Can transmit pressure or vacuum signal to
another digital display module for remote
applications.
• Can be networked to communicate with a
personal computer or Johnson Controls
Metasys® building automation
system(using Metasys Integrator).
Multi-Signal Module
Features:
• Monitors up to five
normally closed dry-
contact switch
signals.
• Separate indicators
for each of five
signals for normal
(green) or abnormal (red) conditions.
• Available (optional) with separate dry-
contact relay outputs for each of five
signals.
• Can be networked to communicate with a
personal computer or Johnson Controls
Metasys® building automation system
(using Metasys Integrator).
Blank Module
Features:
• Reserves a space in
alarm panel for
future expansion.
• Used to fill unused
alarm panel module
locations.
To Next Page
