Part No. 6-847684-00 Rev. D01

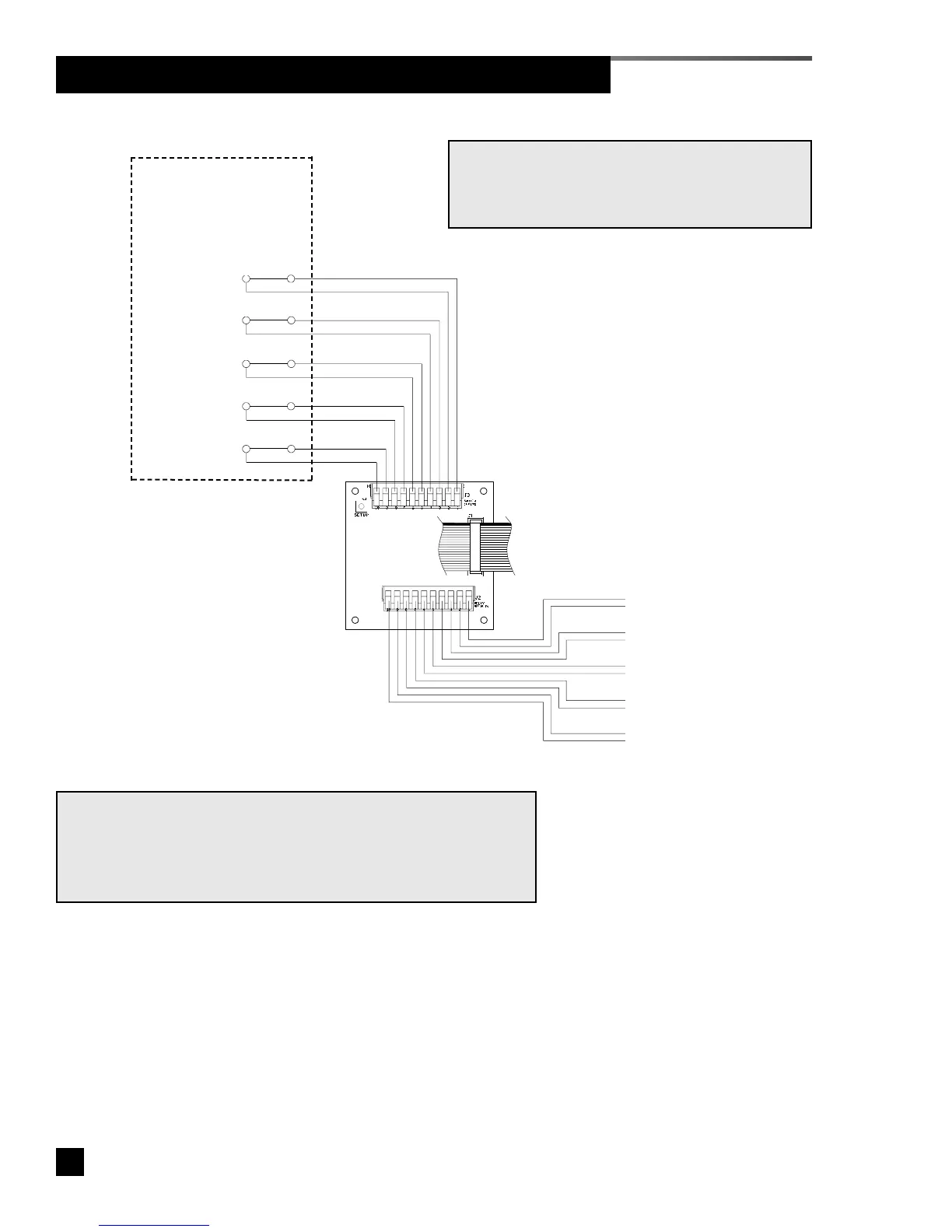

Wiring Schematic 5: Multi-Signal Module Relays (Optional)

SIGNAL 1

SIGNAL 2

SIGNAL 3

SIGNAL 4

SIGNAL 5

Dry normally-closed

contacts at source

equipment or line

pressure switches

COM

Multi-Signal Module

ribbon to

adjacent

module

SIGNAL 1 - pins 1 & 2

SIGNAL 2 - pins 3 & 4

SIGNAL 3 - pins 5 & 6

SIGNAL 4 - pins 7 & 8

SIGNAL 5 - pins 9 & 10

Dry normally-closed output

relay contacts

NOTE:

Output relay contacts are dry normally closed type. Contacts open

upon designated alarm activation. Contacts remain open until

alarm condition is corrected. Alarm mute DOES NOT affect relay

condition.

Relay contact ratings are 2 A @ 30 VDC/0.5 A @ 125 VAC

NOTE:

Field wiring cable shields must be grounded at

only one end, inside alarm panel back box. Refer

to page 31 for details.
