BeaconMedaes MEGA 2 - Page 21

21
Part No. 6-847684-00 Rev. D01

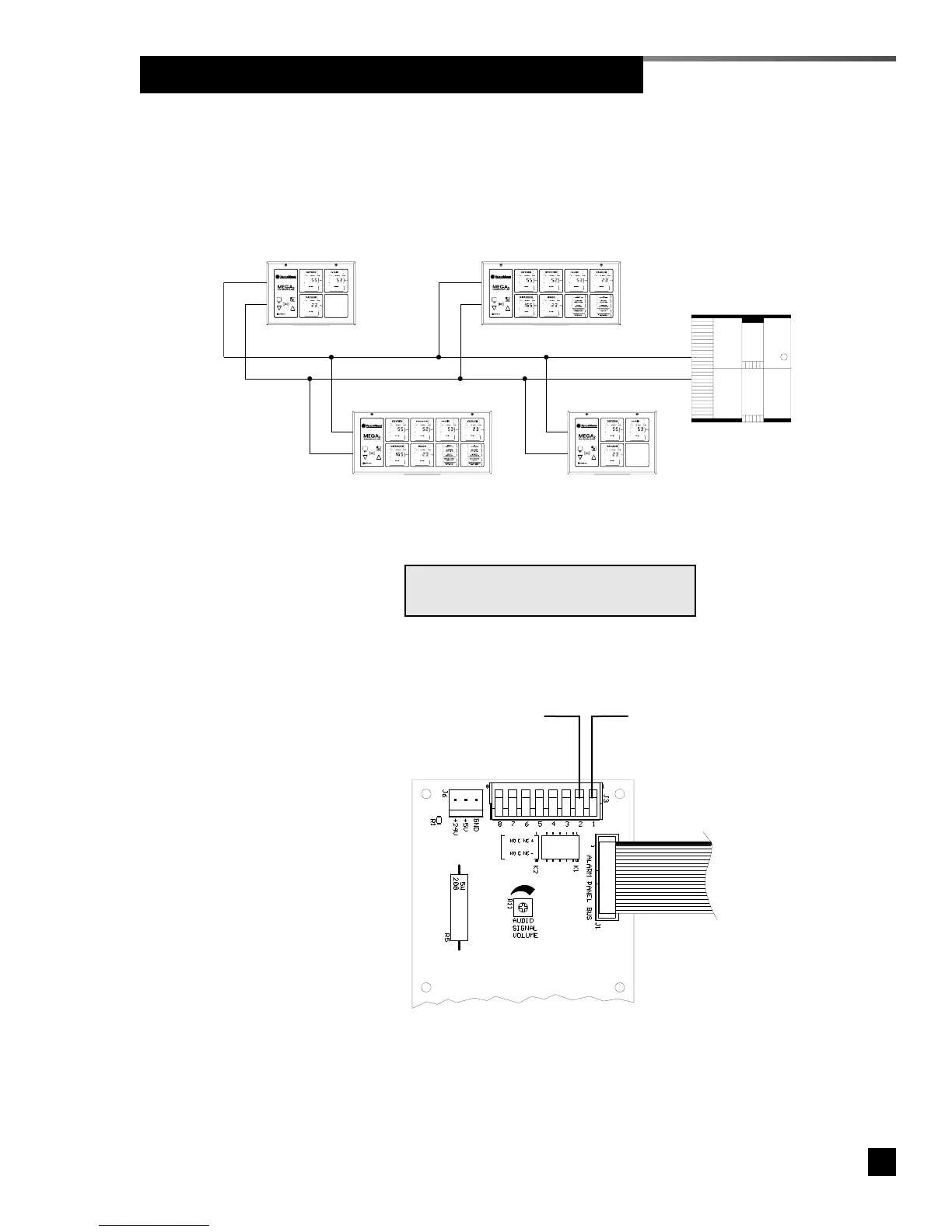

Wiring Schematic 9: Johnson Controls METASYS®
Johnson Controls
METASYS® or
compatible building
automation system
(Metasys Integrator)
Serial +
Serial -
Annunciator Module of each alarm panel
connected to the network shown above
Serial
+ (pin 1)
Serial - (pin 2)
NOTE:
Maintain correct network wiring polarity.
