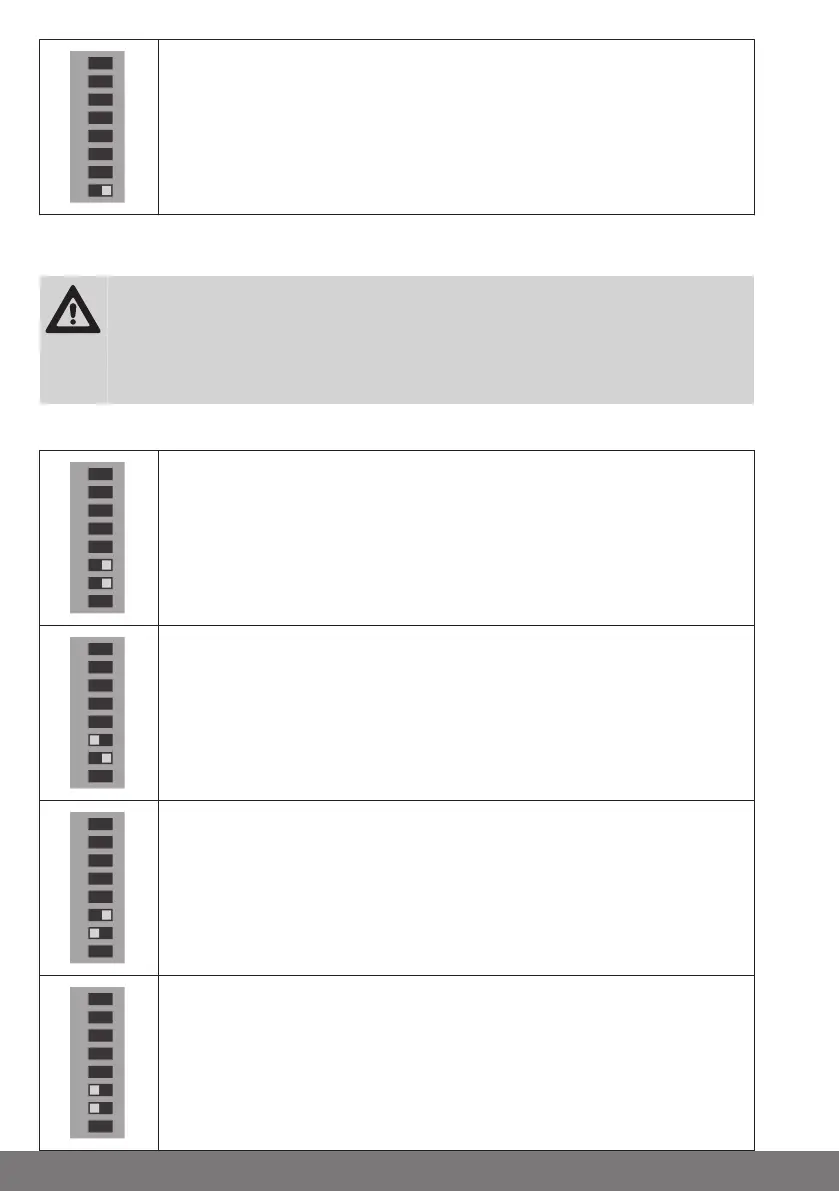

Door mode
The control unit is ready for operation. Limit position detection and run‐
ning time monitoring are on.
Closing edge safety device
Caution
In the maintained operation mode, the system must be equipped with a
safety contact rail. The sensor of the safety contact rail must be fitted.
Please ensure that main and auxiliary closing edges are adequately se‐
cured and that the permitted closing edge forces are not exceeded!
1
4
7
2
5
83 6
ON
DIP
Dead-man mode
The door can only be controlled using hard-wired device (e.g. push-
button). In the DOWN direction, the DOWN button must be permanently
held down. In the UP direction, the door travels in maintained opera‐
tion. The hand-held transmitter can only be used for travel in the UP di‐
rection.
1
4
7
2
5
83 6
ON
DIP
Closing edge stop mode
While the door is closing, the light barrier or safety edge is activated.
The door stops as soon as the safety edge is activated or the light barri‐
er is interrupted. No function in the UP direction. After encountering an
obstruction, the door must first clear the obstruction before it can be
lowered again.
1
4
7
2
5
83 6
ON
DIP
Closing edge reverse travel mode (clearing an obstruction)
While the door is closing, the light barrier or safety edge is activated.
The door stops and reverses as soon as the safety edge is activated or
the light barrier is interrupted. No function in the UP direction.
1
4
7
2
5
83 6
ON
DIP
Closing edge reopening travel mode
While the door is closing, the light barrier or safety edge is activated.
The door stops and travels to the upper limit position as soon as the
safety edge is activated or the light barrier is interrupted. No function in
the UP direction.
