Configuration
1

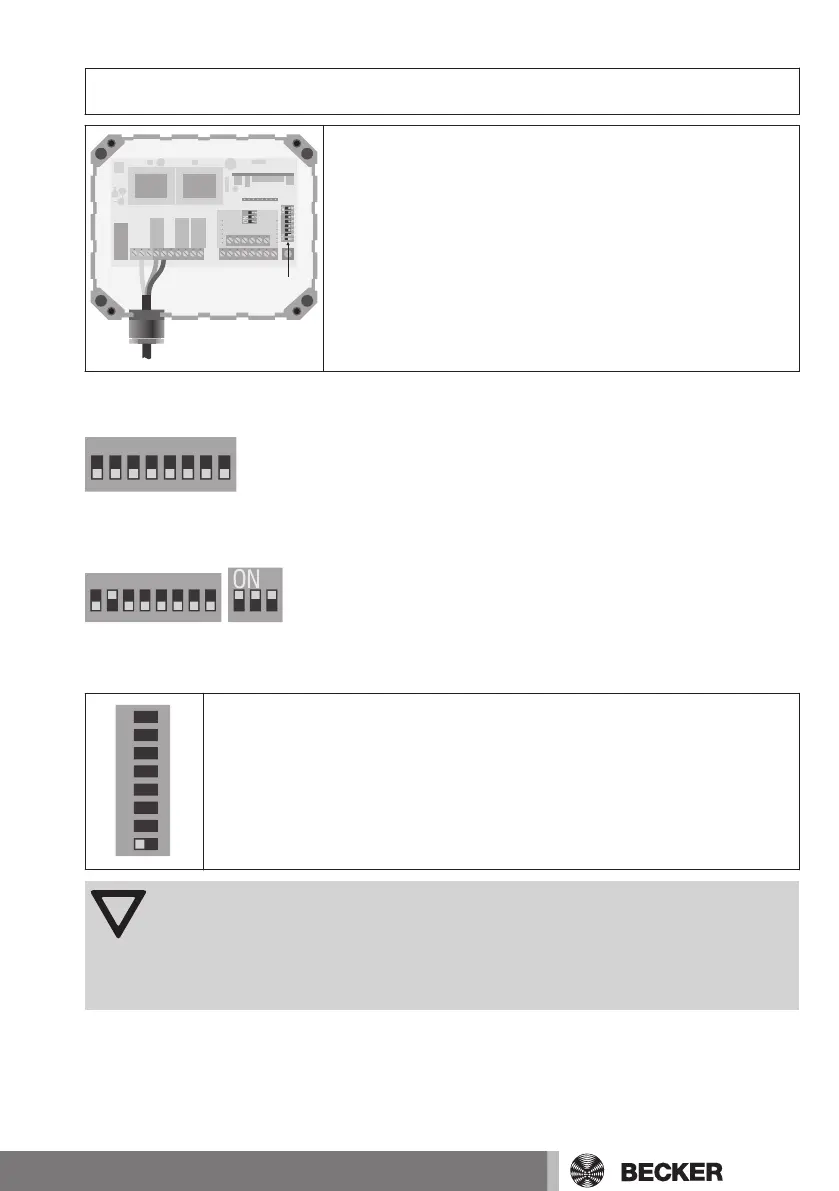

Using the 8 DIP switches (1), you can configure the con‐
trol unit according to your requirements:
▪ Mode
▪ Closing edge safety device
▪ Outdoor light or advance warning light
▪ Automatic closing
Factory settings
Dead-man operating mode factory setting:
1
4
72
5
83 6
ON
DIP
Maintained operation mode factory setting:
(only with safety contact rail sensor):
1
4
72
5
83 6
ON
DIP
1
2
3
Operating mode
1
4
7
2
5
83 6
ON
DIP
Setting mode
Limit position detection and running time monitoring are off. The con‐
trol unit does not switch off the power to the tubular drive once a limit
position has been reached, so the limit position of the door system can
be adjusted while it is live. This ensures that the door system directly
follows the settings of the limit switches. To disconnect from the power
supply, press the STOP button.
Attention
The setting mode is only suitable for tubular drives with mechanical
limit switching. Once the settings are complete, DIP switch 1 must be
set to OFF (door mode). Operating the door in the setting mode is not
permitted!
