Mounting and wiring
Real-time Ethernet port multiplier 23
Version: 2.6
3 Mounting and wiring
3.1 Dimensions
Dimensions without plugs (W x H x D)
• CU2508: approx. 146.5 mm x 100 mm x 38 m
Space requirement in the control cabinet
• The RJ45 connector increase the depth depending on their design and the Ethernet cable used.
• Above the mounting rail an additional height of approx. 10 mm is required to enable latching
[}24] of the switch onto the rail.

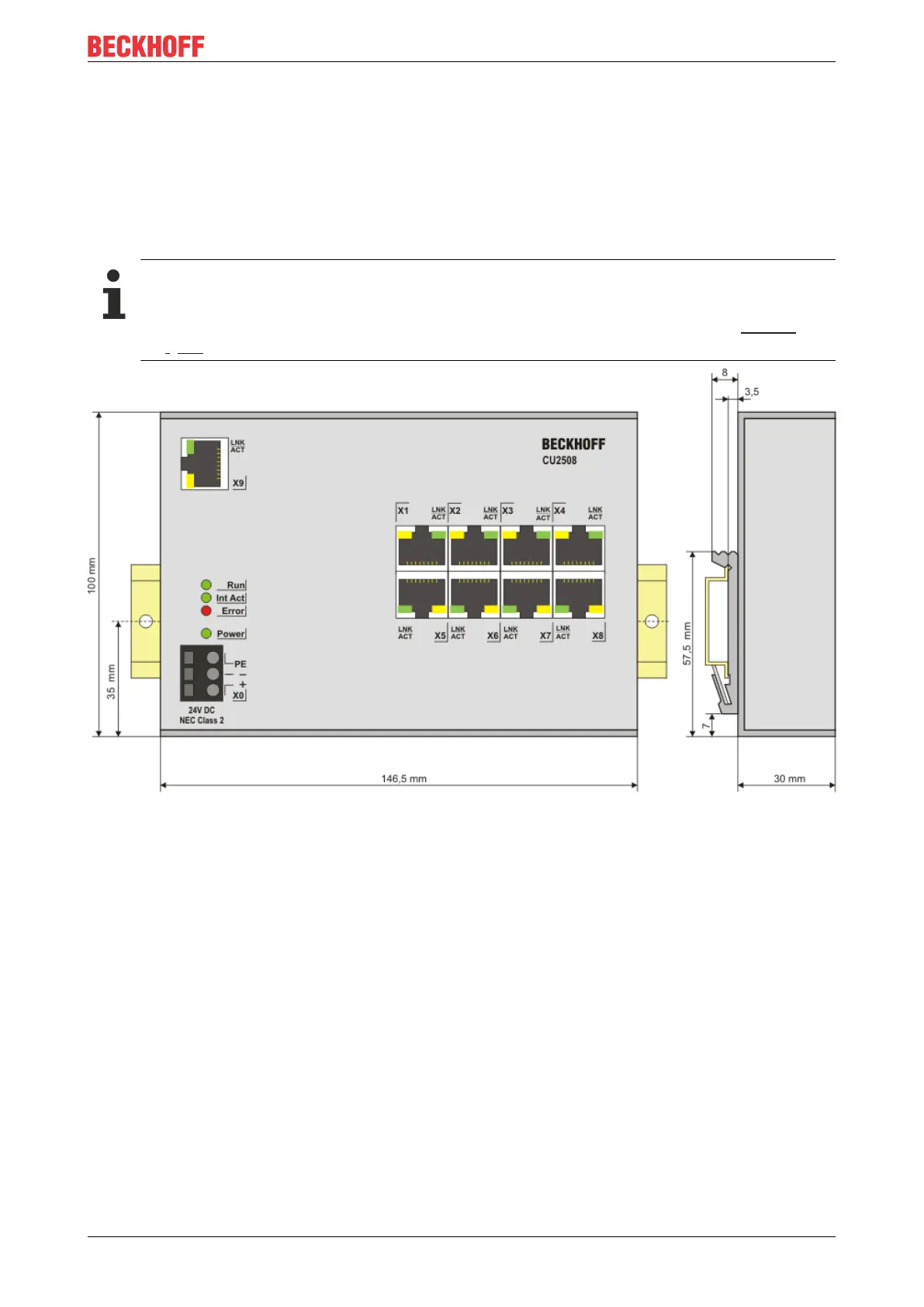

Fig.20: CU2508 dimensions
