Mounting and wiring
Real-time Ethernet port multiplier 25
Version: 2.6

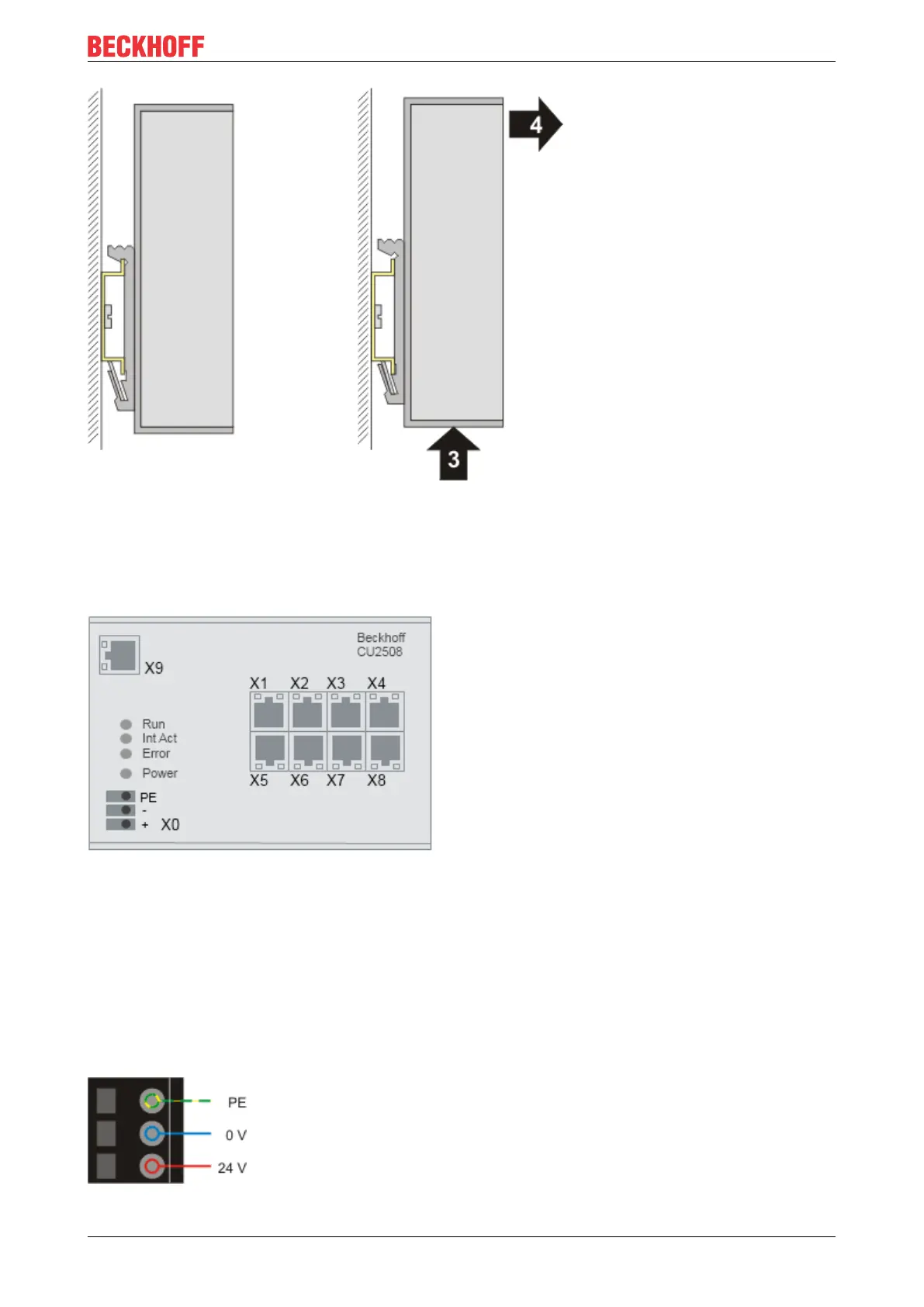

Fig.22: Removal
3.2.1 Diagnostic LEDs
The CU2508 has 4 diagnosis LEDs.
Fig.23: CU2508 front view
The CU2508 currently has no further diagnostic features.
3.3 Cabling
Power supply
Pin configuration of the spring loaded terminal
Fig.24: CU20xx_PowerClamp
