Mounting and wiring

Real-time Ethernet port multiplier24

Version: 2.6

3.2 Mounting and demounting

The CU2xx switches are mounted on the mounting surface with the aid of a 35mm DIN rail (mounting rail

according to EN60715).

Mounting

• Fit the mounting rail to the planned assembly location.

• Suspend the switch on the mounting rail with the spring on the lower side of its latching flange.

• Press the switch upwards (1).

• Press the upper side of the switch (2) against the assembly surface until it latches in the mounting rail.

• Attach the cable.

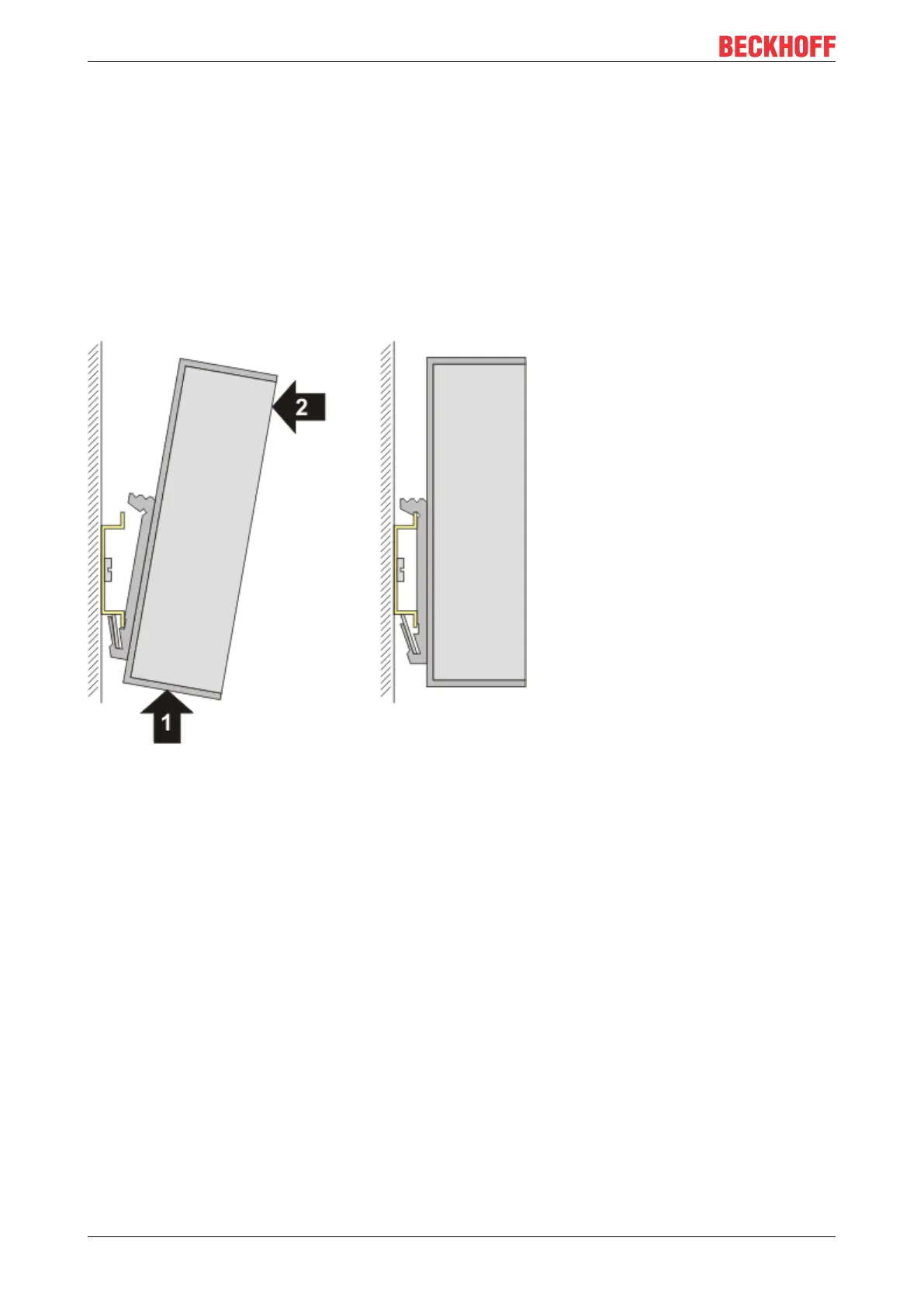

Fig.21: Mounting

Removal

• Remove all the cables.

• Press the switch upwards (3).

• Pull the other side of the switch (4) away from the assembly surface.
