Commissioning
Real-time Ethernet port multiplier 31
Version: 2.6

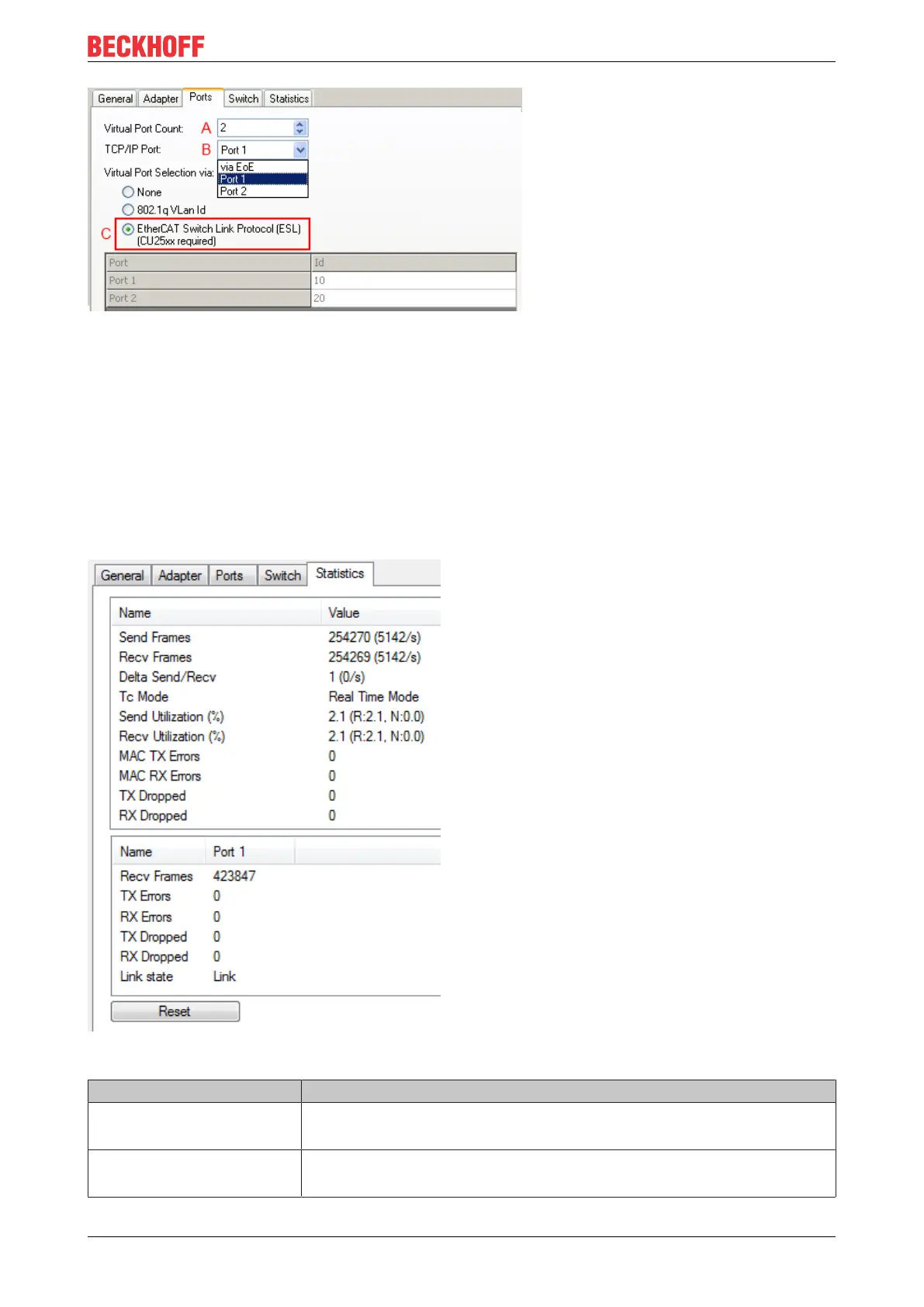

Fig.33: Number of adapters
The CU2508 has no separate diagnostic variables, since it is designed to be as transparent an infrastructure
device as possible.
In the following
• individual downlink ports can now be assigned to protocols
• the TCP/IP behavior of the CU2508 can be set
Diagnosis
The TwinCAT System Manager provide several information about the online operation.
Fig.34: Statistics
Name Explanation
Send Utilization (%) Utilization of the Gbit ESL transmission in transmit direction
R: real-time data, N: non-real-time data
Recv Utilization (%) Utilization of the Gbit ESL transmission in receive direction
R: real-time data, N: non-real-time data
