Commissioning
Real-time Ethernet port multiplier 51
Version: 2.6
A Control Word can be written in the FrameCtrl output under the box.
The following values are possible for FrameCtrl:
Short description Value Description
Disable sending 0x0001 Sending of a frame is interrupted. Sending of the frame does not
restart until the value is 0 again.
The VarState input under the network variable indicates the current status of the network variable.
The following values are possible for VarState:
Short description Value Description
Not sent (variable skipped) 0x0001
A Control Word can be written in the VarCtrl output under the network variable.
The following values are possible for FrameCtrl:
Short description Value Description
Disable publishing 0x0001 Sending of the network variable is interrupted. Sending of the
network variable does not restart until the value is 0 again.
Mappings
The network variable of the Publisher can be mapped to any output variable with a suitable data type. In the
example, the network variable is linked to the output variable of a PLC.

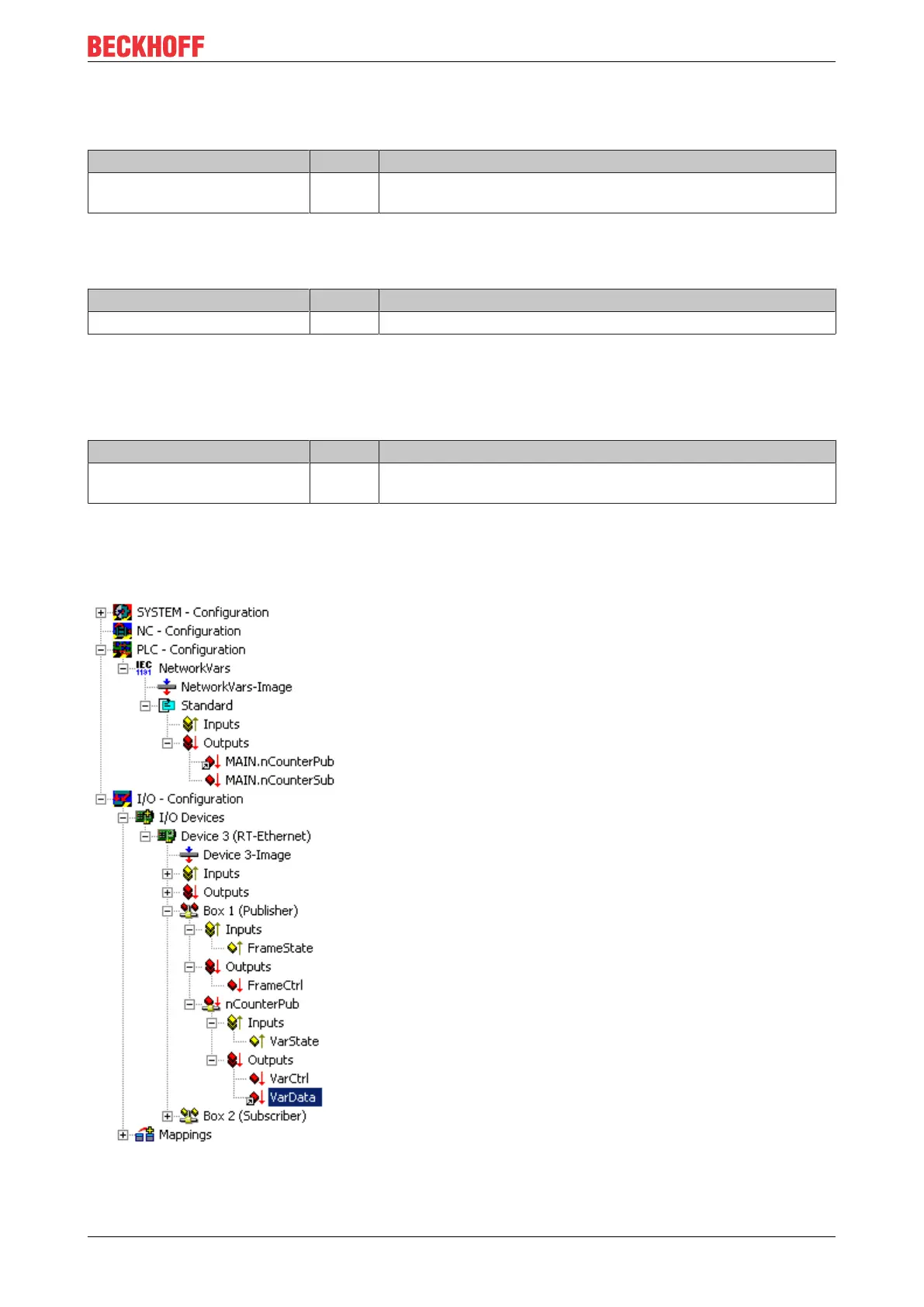

Fig.69: Mapping of the network variable with an output variable of the PLC
