Commissioning
EL500x146 Version: 3.6
Object „TSC Settings”
Depending on the terminal, the index designation of the configuration object „TSC Settings“ can
vary.
Example:
- EL3214-0090 and EL3314-0090, „TSC Settings“, Index 8040
- EL5021-0090, „TSC Settings“, Index 8010
- EL6224-0090, „TSC Settings“, Index 800F

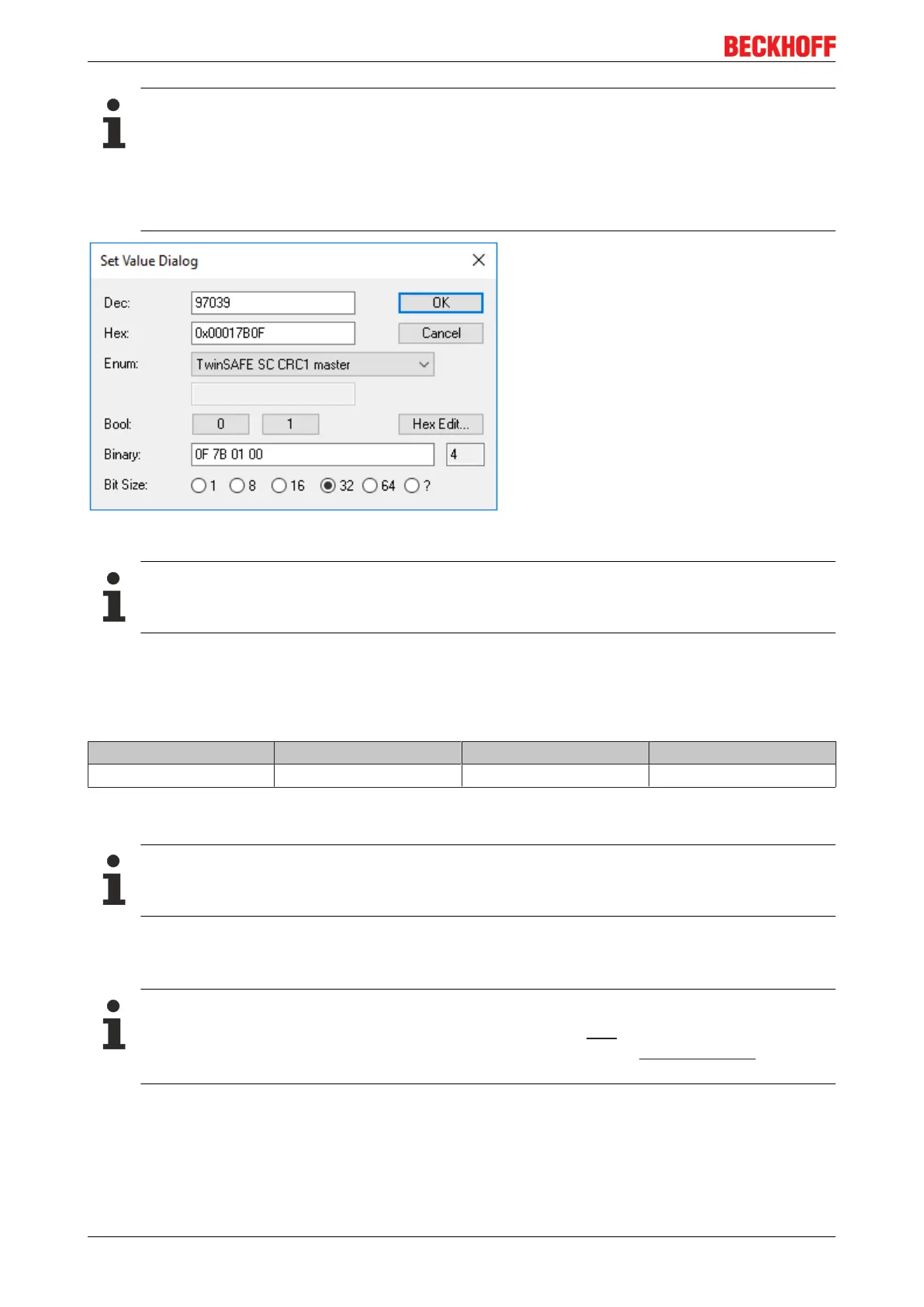

Fig.156: Entering the safety address and the CRC
TwinSAFE SC connections
If several TwinSAFESC connections are used within a configuration, a different CRC must be se-
lected for each TwinSAFESC connection.
5.6.2 TwinSAFE SC process data EL5001-0090
The EL5001-0090 transmits the following process data to the TwinSAFE logic:
Index (hex) Name Type Size
6000:11 Counter value UDINT 4.0
Depending on the TwinCAT 3.1 version, process data can be renamed automatically when linking to the
Safety Editor.
TwinSAFE SC Objects
The TwinSAFE SC objects of the EL5001-0090 are listed in chapter Objects TwinSAFE Single
Channel (EL5001-0090).
5.6.3 Object description and parameterization
EtherCAT XML Device Description
The display matches that of the CoE objects from the EtherCAT XML Device Description. We rec-
ommend downloading the latest XML file from the download area of the Beckhoff website and in-
stalling it according to installation instructions.
