Product overview
EL9xxx64 Version: 3.9

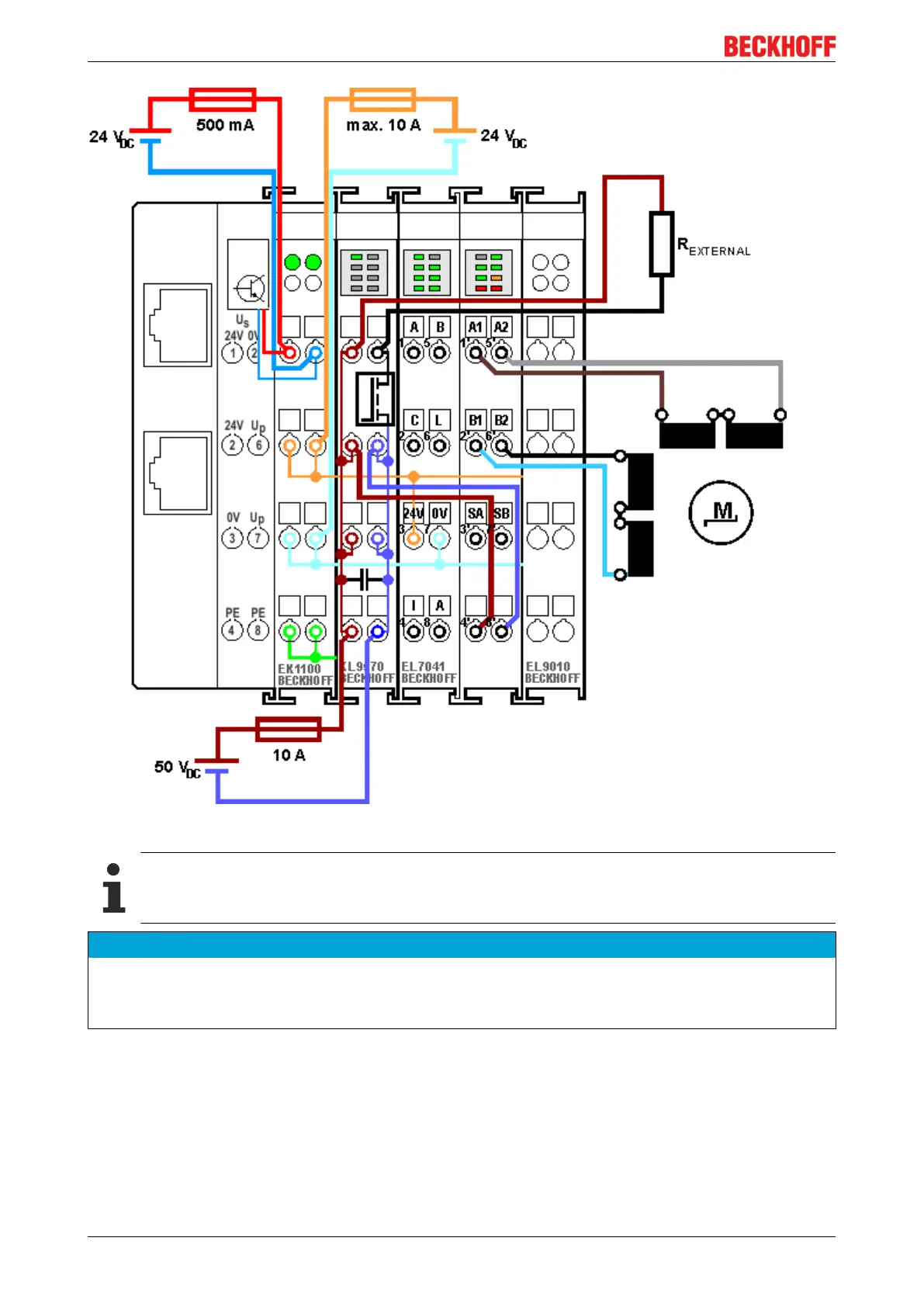

Fig.47: Application example EL9570
More motors
A capacitor EL9570 terminal is able to condition the power supply of several motors.
NOTE
Dimensioning of the brake resistor
The brake resistor R
EXTERNAL
(typically 10 Ω) should be dimensioned in that way, that it can stand the ex-
pected heat without damage!
