Beckhoff EL9 Series - El9250, El9260; EL9250, EL9260 - Introduction and Technical Data; Fig. 38 EL9250; Fig. 39 EL9260

Product overview
EL9xxx52 Version: 3.9
3.10 EL9250, EL9260
3.10.1 EL9250, EL9260 - Introduction and Technical Data

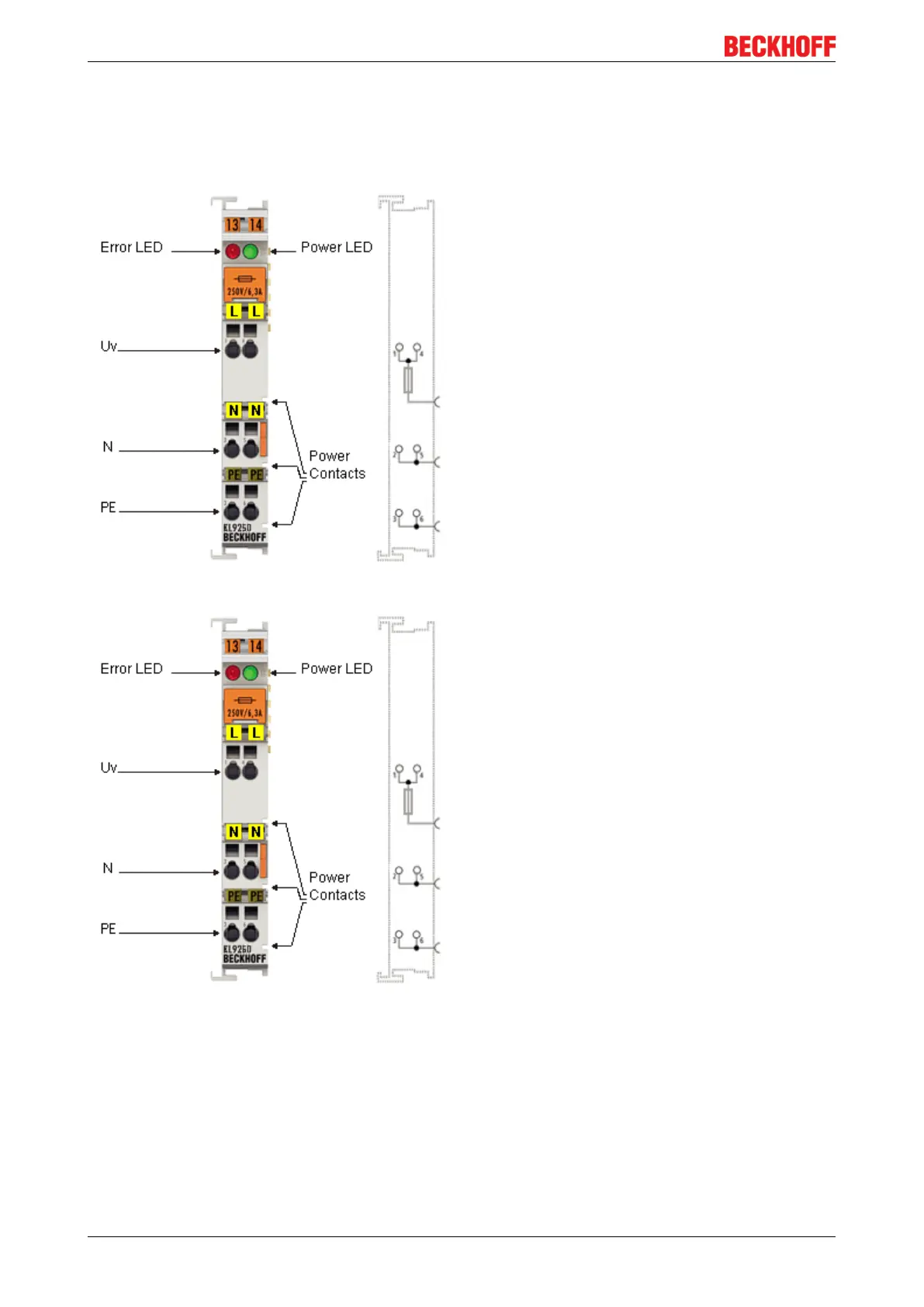

Fig.38: EL9250
Fig.39: EL9260
The EL9250 / EL9260 feed terminal can be positioned at any location between the input and output terminals
for establishing a further potential group or for supplying the terminals following on the right in applications
with high current load. The E-Bus is looped through. As opposed to the EL9250, the EL9260 has a
diagnostic function which is displayed on the process image.
