Product overview
EL9xxx22 Version: 3.9

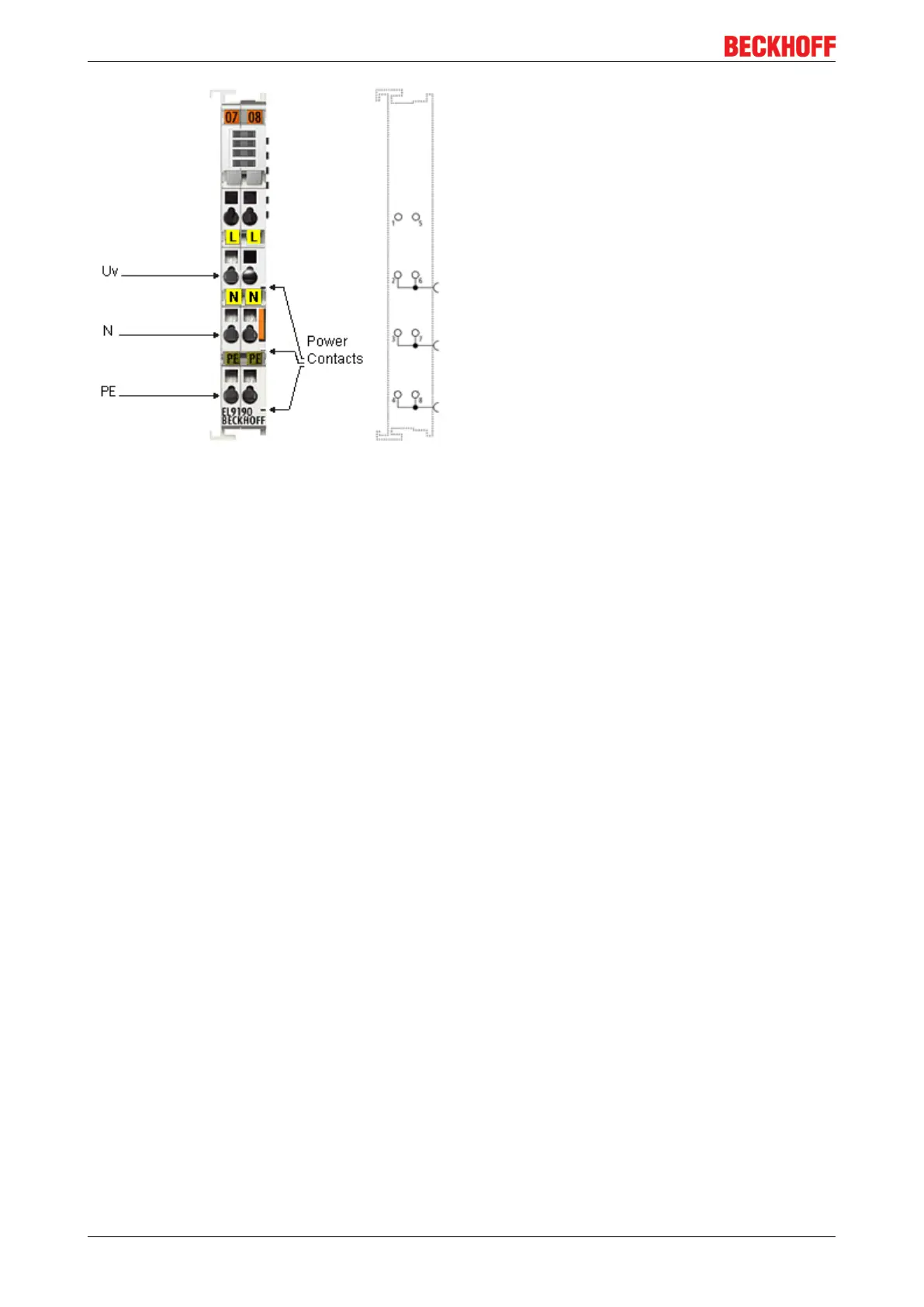

Fig.17: EL9190
The EL9100 / EL9110 / EL9190 feed terminal can be positioned at any location between the input and output
terminals for establishing a further potential group or for supplying the terminals following on the right in
applications with high current load. The E-Bus is looped through. As opposed to the EL9100 / EL9190, the
EL9110 has a diagnostic function which is displayed on the process image.
