Beckhoff EL9 Series User Manual

Product overview
EL9xxx 19Version: 3.9
3.2 EL9070
3.2.1 EL9070 - Introduction and Technical Data

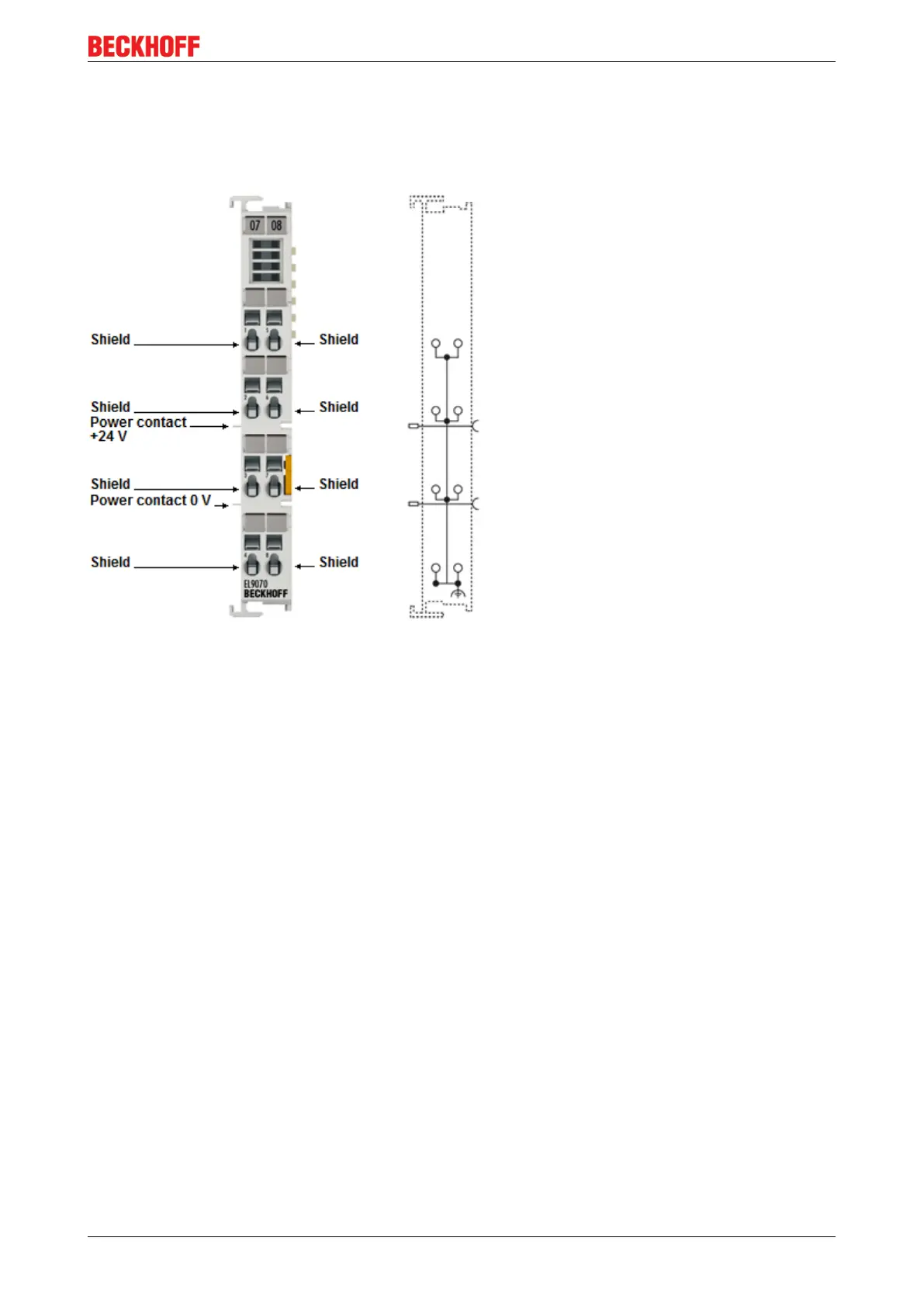

Fig.14: EL9070
The EL9070 shield terminal provides eight terminal points with the potential of the mounting rail and enables
the screening to be picked up without further modular terminal blocks or wiring. With its internal seamless
copper surface, the EL9070 offers good screening between two EtherCAT Terminals.
