Beckhoff EL9 Series - Fig. 32 EL9189

Product overview
EL9xxx42 Version: 3.9

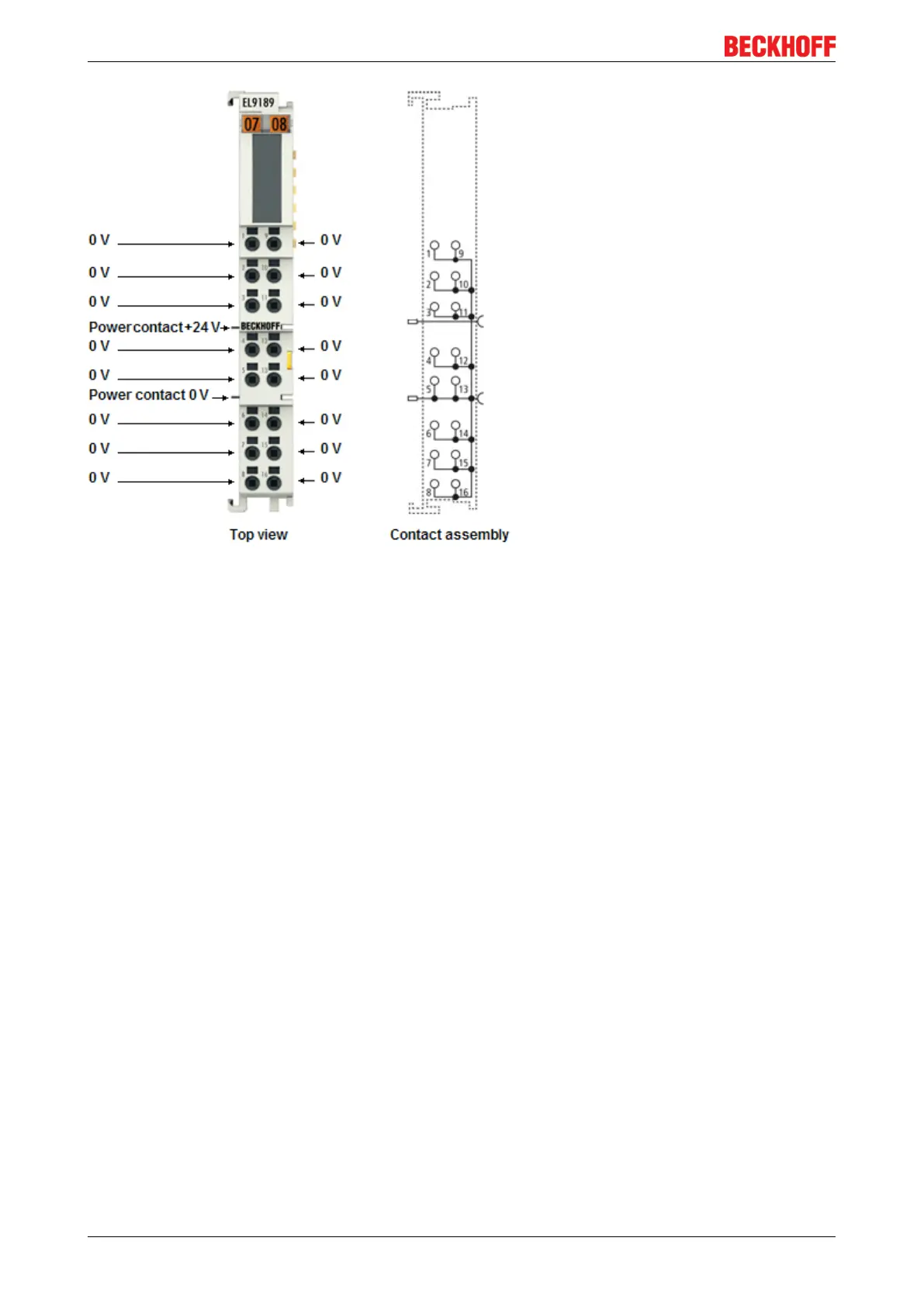

Fig.32: EL9189
The potential distribution terminals EL9188 and EL9189 provide 16 terminal points with a potential and
enable the voltage to be picked up without further bus terminal blocks or wiring.
The EL9184 provides the potential of the 24 V DC contact at 8 terminal points and the potential of the 0 V
contact at 8 terminal points.
The conductors can be connected without tools in the case of solid wires using a direct plug-in technique.
The HD EtherCAT Terminals (High Density) with increased packing density feature 16 connection points in
the housing of a 12 mm terminal block.
