Product overview
EL9xxx 39Version: 3.9
EL9186, EL9187

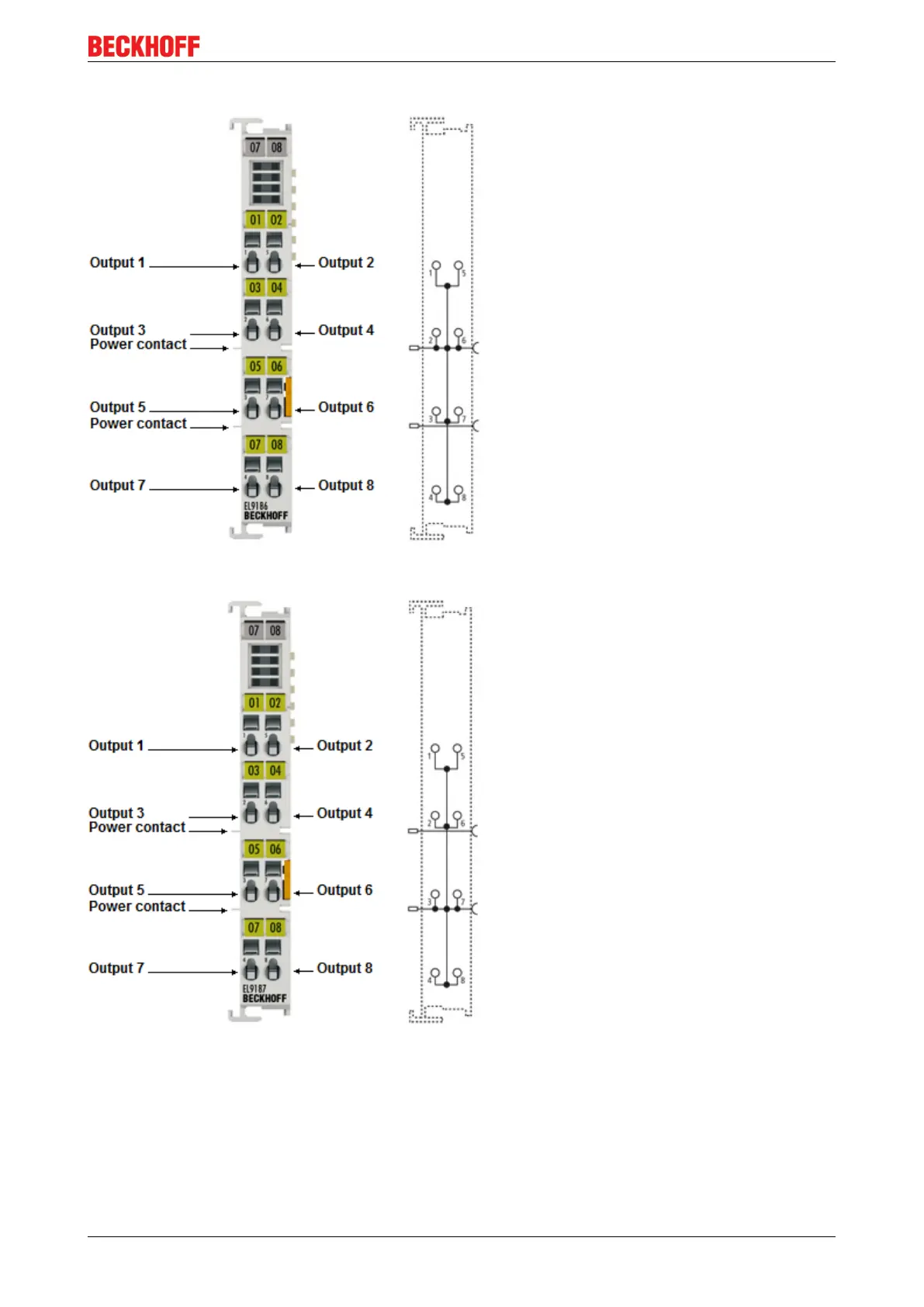

Fig.28: EL9186
Fig.29: EL9187
The potential distribution terminals EL9186 and EL9187 provide 8 terminal points with a potential and enable
the voltage to be picked up without further bus terminal blocks or wiring.
