Beckhoff XPlanar User Manual

Product overview
Version: 1.0 ─── 25XPlanar

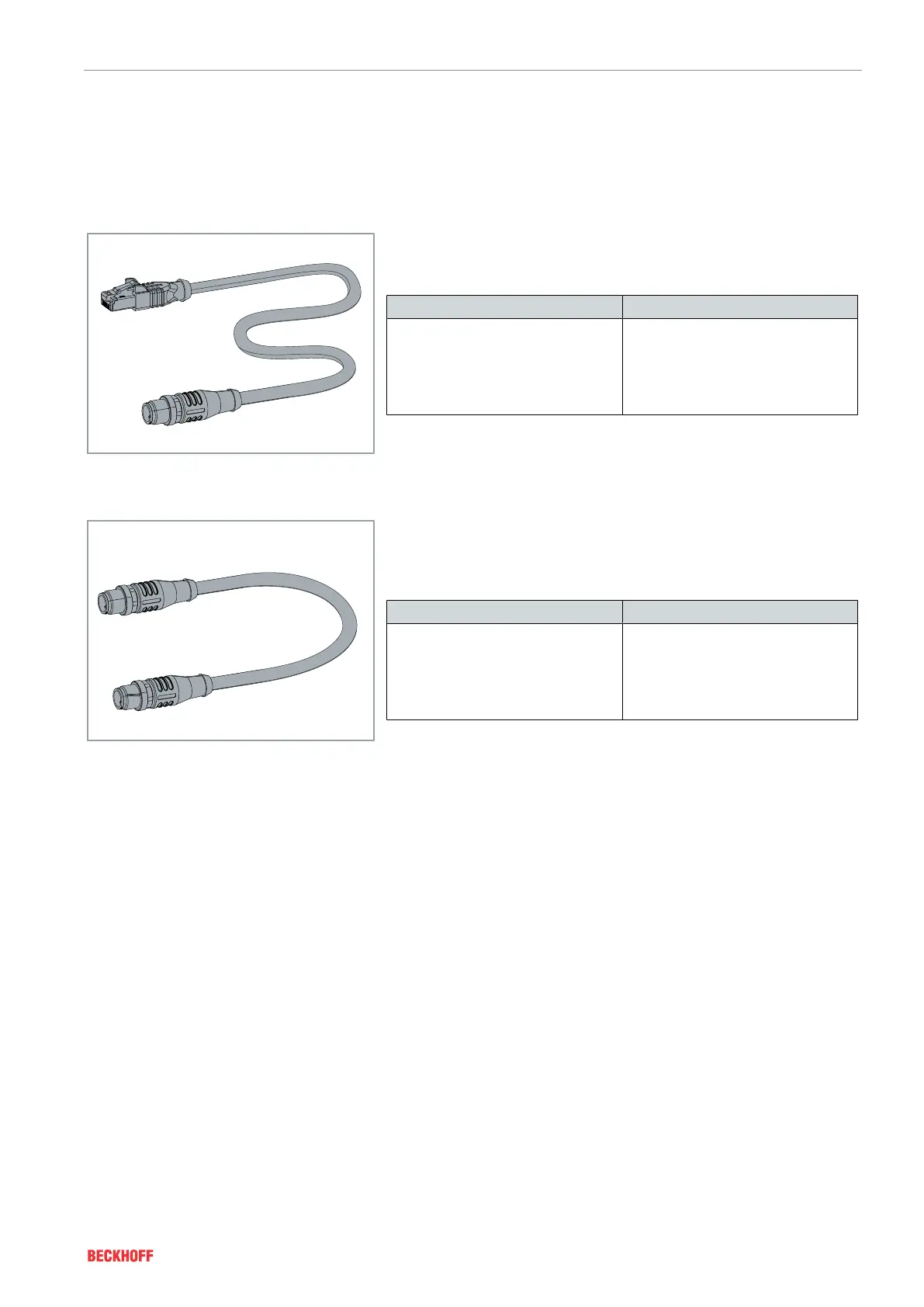

3.3.4EtherCATG cable
Data is exchanged between the tiles and the control cabinet via
EtherCATG cables. The EtherCATG cables are available in the fol-
lowing versions:
ZK1096-8191-0xxx
The cable is used for data exchange between tiles and the control
cabinet and is available in different lengths.
Plug: RJ45 to M12,X-coded
Order number Explanation
ZK1096-8191-0xxx 0xxx - cable length:
0005 - 0.5m cable
…
0100 - 10m cable
ZK1096-8181-0xxx
The cable enables data exchange between tiles and is available in
different lengths. This cable can be used to establish a daisy chain
connection.
Plug: M12 to M12, X-coded
Order number Explanation
ZK1096-8181-0xxx 0xxx - cable length:
0005 - 0.5m cable
…
0100 - 10m cable
