Beckhoff XPlanar User Manual

Mechanical Installation – Part 1: Tiles
52 ─── Version: 1.0XPlanar
4
3
2
1
5

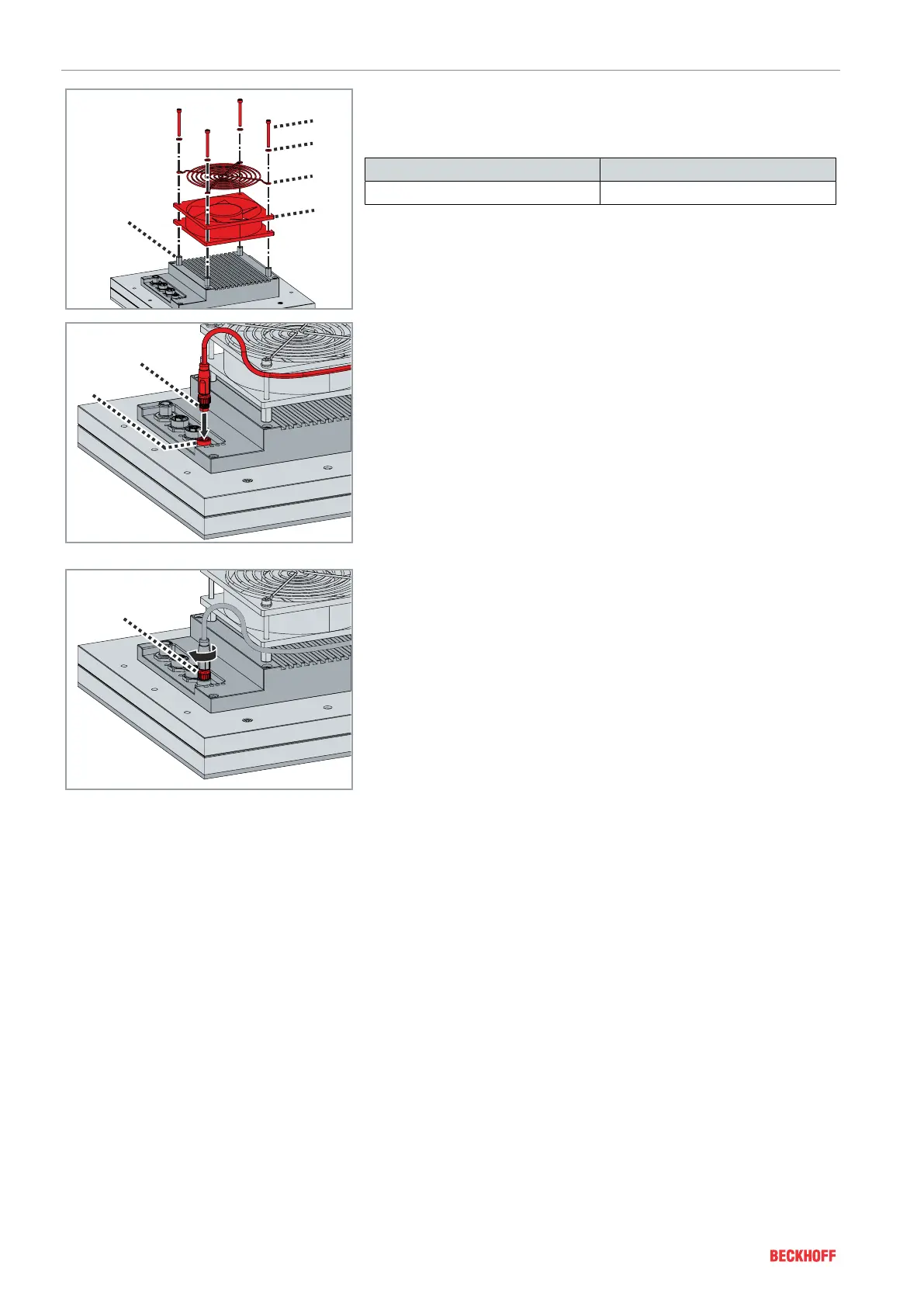

► Screw the fan[1] and the guard grill[2] into the bolts[5] using
four washers[3] and four screws[4]
► Observe tightening torques:
Components Tightening torque [Nm]
Screws, M4x40 3
1
2
► Plug the connector[1] into port X103[2] of the tile
1
► Tighten the locking thread[1] of the connector by turning the
knurl
7.2.3.4Water cooling
As an alternative to fan cooling, it is possible to cool the tiles using a
water-cooled machine bed.
